型番：LLS/QDC1960H　メーカー：Quantel (LD)　商品コード：L000889

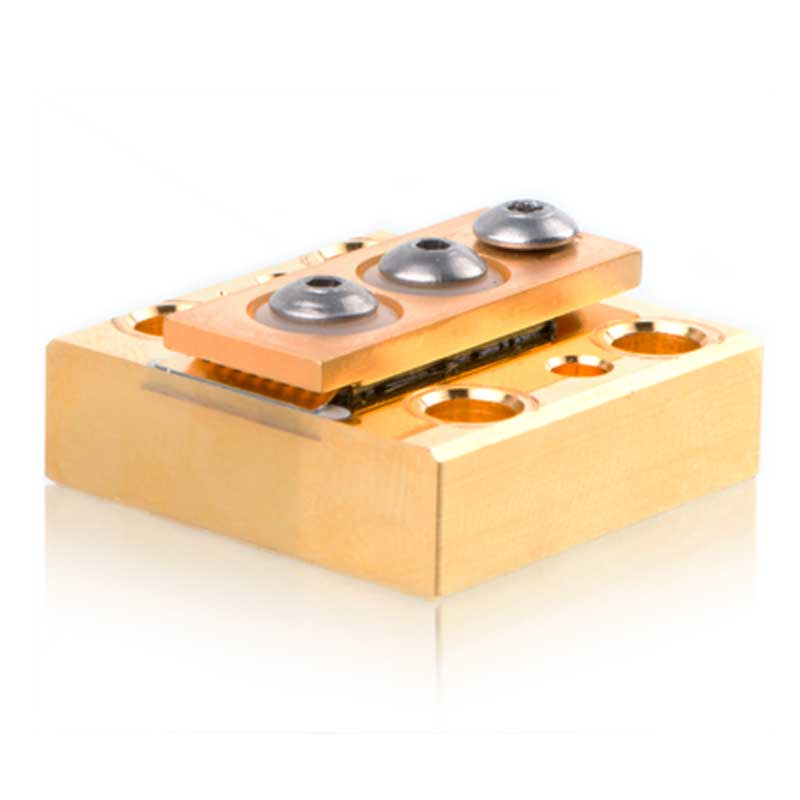

High Power 808nm Laser Diode Bar, Conduction Cooled H-Mounted 60 Watt Array

High Power 808nm Laser Diode Bar, Conduction Cooled H-Mounted 60 Watt Array
High Power 808nm Laser Diode Bar, Conduction Cooled H-Mounted 60 Watt Array
High Power 808nm Laser Diode Bar, Conduction Cooled H-Mounted 60 Watt Array
High Power 808nm Laser Diode Bar, Conduction Cooled H-Mounted 60 Watt Array

メーカー希望小売価格: Request Price 波長: 808nm-808nm
出力: 60W-60W
パッケージ: CS Bar
テクノロジー: High Power Laser Array

Product Overview:
These 808 laser diodes are based on a structure which consists of multiple emitters spaced on a monolithic 1 cm "bar". The bar is mounted with the active zone (P side) toward a conductively cooled sub-mount with low thermal resistance. These lasers offer an output which is centered at 808nm and 60 delivers up to 60 watts of power. These devices from Quantel Lasers offer a high device efficiency of 52% electrical to optical power and come with an optional lens for fast axis collimation of the laser output.
