型番:CB650-5-3(16X45) メーカー:Picotronic GmbH 商品コード:L000837

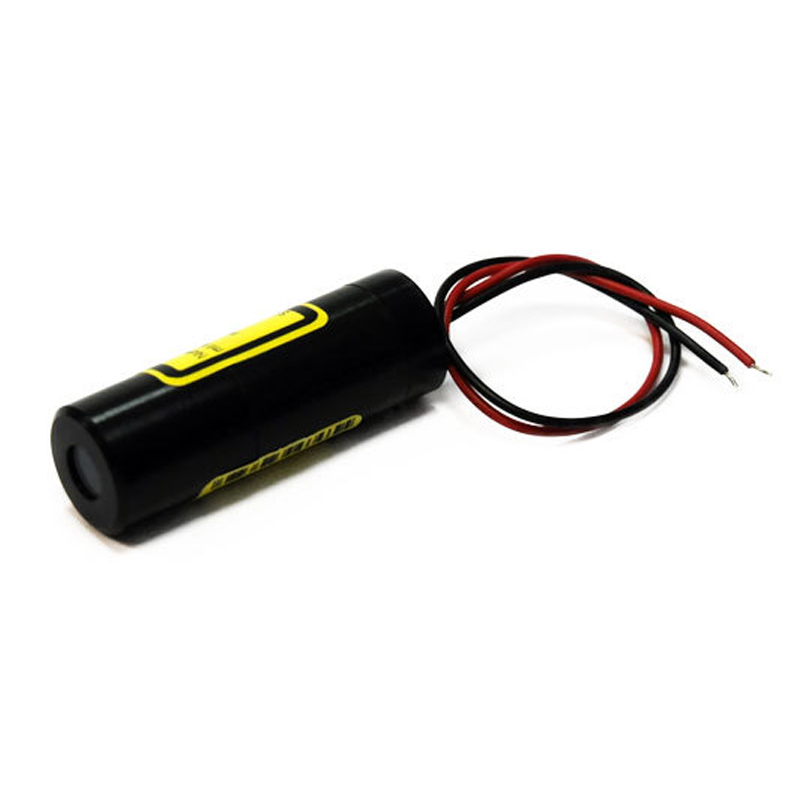

5mW Red Isolated Cross Lasermodule

メーカー希望小売価格: €66,30 波長: 650nm-
出力: 5mW-
電流: 15mA-45mA
電圧: 2.7V-3.3V
パッケージ: MODULE
テクノロジー: Cross Laser
拡がり角: B - 0.3 mrad

Isolated Cross lasermodule, red, 80° +/- 10°, 650nm, 5mW, 3V DC, 16x45mm, class 1

• Operating Voltage 3 V DC
• Laser Class 1
• Low power consumption
• Compact size
• Fixed focus

< Main Parameters (*) >
Wavelength typ 650 nm
Optical Output Power typ 5 mW
Operating Voltage min 2.7 typ 3 max 3.3 V DC
Operating Current min 15 typ 30 max 45 mA
Operating Temperature min -20 max 50 °C
Storage Temperature min -40 max 80 °C

< Main Data >
Warranty 1 years

Technical Parameters
Lifetime > 5,000 h
RoHS yes

< Optical Parameters >
Beam Shape Cross
Laser Class 1
Divergence B - 0.3 mrad
Fan Angle 80 °
Line Thickness <1.5mm@3m
Operating Distance 3 m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus fixed (3000mm)
Verticality < ± 0.5 °

< Electrical Parameters >
Potential of Housing isolated
Power Supply LFNT-3

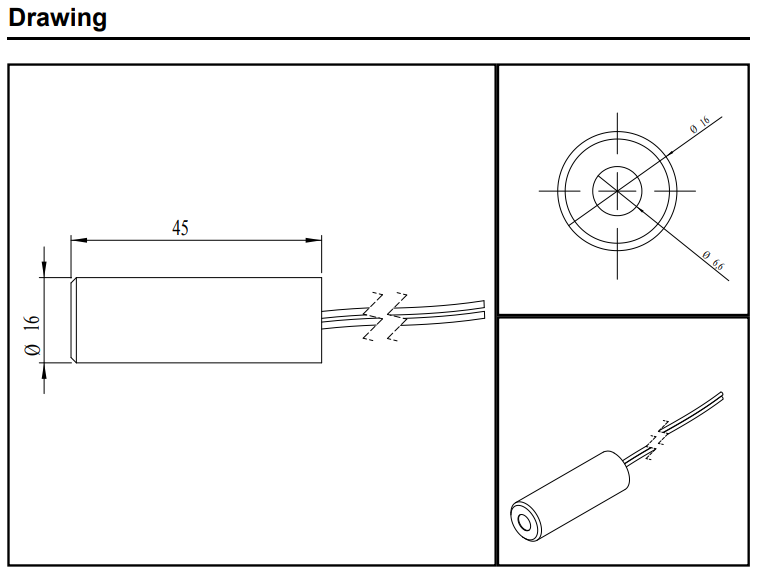

< Mechanical Parameters >
Size Ø16x45 mm
Material aluminium
Cable length 100 mm
Wire type Belden, Typ 1007, 26AWG
Output Aperture 6.8 mm
Housing Color black
Weight 23 g
Stripping of wire 5 mm

(*) Over the complete operating temperature range
