型番:LB635-2.5-3(16X45) メーカー:Picotronic GmbH 商品コード:L000828

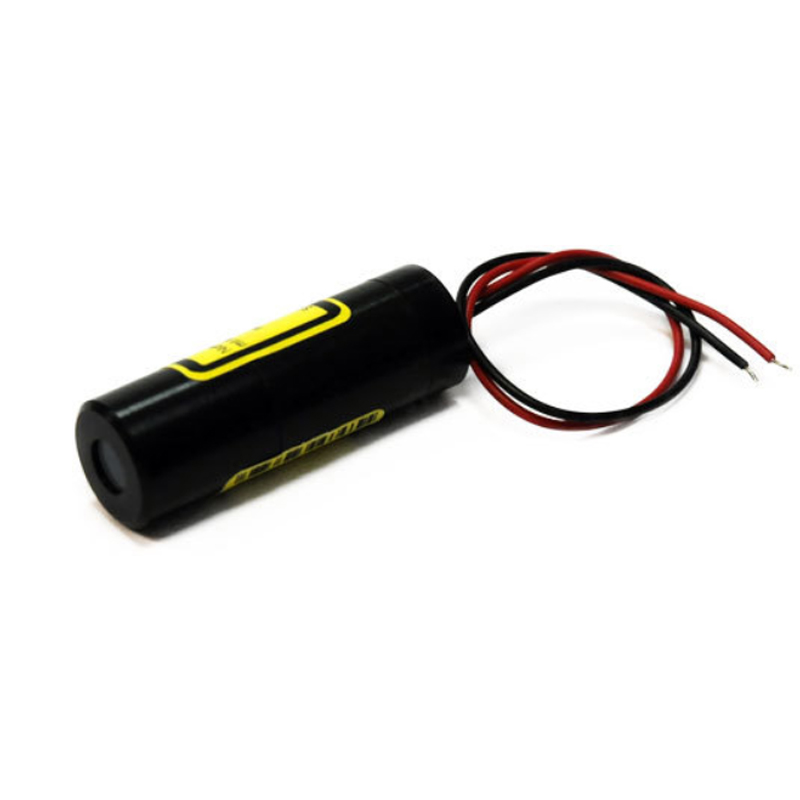

635nm / 2.5mW Red Isolated Line Lasermodule

メーカー希望小売価格: €60,42 波長: 635nm-
出力: 2.5mW-
電流: 20mA-45mA
電圧: 2.7V-3.3V
パッケージ: MODULE
テクノロジー: Line laser
拡がり角: B - 0.3 mrad

Isolated Line lasermodule, red, 90°, 635nm, 2.5mW, 3V DC, 16x45mm, class 1

• Fan angle 90 °
• Laser Class 1
• Operating Voltage 3 V DC
• Fixed focus
• Glas lenses anti reflex coated

< Main Parameters (*) >
Wavelength typ 635 nm
Optical Output Power typ 2.5 mW
Operating Voltage min 2.7 typ 3 max 3.3 V DC
Operating Current min 20 typ 30 max 45 mA
Operating Temperature min -20 max 50 °C
Storage Temperature min -40 max 80 °C

< Main Data >
Warranty 1 years

< Technical Parameters >
Lifetime > 5,000 h
RoHS yes

< Optical Parameters >
Beam Shape Line
Laser Class 1
Divergence B - 0.3 mrad
Fan Angle 90 °
Line Thickness <1.5mm@2
Operating Distance 2 m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus fixed

< Electrical Parameters >
Potential of Housing isolated
Power Supply LFNT-3

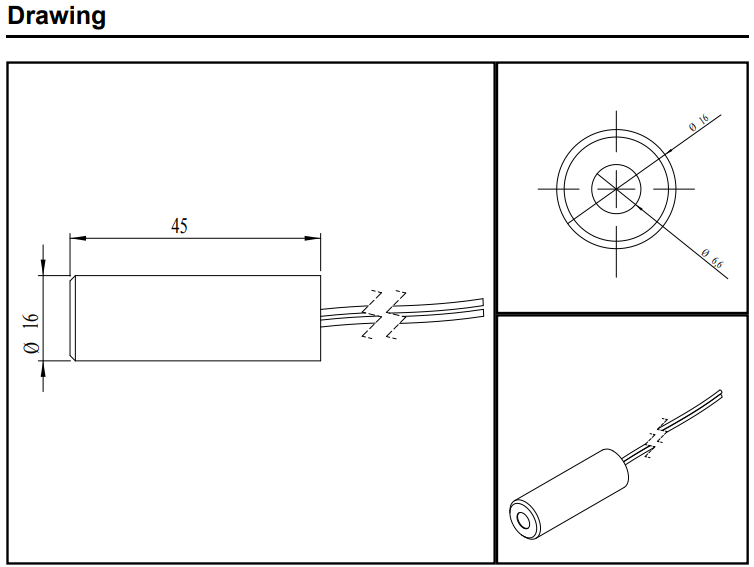

< Mechanical Parameters >
Size Ø16x45 mm
Material aluminium
Cable length 100 mm
Wire type 26AWG, 0,14mm²
Output Aperture 6.8 mm
Housing Color black
Weight 22.7 g
Stripping of wire 5 mm

(*) Over the complete operating temperature range
