型番: メーカー:Thorlabs Inc. 商品コード:L000069

488nm Laser Diode | 25mW Coax

波長: 488nm-488nm
出力: 25mW-25mW
パッケージ: coaxial
テクノロジー: sky blue laser diode

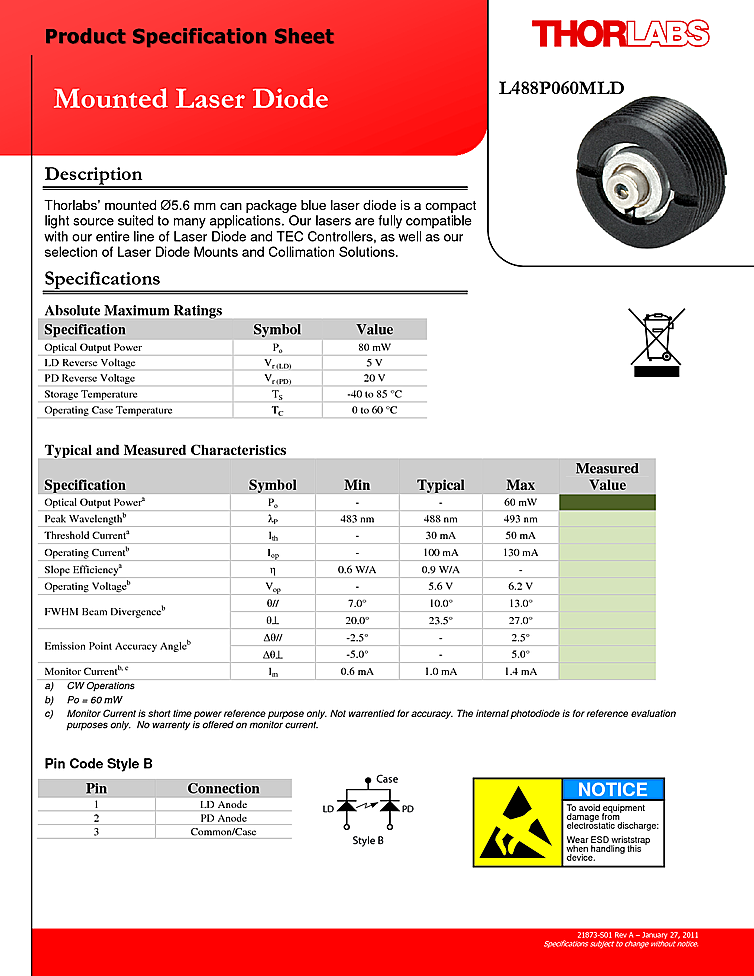

488nm from Thorlabs is a mounted Ø5.6 mm can package sky blue laser diode. Specifications referenced on the attached data sheet include the following maxiumum device ratings. Optical output power at 80 mW, diode reverse voltage at 5 volts and a photodiode reverse voltage of 20V. Storage temperature is listed at -40 to 85 °C with an pperating case temperature of 0 to 60 °C.

価格 地域 代理店
要問い合わせ ソーラボジャパン株式会社
要問い合わせ 京都府 株式会社光響
