型番： メーカー：QD Laser 商品コード：L000542
785nm Laser Diode, 280mW
波長: 785nm-785nm
出力: 280mW-280mW
パッケージ: TO-can
テクノロジー: Fabry-Perot

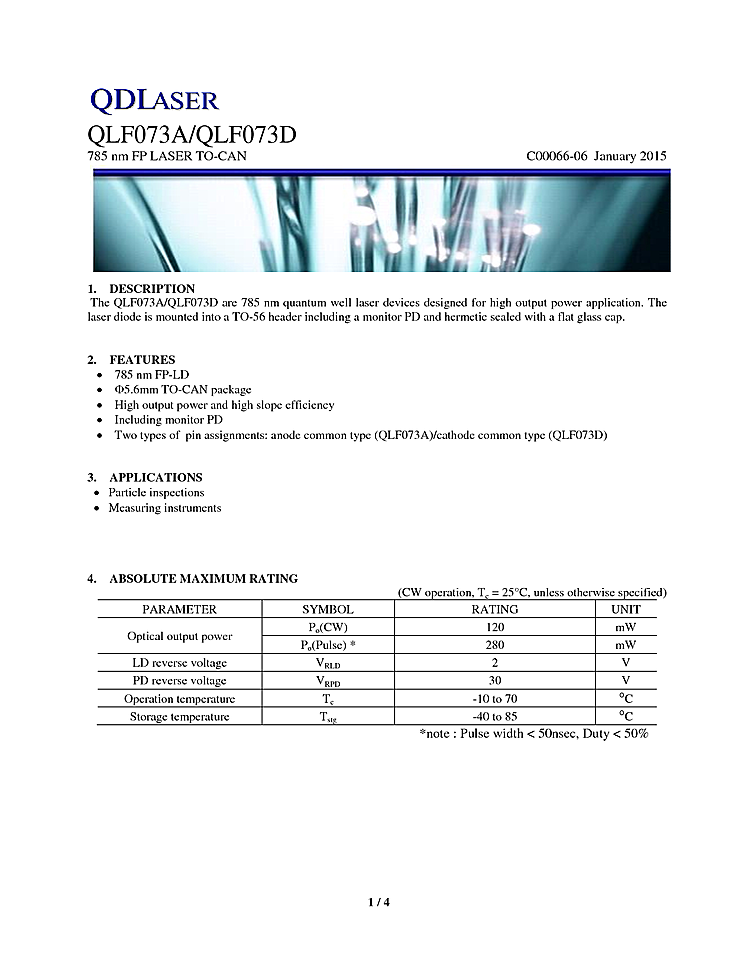

785nm laser diodes from QD Laser are designed for high optical output power applications. These devices are offered in a TO-56 header packaged and include a monitor PD. They are hermetically sealed with a flat glass cap. Applications for these diode lasers include particle inspection and measuring instruments requiring 780nm.
FEATURES:
- 5.6mm TO-CAN package
- High output power and high slope efficiency
- Including monitor PD
- Two types of pin assignments
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
| 要問い合わせ | 京都府 | 株式会社光響 | |
