型番： メーカー：Photodigm, Inc. 商品コード：L000497
DBR Diode Laser | 760nm
波長: 760nm-760nm
出力: 80mW-80mW
パッケージ: COC, TO-can, c-mount
テクノロジー: DBR

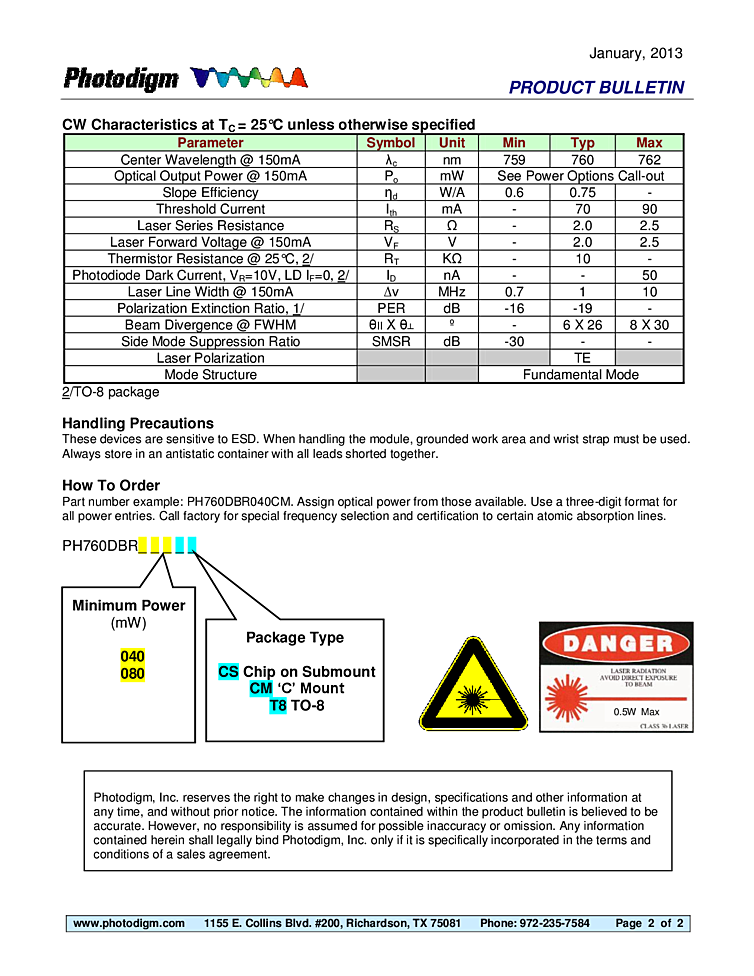

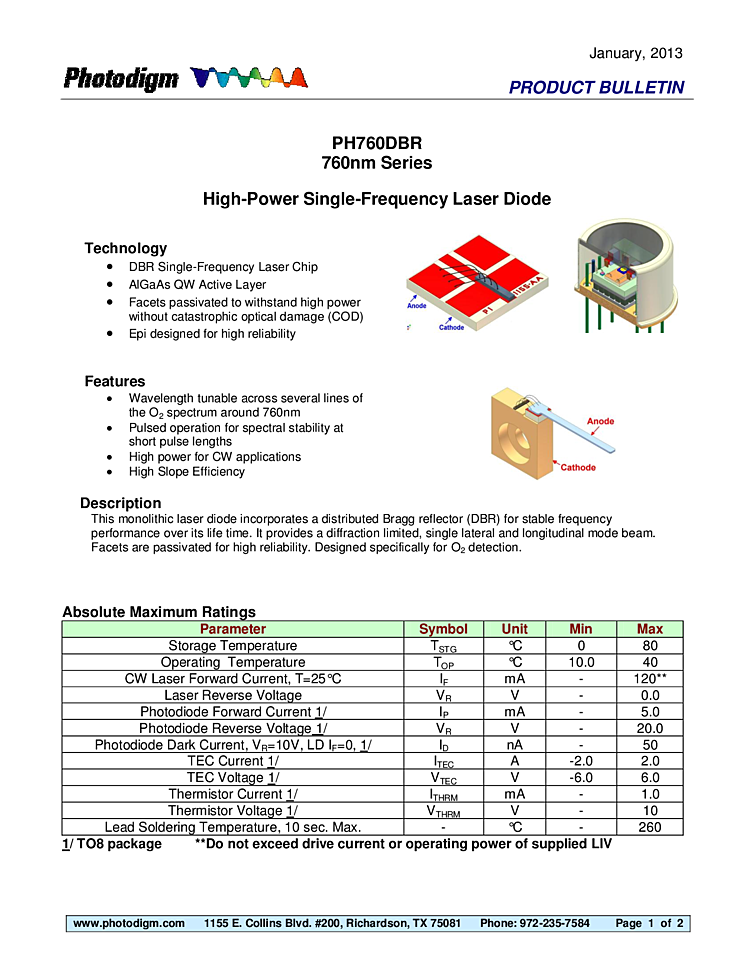

760nm PH760DBR Series High-Power Single-Frequency Laser Diode
This monolithic laser diode incorporates a distributed Bragg reflector (DBR) for stable frequency performance over its life time. It provides a diffraction limited, single lateral and longitudinal mode beam. Facets are passivated for high reliability. Designed specifically for O2 detection.
Technology:
- DBR Single-Frequency Laser Chip
- AlGaAs QW Active Layer
- Facets passivated to withstand high power
- Epi designed for high reliability
Features:
- Wavelength tunable across several lines of O2 spectrum around 760nm
- Pulsed operation for spectral stability at short pulse lengths
- High power for CW applications
- High Slope Efficiency
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
| 要問い合わせ | 株式会社光響 | ||
| 要問い合わせ | オーテックス株式会社 | ||
| 要問い合わせ | 京都府 | 株式会社光響 | |
