型番：　メーカー：Ondax, Inc.　商品コード：L000411

658nm Laser Diode, 35mW

658nm Laser Diode, 35mW
658nm Laser Diode, 35mW
658nm Laser Diode, 35mW
658nm Laser Diode, 35mW

波長: 658nm-658nm
出力: 35mW-35mW
スペクトル幅: < 500kHz
パッケージ: TO-can
テクノロジー: narrow linewidth laser

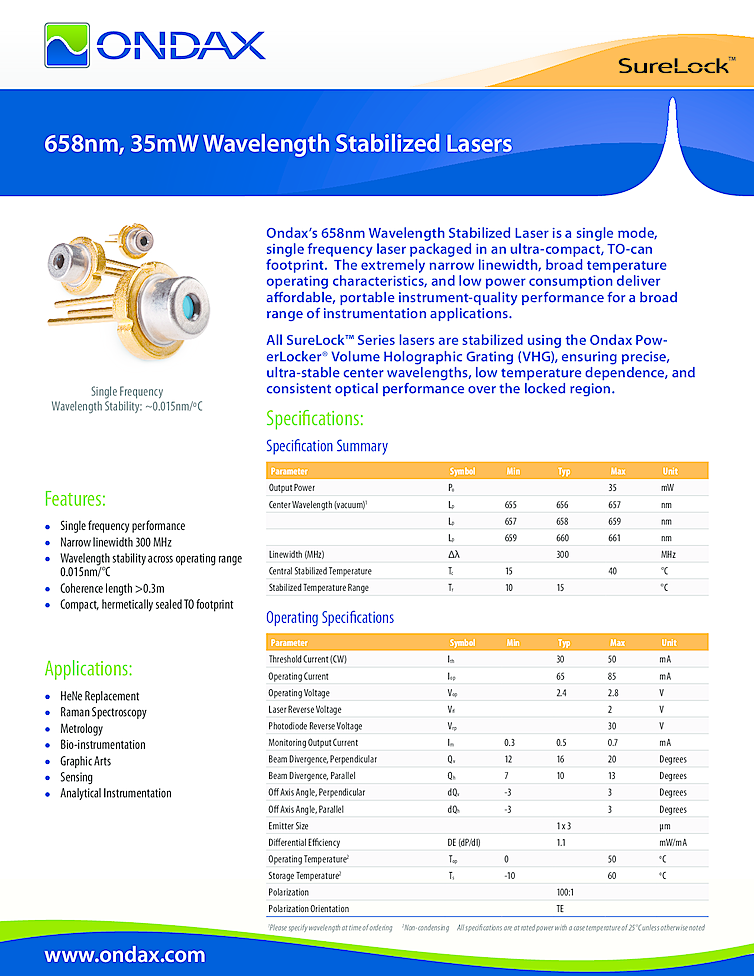

658nm : Ondax’s 658nm Wavelength Stabilized Laser is a single mode, single frequency laser packaged in an ultra-compact, TO-can footprint. The extremely narrow linewidth, broad temperature operating characteristics, and low power consumption deliver affordable, portable instrument-quality performance for a broad range of instrumentation applications. All SureLock™ Series lasers are stabilized using the Ondax PowerLocker® Volume Holographic Grating (VHG), ensuring precise, ultra-stable center wavelengths, low temperature dependence, and consistent optical performance over the locked region.

Features:
• Single frequency performance
• Narrow linewidth 300 MHz
• Wavelength stability across operating range 0.015nm/°C
• Coherence length >0.3m
• Compact, hermetically sealed TO footprint

Key Applications:
• HeNe Replacement
• Raman Spectroscopy
• Metrology
• Bio-instrumentation
• Graphic Arts
• Sensing
• Analytical Instrumentation

For more information about Ondax products and the name of a local representative or distributor, visit www.ondax.com, email sales@ondax.com, or call (626) 357-9600.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 東京都 株式会社ティー・イー・エム
