型番： メーカー：三菱電機株式会社 商品コード：L000409
AlGaInP Semiconductor Laser
波長: 658nm-658nm
出力: 300mW-300mW
パッケージ: TO-can
テクノロジー: n/a

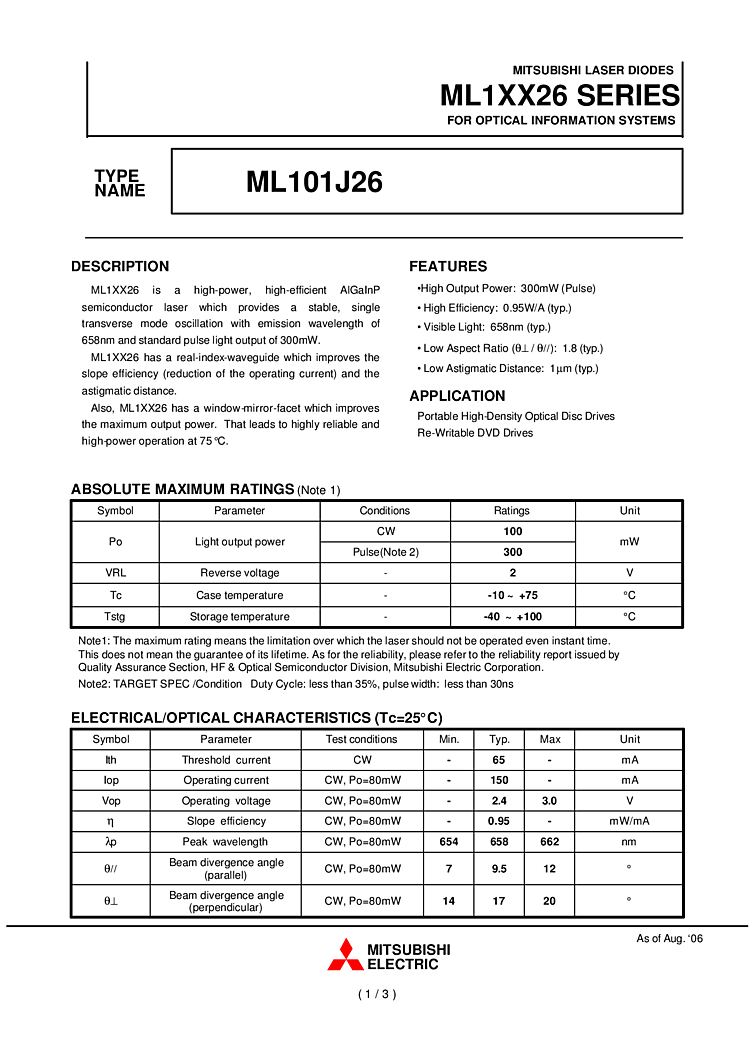

658nm ML1XX26 is a high-power, high-efficient AlGaInP semiconductor laser which provides a stable, single transverse mode oscillation with emission wavelength of 658nm and standard pulse light output of 300mW. ML1XX26 has a real-index-waveguide which improves the slope efficiency (reduction of the operating current) and the
astigmatic distance. Also, ML1XX26 has a window-mirror-facet which improves the maximum output power. That leads to highly reliable and high-power operation at 75 °C.
FEATURES:
- High Output Power: 300mW (Pulse)
- High Efficiency: 0.95W/A (typ.)
- Visible Light: 658nm (typ.)
- Low Aspect Ratio (q^ / q//): 1.8 (typ.)
- Low Astigmatic Distance: 1mm (typ.)
APPLICATINS:
- Portable High-Density Optical Disc Drives
- Re-Writable DVD Drives
