型番：PA-1x-5、PA-2x-100、PA-2x-200　メーカー：Cinogy Technologies　商品コード：L003898

Prism Attenuator

Prism Attenuator
Prism Attenuator

Prism_Attenuator_データシート.pdf

波長: 190nm-2000nm
出力: 5W-200W
材質: Wedge material: Uncoated fused silica
ビーム径: 15mm

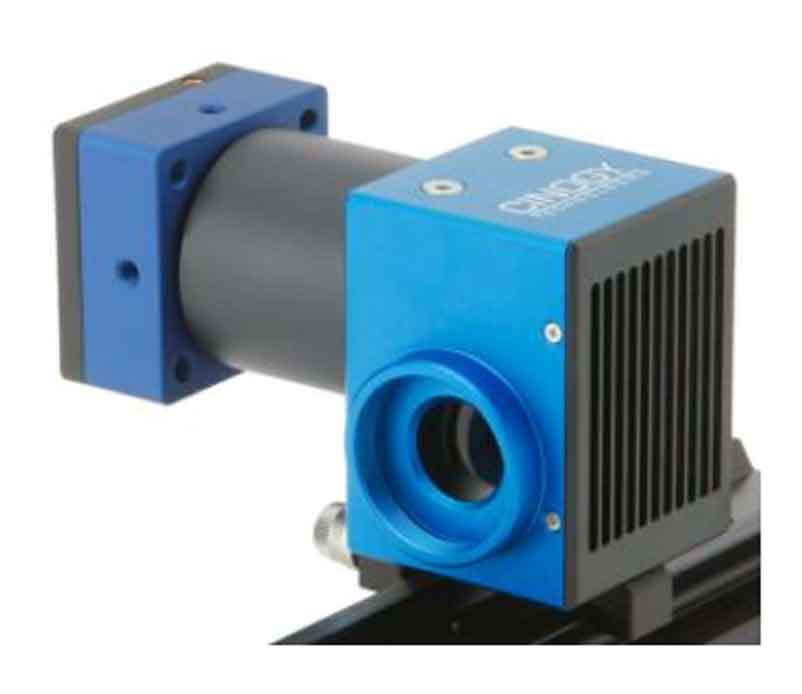

The modular prism attenuator is an add-on to the standard CinCam Beam Profiler. It is based on two uncoated fused silica wedges with polarization-independent design. The prism attenuator allows pre-attenuation of high intensive laser beams. The technical principle is based on the polarization effect by reflection on an optical surface.

The prism attenuator can be used up to intensities of 2GW/cm2 for pulse laser and 20kW/cm2 for cw laser. The prism attenuator can be combined with neutral density filters for final power adjustment. The high performance optical design allows precise beam attenuation.
