メーカー希望小売価格: $134.00 電流: -3A
エネルギー安定性: 200 ppm (1 Hour Current Stability at ambient 25°C)

【Features】

Small Size: 1.30" X 1.28" X 0.313"
Slow Start Laser Diode Protection
TTL Compatible Shutdown Pin
Adjustable Laser Diode Current Limit
Over temperature output shutdown
Up to 3.0 A CW laser diode current
2.5 times lower noise than WLD3343-3A (18 µA)
Constant Current Mode Only
Voltage Controlled Setpoint
Bandwidth 2 MHz (CC, sine wave)

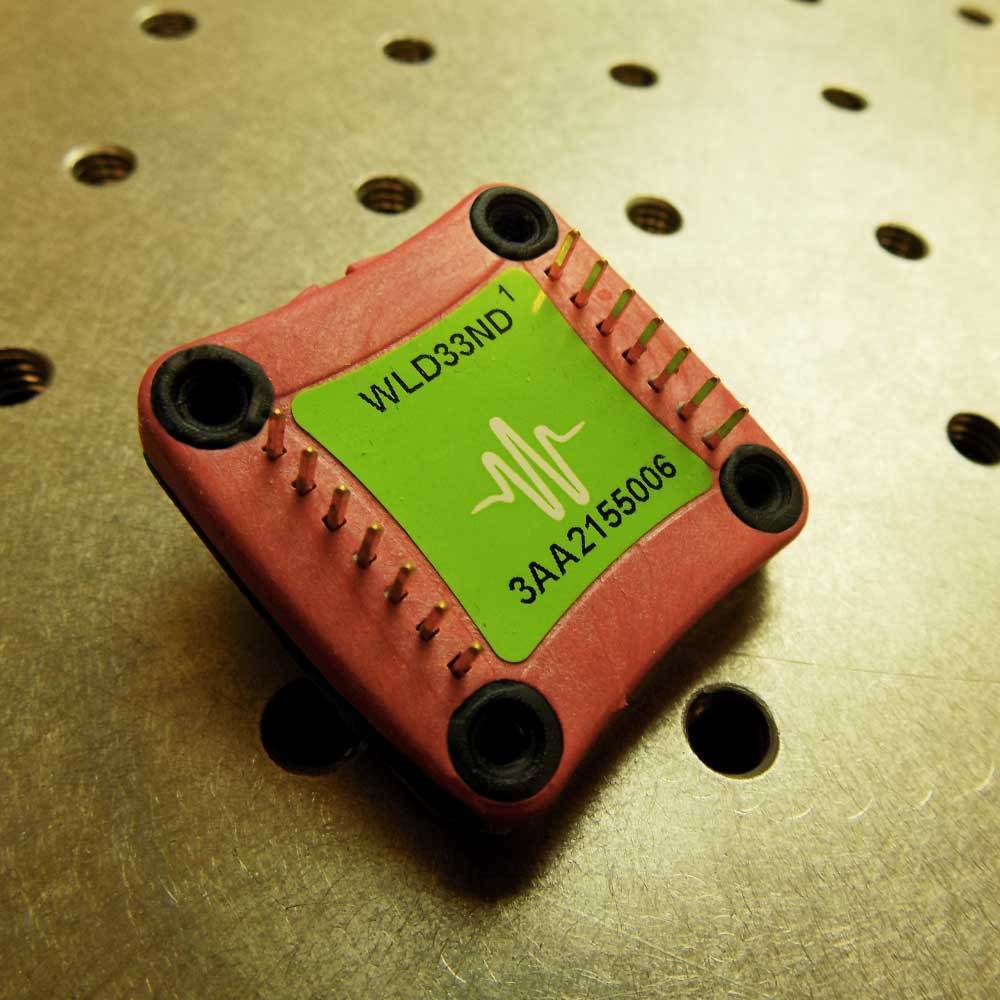

The WLD33ND-3L is a general purpose laser diode driver that maintains precision laser diode current (Constant Current mode) using electronics that are compatible with any laser diode type. It is designed for lower noise operation compared to the standard WLD33ND-3A. It delays and slowly ramps the current for maximum protection. Supply up to 3.0 A of current to your laser diode from a single +5 V power source. An evaluation board is available to simplify prototyping: WLD33ND-3AEV.

An internal thermostat shuts down the WLD safely if the device temperature exceeds 105°C. This device operates to 45°C ambient temperature. Remotely enable or disable current. Current range is scaled by an external resistor.

For Constant Power mode, 2.2 or 3 A operation, the WLD33ND and WLD33ND-3A are available. To drive with lower noise in Constant Current Mode only, the WLD3343-2L drives up to 2.2 A. A circuit calculator tool speeds selection of external component values (see Design Tools tab). Heatsinking solutions to use the WLD33ND-3L at full current are available.

This laser diode driver is ideal for applications where space is tight. It is widely used in electro-optic qualification, Raman spectroscopy, medical diagnostic equipment, range finders, eye-safe atmospheric lidar and on research benches.

Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.
