型番：30.070.00012、30.070.00054　メーカー：Artifex Engineering　商品コード：L003787

OPM150 VIGA FC/SMA-Detector

OPM150 VIGA FC/SMA-Detector
OPM150 VIGA FC/SMA-Detector
OPM150 VIGA FC/SMA-Detector
OPM150 VIGA FC/SMA-Detector
OPM150 VIGA FC/SMA-Detector
OPM150 VIGA FC/SMA-Detector
OPM150 VIGA FC/SMA-Detector
OPM150 VIGA FC/SMA-Detector

波長: 400nm-1600nm
出力: 2nW-12mW

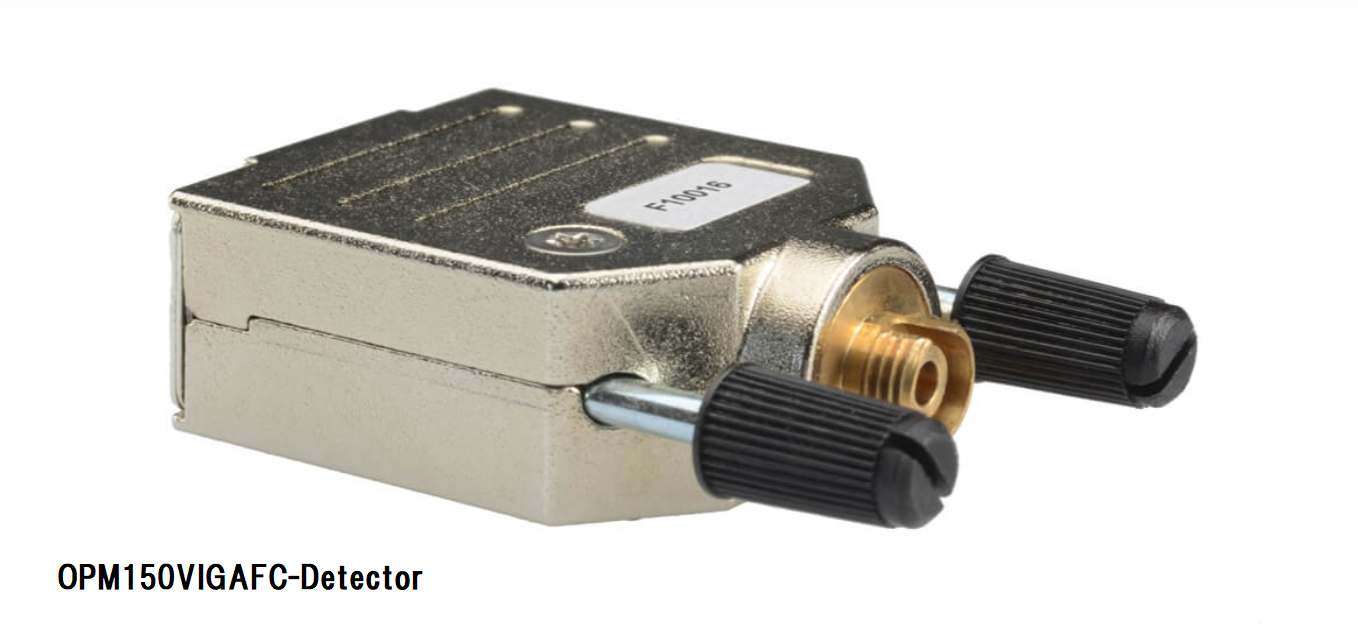

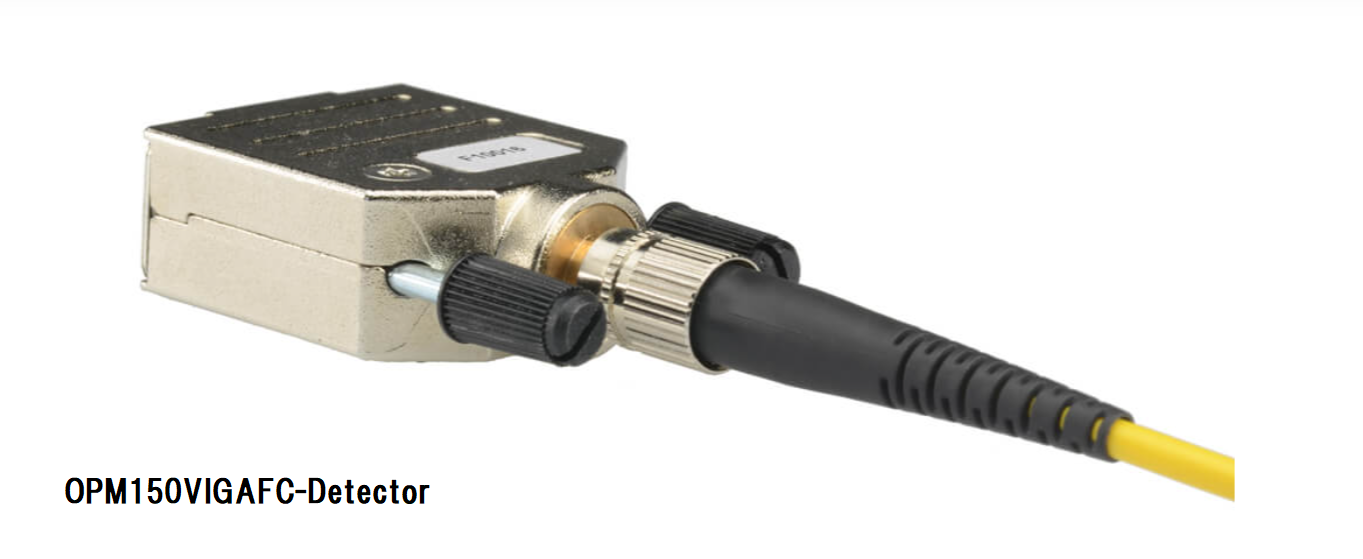

・OPM150VIGAFC-Detector (30.070.00012): FC fibre connector
　This compact unit is designed specifically for measurement of power out of FC-connectorized fibres only.

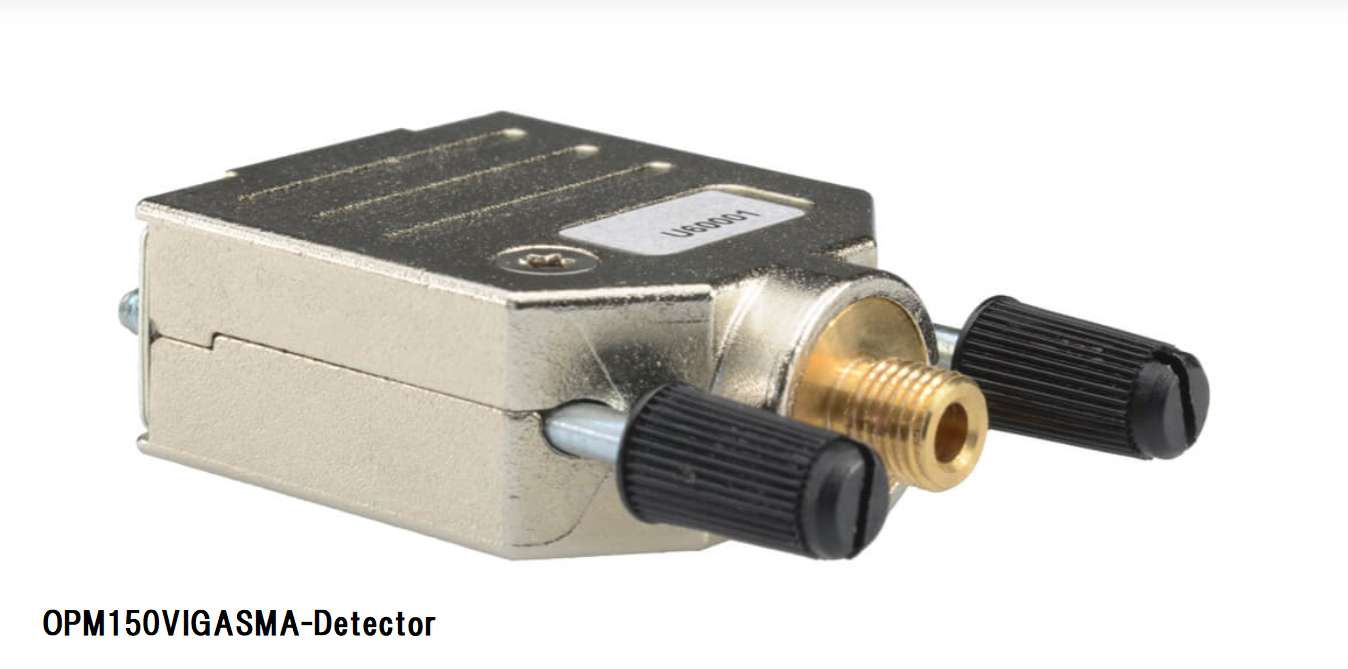

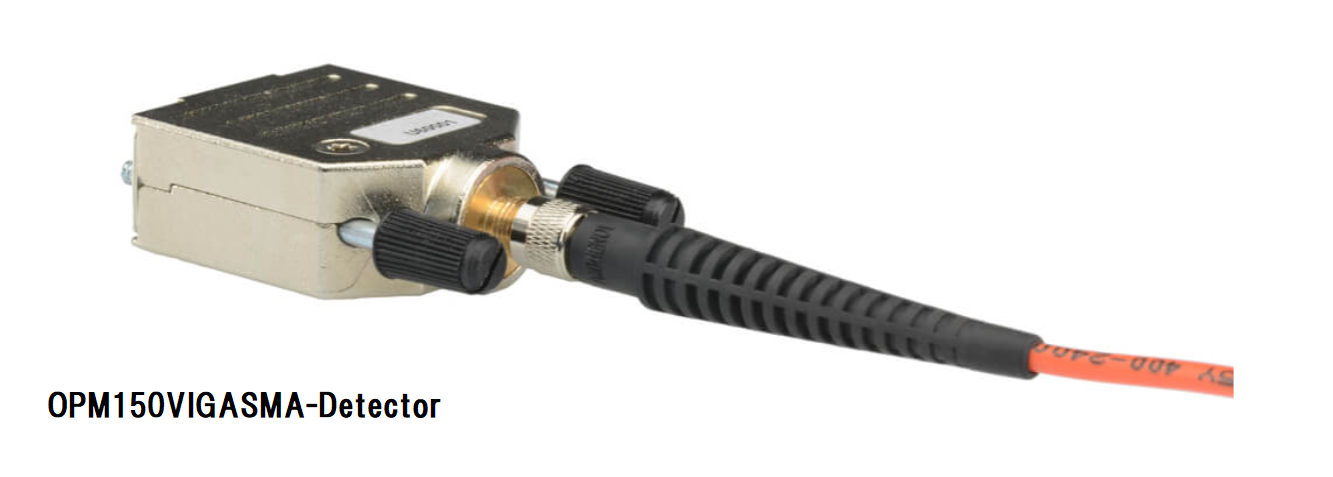

・OPM150VIGASMA-Detector (30.070.00054): SMA Fibre connector
　This compact unit is designed specifically for measurement of power out of SMA-connectorized fibres only.


< Description >
An InGaAs photodiode detector head, compatible with the OPM150 series of optical power meter. The special design of the material gives high sensitivity down to 400nm. The fibre receptacle, photodetector and calibration memory chip are all contained in the connector body. When connected to the OPM150 base unit, each head is automatically recognized and its individual calibration data are uploaded to the system.


< Specifications >
Wavelength range: 400-1600nm
Maximum fibre core: ø550µm at NA 0.22
Minimum measureable power: 2nW (at 1550nm)
Maximum measureable power: 12mW (at 1550nm) with Base Module 30.070.00002, 7mW (at 1550nm) with Base Module 30.070.00058
Maximum outer dimensions: 47.5 x 31.3 x 14.8mm

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 京都府 株式会社光響
