型番:30.070.00010、30.070.00011 メーカー:Artifex Engineering 商品コード:L003784

OPM150 G5/G10-Detector

波長: 800nm-1550nm
出力: 1μW-8mW

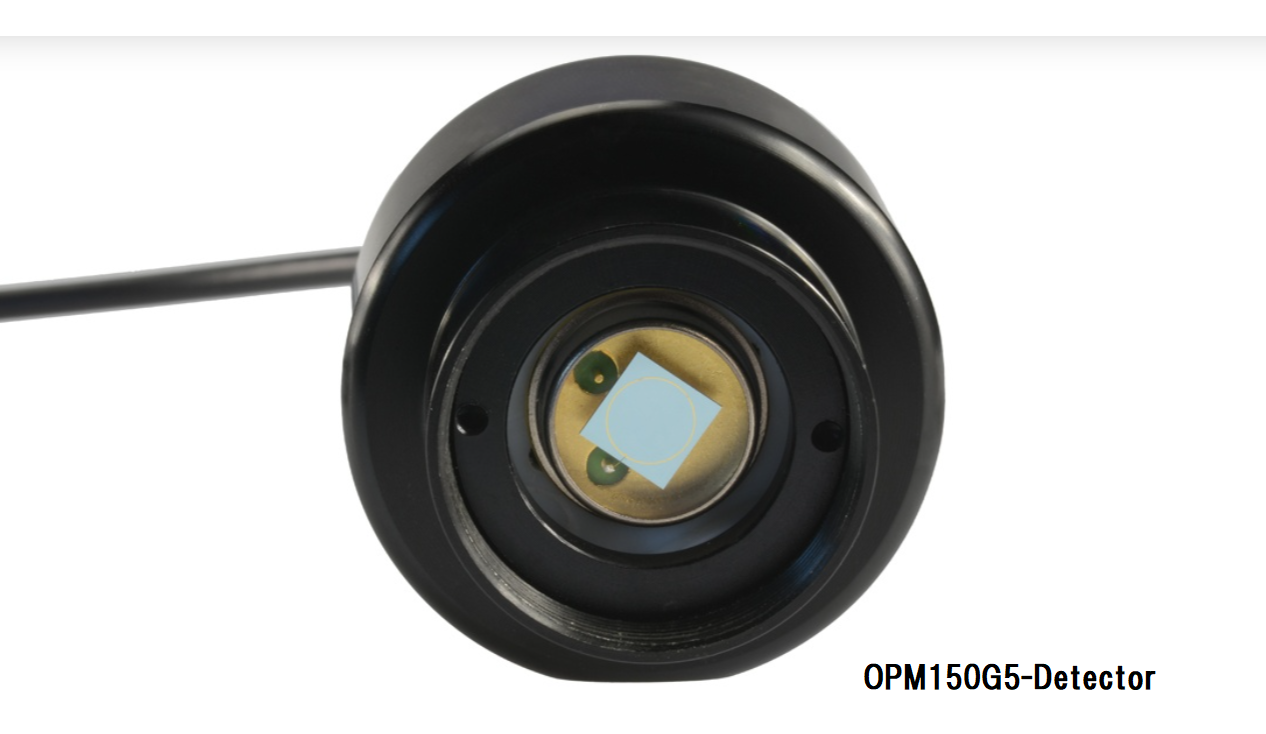

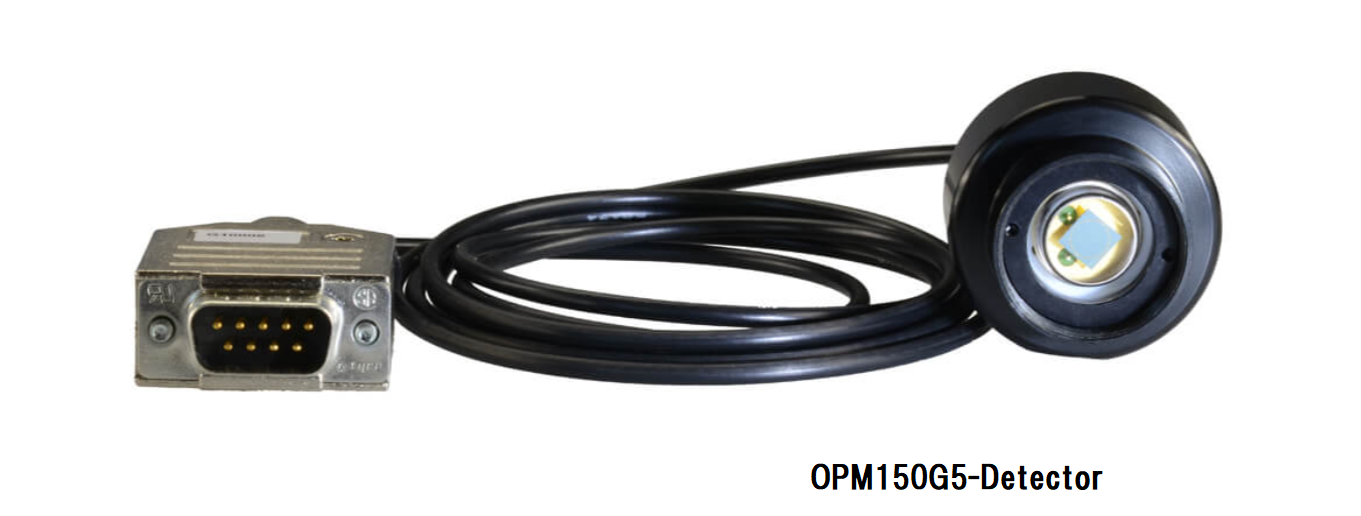

・OPM150G5-Detector (30.070.00010)
 A mid size area germanium photodiode detector head, compatible with the OPM150 series of optical power meter.

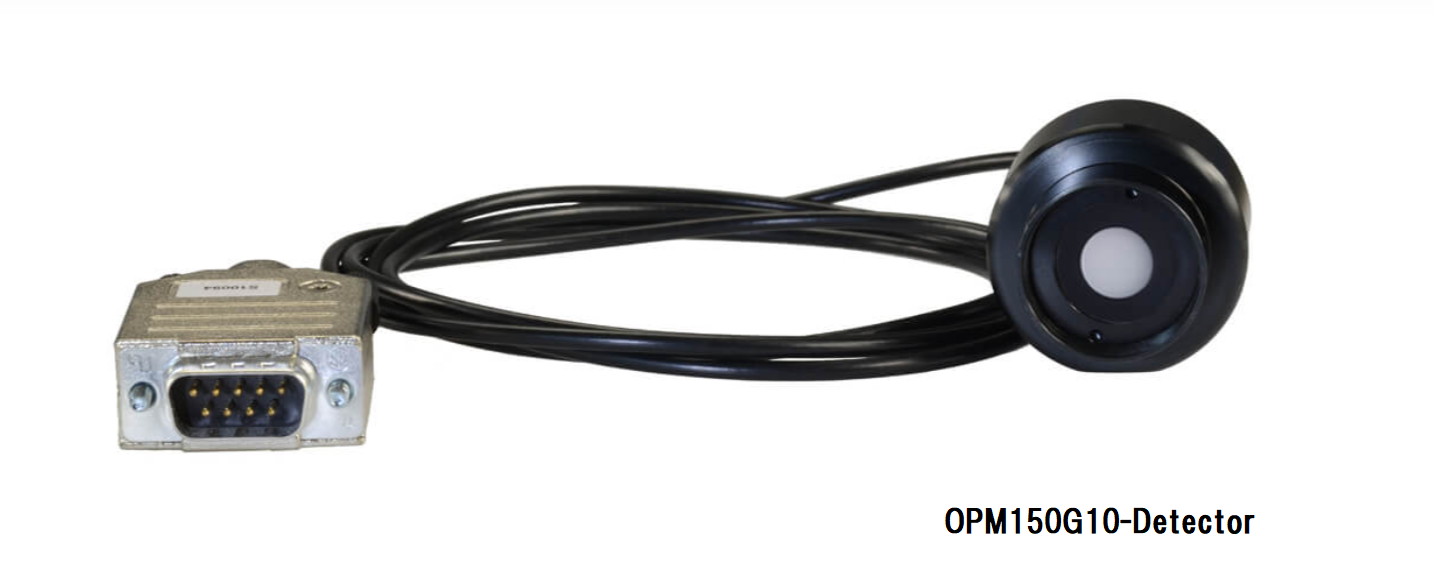

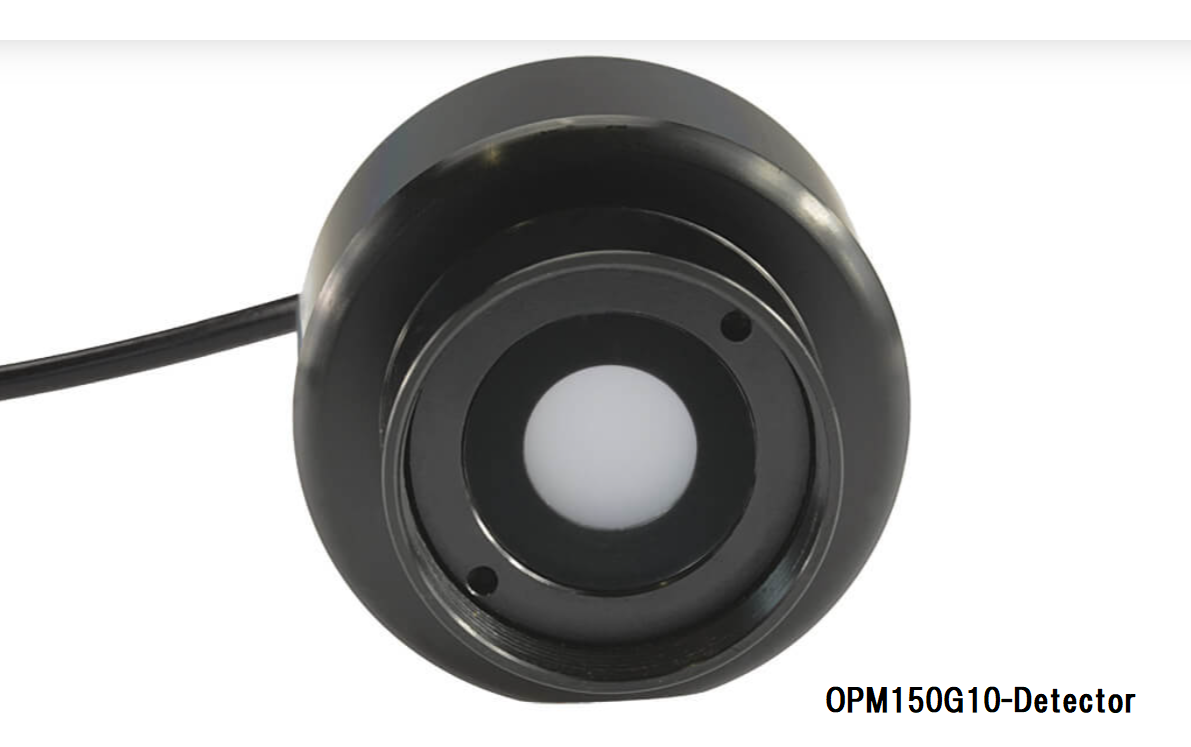

・OPM150G10-Detector (30.070.00011)
 A large area germanium photodiode detector head, compatible with the OPM150 series of optical power meter.


< Description >
The head mechanics are designed to be compatible with various common optomechanics systems to allow simple integration. Various adapters for tube systems, camera objectives and optical fibres are available to further enhance the ease of integration. When connected to the OPM150 base unit, each head is automatically recognized and its individual calibation data are uploaded to the system. In addition, the user may load up to 5 separate filter curves. Thus, the dynamic range and functionality of the unit can be expanded while ensuring proper calibration.


< Specifications >
Wavelength range: 800-1550nm
Sensitive area: ø 5mm
Minimum measureable power: 1µW (at 1550nm)
Maximum measureable power: 8mW (at 1550nm) with Base Module 30.070.00002, 4mW (at 1550nm) with Base Module 30.070.00058
Maximum outer dimensions: ø 30mm x 30mm


< Accessories >
Calibrated diffuse reflecting attenuators: OD1, OD2
Adapters for tube systems
Adapters for fibre inputs: FC, SMA, LC, ø 1.25 ferrule
OPM150G10: Aperture reducer: ø 7mm (standard iris aperture)

価格 地域 代理店
要問い合わせ 京都府 株式会社光響
