型番:P763/01_2 メーカー:PrioLas GmbH 商品コード:L003733
波長: 762nm-764nm
出力: 0.3mW-
電流: -2.0mA
電圧: 2.0V-
拡がり角: 10°-25°

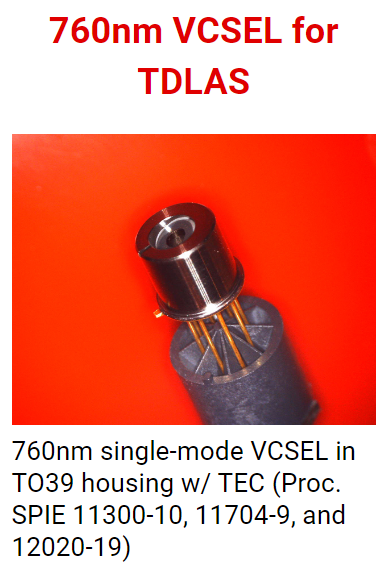

< 760nm single-mode VCSEL for TDLAS Oxygen sensing >
PrioLas' 760nm single-mode VCSEL are designed for oxygen sensing by Tunable Diode Laser Absorption Spectroscopy (TDLAS) and operate over a wide operating temperature range.
The typical wavelength can be chosen between 759nm and 766nm @2.0mA, 20°C. The wavelength tolerance is specified at +/-1 nm.
・763 nm single-mode VCSEL
・2 nm tuning range
・Designed for TDLAS application
・ESD protection built in
