型番:CB635-5-3-F(20X73)60DEG メーカー:Picotronic GmbH 商品コード:L003620

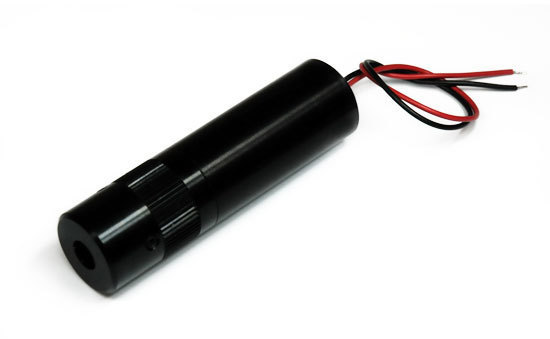

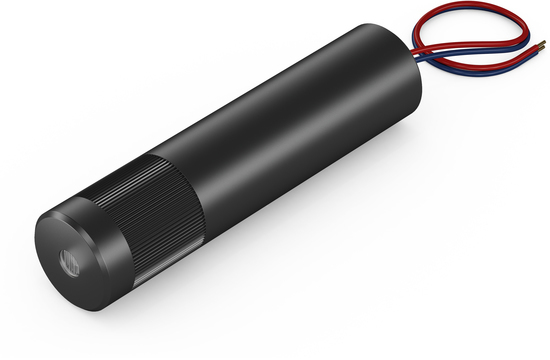

5mW Red Focusable Isolated Cross Lasermodule (60DEG)

メーカー希望小売価格: €120,08 波長: 635nm-
出力: 5mW-
電流: 25mA-65mA
電圧: 2.7V-3.3V
パッケージ: MODULE
テクノロジー: Cross Laser
拡がり角: B - 0.3 mrad

Focusable isolated cross lasermodule, red, 60°, 635nm, 5mW, 3V DC, 20x73mm, class 1

• Operating Voltage 3 V DC
• Laser Class 1
• Adjustable focus
• Compact size
• Fan angle 60 °

< Main Parameters (*) >
Wavelength typ 635 nm
Optical Output Power typ 5 mW
Operating Voltage min 2.7 typ 3 max 3.3 V DC
Operating Current min 25 typ 45 max 65 mA
Operating Temperature min -20 max 50 °C
Storage Temperature min -40 max 80 °C

< Main Data >
Warranty 1 years

< Technical Parameters >
Lifetime > 5,000 h
RoHS yes

< Optical Parameters >
Beam Shape Cross
Laser Class 1
Divergence B - 0.3 mrad
Fan Angle 60 °
Operating Distance 3 m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus adjustable
Verticality < ± 0.5 °

< Electrical Parameters >
Potential of Housing isolated
Power Supply LFNT-3

< Mechanical Parameters >
Size Ø20x73 mm
Material aluminium
Cable length 100 mm
Wire type 26AWG, 0,14mm²
Output Aperture 7 mm
Housing Color black
Weight 54 g
Stripping of wire 5 mm

(*) Over the complete operating temperature range
