型番:CA532-10-3(20X80) メーカー:Picotronic GmbH 商品コード:L003612

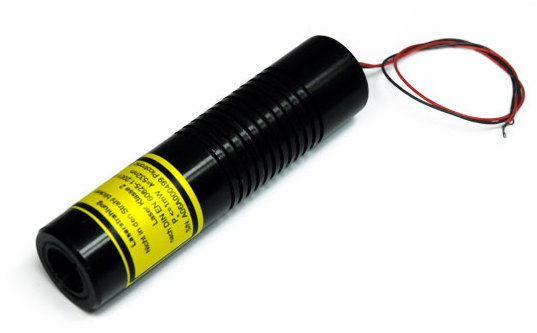

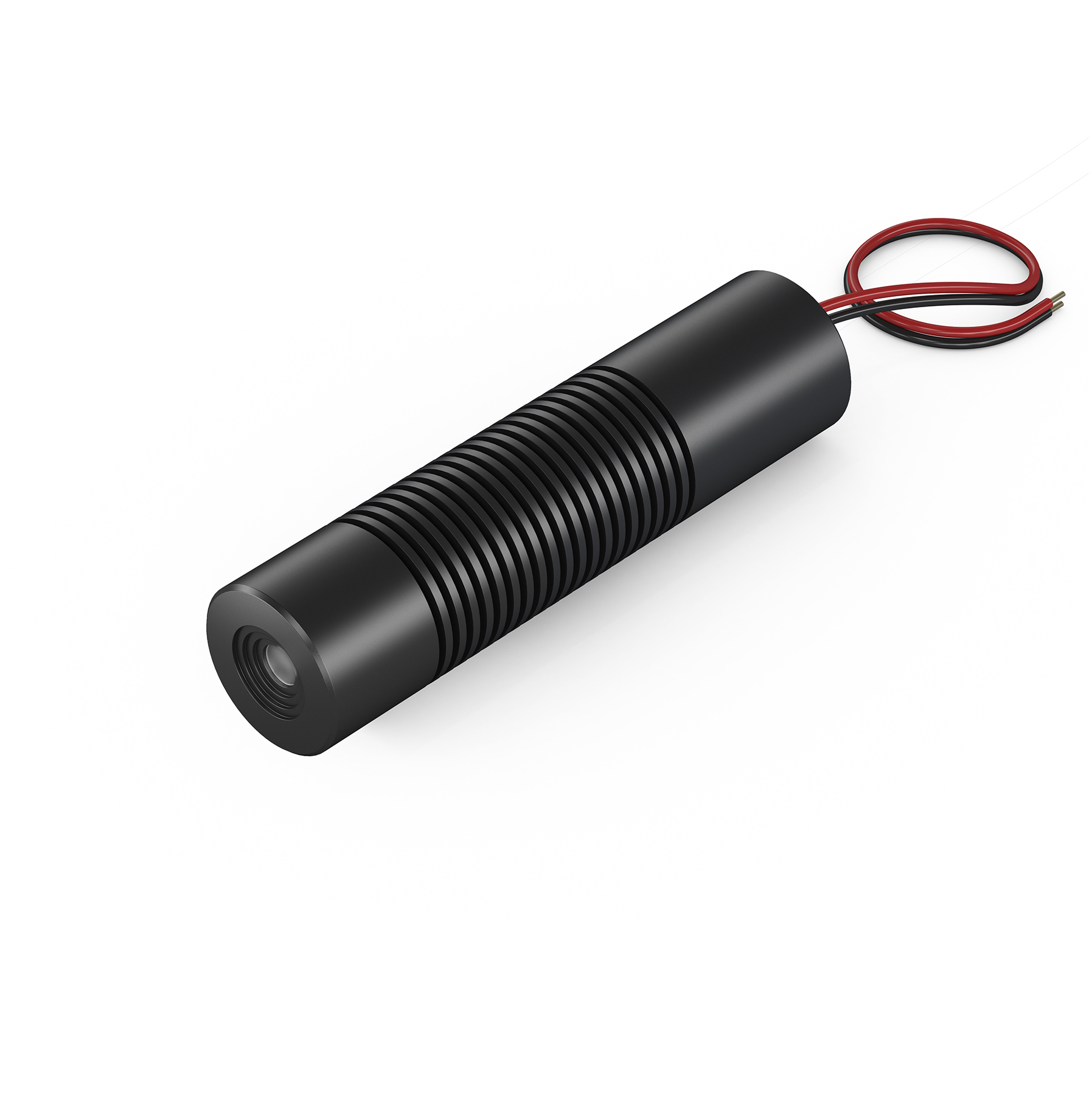

10mW Green Cross Lasermodule

メーカー希望小売価格: €265,46 波長: 532nm-
出力: 10mW-
電流: 100mA-400mA
電圧: 2.7V-3.3V
パッケージ: MODULE
テクノロジー: Cross Laser
拡がり角: 0.2 mrad

Cross lasermodule, green, 90°, 532nm, 10mW, 3V DC, 20x80mm, class 1M

• Glas lenses anti reflex coated
• Operating Voltage 3 V DC
• Laser Class 1
• Uniform line thickness
• Image processing

< Main Parameters (*) >
Wavelength typ 532 nm
Optical Output Power typ 10 mW
Operating Voltage min 2.7 typ 3 max 3.3 V DC
Operating Current min 100 typ 220 max 400 mA
Operating Temperature min 15 max 30 °C
Storage Temperature min -40 max 80 °C

< Main Data >
Warranty 1 years

< Technical Parameters >
Lifetime > 5,000 h
RoHS yes

< Optical Parameters >
Beam Shape Cross
Laser Class 1
Divergence 0.2 mrad
Fan Angle 90 °
Line Thickness <1.5mm@3m
Operating Distance 5 m
Optics glass lens AR coated
Beam Mode TEM00
Laser technology Solid State (YVO4+KTP)
Focus fixed (3000mm)
Warm up time < 15 min
Verticality < ± 0.5 °

< Electrical Parameters >
Potential of Housing isolated
Power Supply LFNT-3

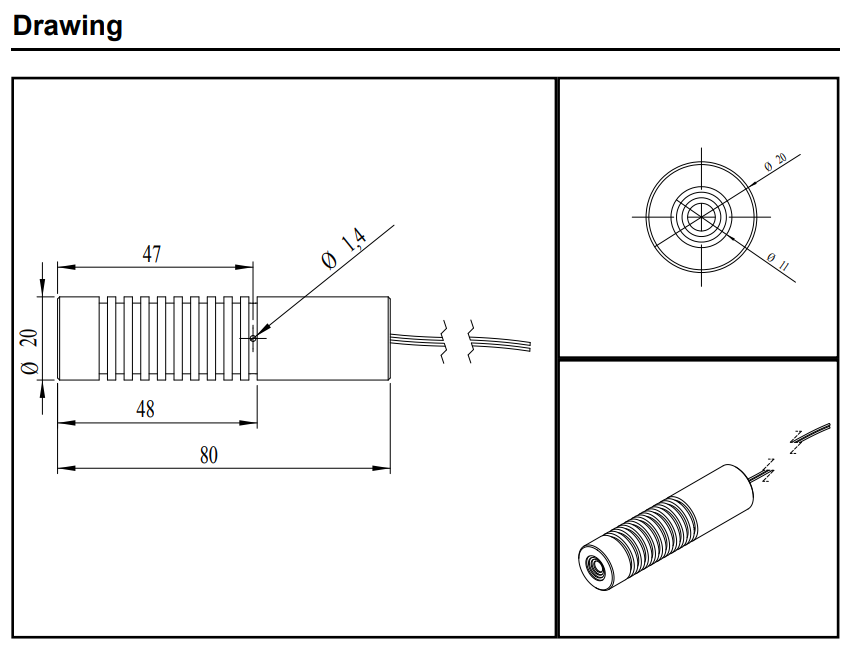

< Mechanical Parameters >
Size Ø20x80 mm
Material aluminium
Cable length 100 mm
Wire type 26AWG, 0,14mm²
Output Aperture 5 mm
Housing Color black
Weight 57 g
Stripping of wire 5 mm

(*) Over the complete operating temperature range
