型番:CA532-5-24(20X80) メーカー:Picotronic GmbH 商品コード:L003610

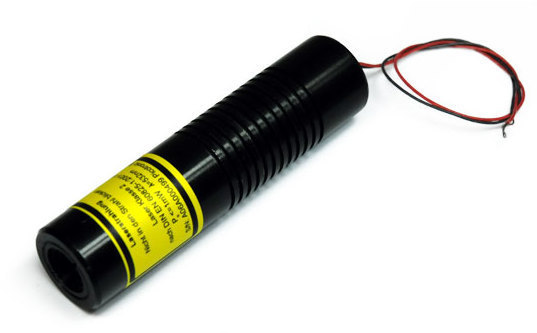

5mW Green Isolated Cross Lasermodule

メーカー希望小売価格: €244,45 波長: 532nm-
出力: 5mW-
電流: 13mA-30mA
電圧: 21.6V-26.4V
パッケージ: MODULE
テクノロジー: Cross Laser
拡がり角: 0.2 mrad

Isolated cross lasermodule, green, 90°, 532nm, 5mW, 24V DC, 20x80mm, class 1

• Operating Voltage 24 V DC
• Laser Class 1
• Fan angle 90 °
• Uniform line thickness
• Fixed focus

< Main Parameters (*) >
Wavelength typ 532 nm
Optical Output Power typ 5 mW
Operating Voltage min 21.6 typ 24 max 26.4 V DC
Operating Current min 13 typ 20 max 30 mA
Operating Temperature min 15 max 30 °C
Storage Temperature min -40 max 80 °C

< Main Data >
Warranty 1 years

< Technical Parameters >
Lifetime > 5,000 h
RoHS yes

< Optical Parameters >
Beam Shape Cross
Laser Class 1
Divergence 0.2 mrad
Fan Angle 90 °
Line Thickness <1.5mm@3m
Operating Distance 3 m
Optics glass lens AR coated
Beam Mode TEM00
Laser technology Solid State (YVO4+KTP)
Focus fixed (3000mm)
Warm up time < 15 min
Verticality < ± 0.5 °

< Electrical Parameters >
Potential of Housing isolated

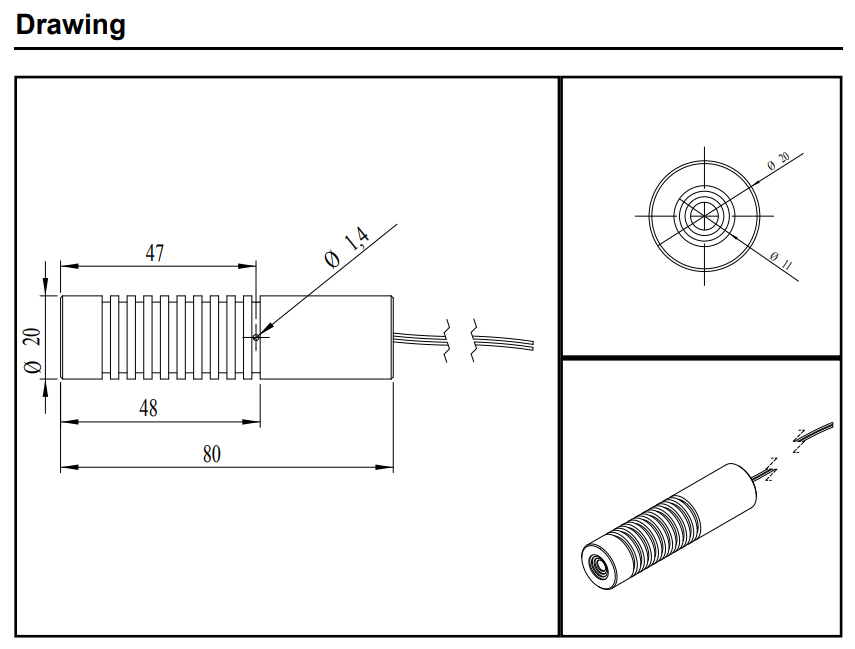

< Mechanical Parameters >
Size Ø20x80 mm
Material aluminium
Cable length 100 mm
Wire type Belden, Typ 1007, 26AWG
Output Aperture 5 mm
Housing Color black
Weight 62 g
Stripping of wire 5 mm

(*) Over the complete operating temperature range
