出力: 25mW-200mW

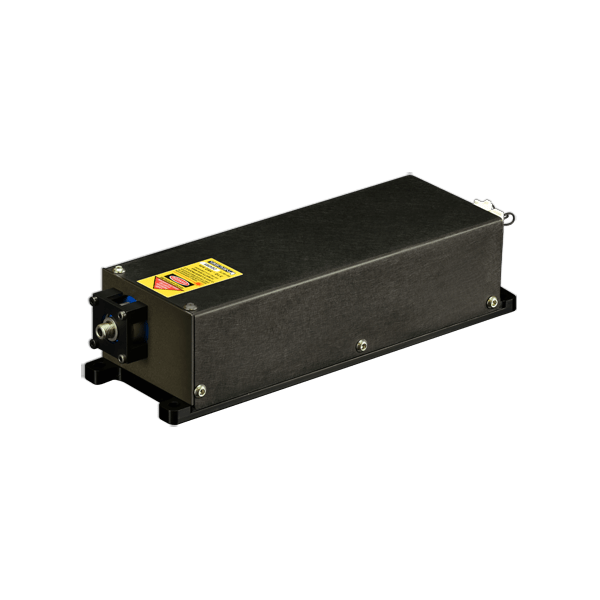

This laser module offers ultra stable power performance with VBG locked-on linewidth and/or precise power control in the same compact footprint as our other NovaTru modules. It’s also available in multimode and single mode versions.
・25–50mW Single Mode
・100–200mW Multimode

< FEATURES & BENEFITS >
Compact, Small Box Design
Power Stabilized to <0.4%
Low Power Consumption
Common Footprint

< APPLICATIONS >
Semicon Metrology
Printing
Microscopy
Forensics

< Single Mode Operating Specifications >
Output power：MIN25mW　MAX 50mW
Spectral linewidth：TYPICAL 1-2nm
Wavelength stability (over 8 hours)：TYPICAL +/- 1nm
Optical power stability (over 8 hours)：TYPICAL <1% pk-pk
Noise (10Hz–100MHz)：TYPICAL < 0.2%rms
Adjustable Output Power：TYPICAL 10-90%

< Single Mode Electrical Specifications >
Case temperature：TYPICAL 10-40°C
Humidity (non-condensing)：TYPICAL 5-95%
DC input 1：TYPICAL 0.5A @ 9V
DC input 2：TYPICAL 2A @ 3V
Warm-up time (typical)：TYPICAL 10sec
Power consumption (typical/max)：< 20W

< Multimode Operating Specifications >
Output power：MIN 100mW　MAX 200mW
Spectral linewidth：TYPICAL 2nm
Wavelength stability (over 8 hours)：TYPICAL +/- 1nm
Optical power stability (over 8 hours)：TYPICAL < 0.4% pk-pk
Noise (10Hz – 100MHz)：TYPICAL 0.2%rms
Adjustable Output Power：TYPICAL 10-90%

< Multimode Electrical Specifications >
Case temperature：TYPICAL 10-40°C
Humidity (non-condensing)：TYPICAL 5-95%
DC input 1：TYPICAL 0.5A @ 9V
DC input 2：TYPICAL 2A @ 3V
Warm-up time：TYPICAL 10sec
Power consumption (typical/max)：< 20W
