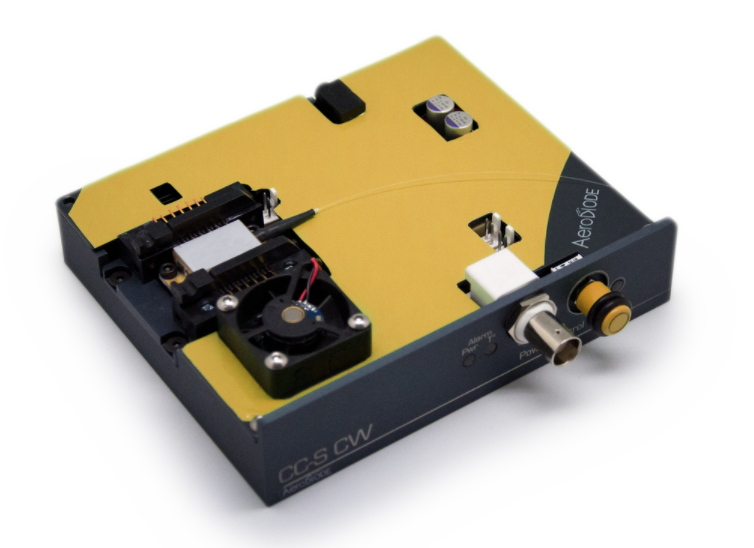

型番：CCS-CW-std、CCS-CW-HP　メーカー：AeroDIODE　商品コード：L003575

Laser Driver with TEC control & USB

Laser-Driver データシート.pdf

メーカー希望小売価格: CCS-CW-std ¥242,919 / CCS-CW-HP ¥250,534 電流: 800mA-1500mA
電圧: -4.8V

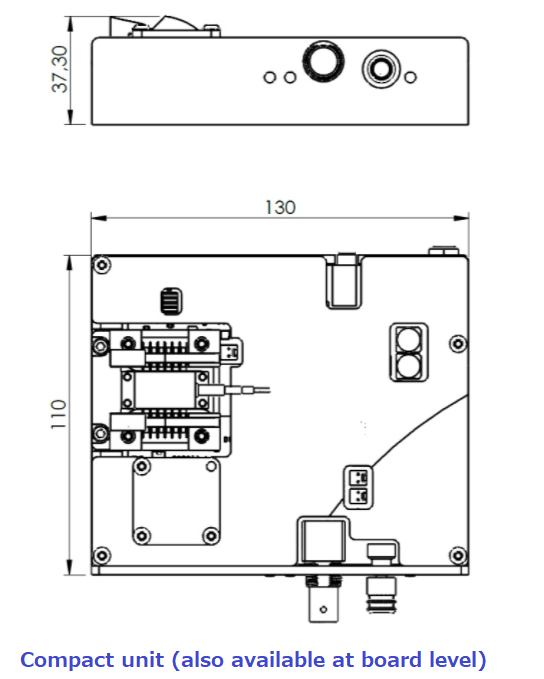

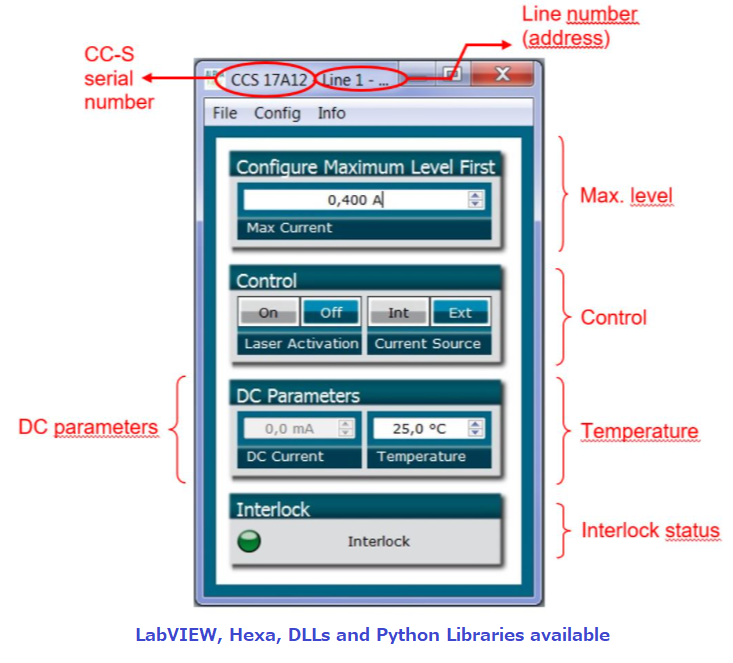

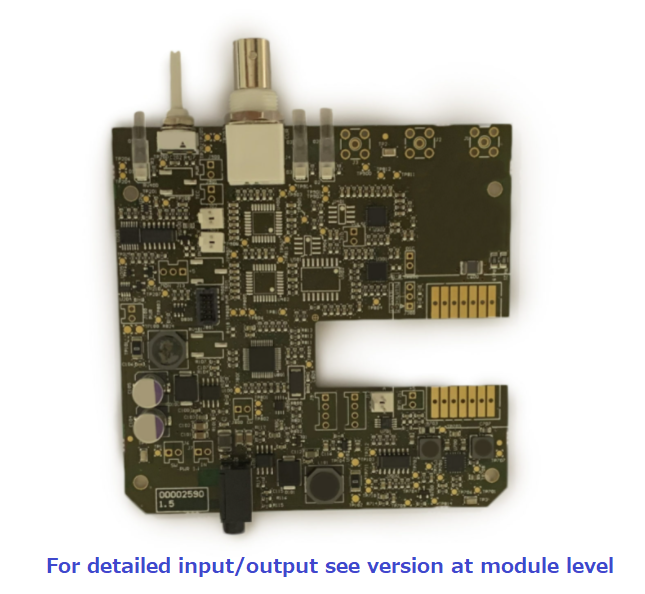

This laser driver generates CW and modulated optical signals from a Butterfly laser diode or any other form-factor. It is USB controlled with a GUI. Several libraries are available for system integration (Labview, DLLs, Python, Hexa etc.). It is also available at a board level for OEM integration (Board-level versions have a Minimum Order Quantity of 5 pieces).

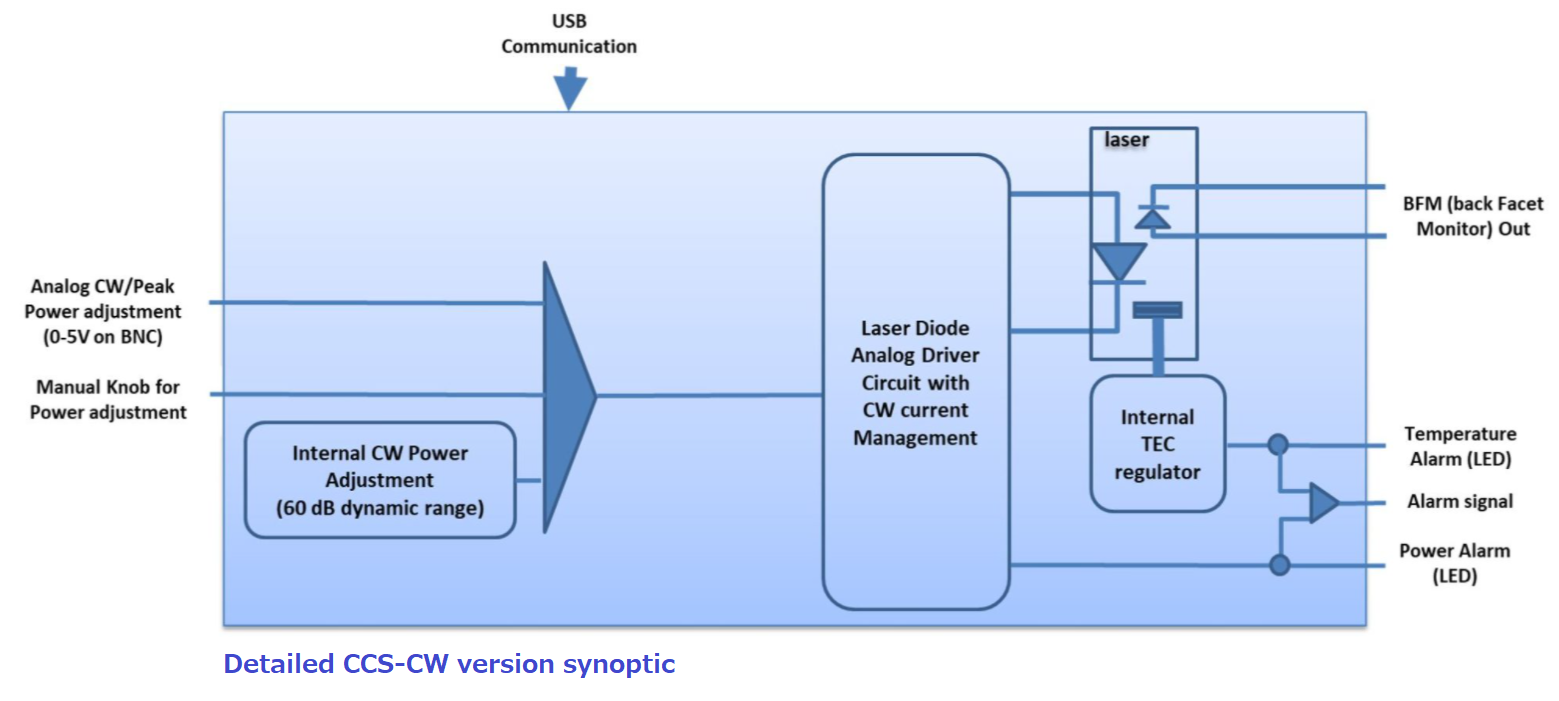

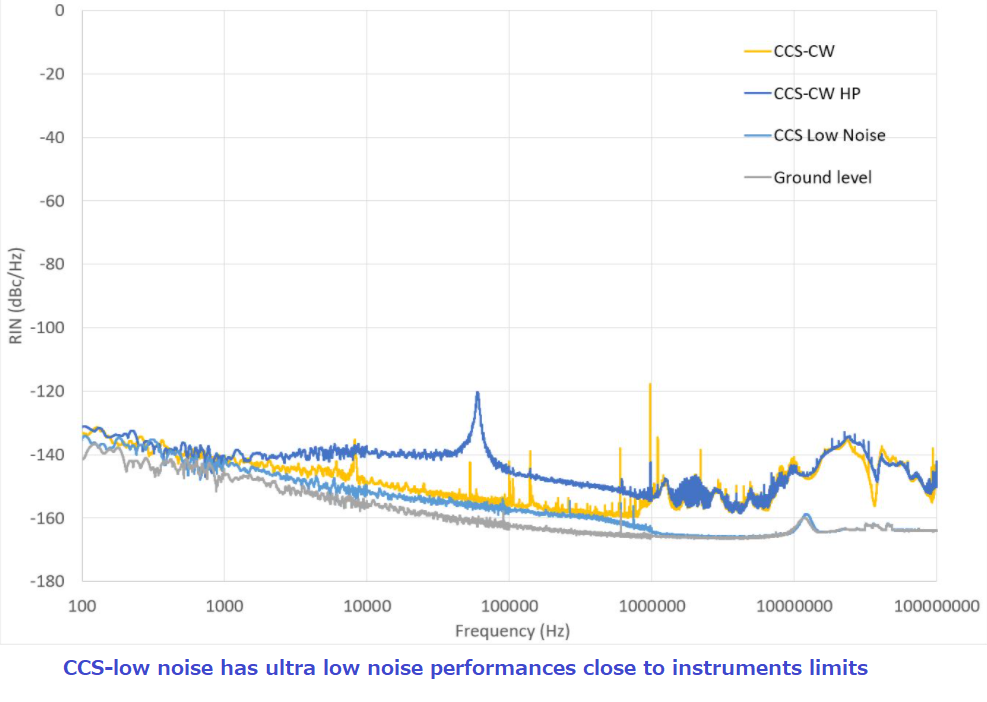

This laser driver with integrated TEC control delivers low noise current which can be modulated by an external 0-5V signal. It is available for any butterfly pinning (Type 1, Type 2, Type 2 Bias-T etc.). It is the most compact laser driver with such performances and this makes it an ideal tool for OEM integration into your product.

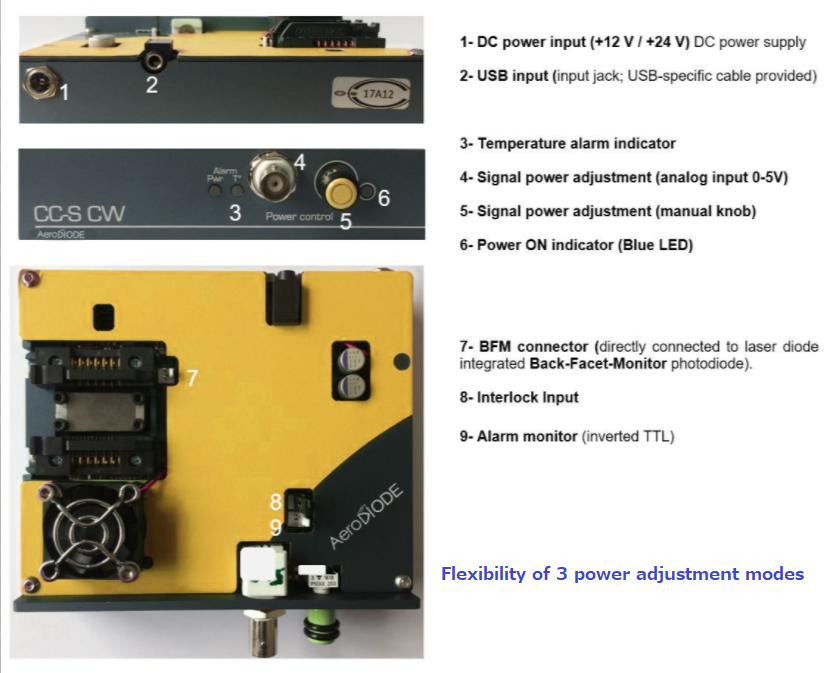

< Laser driver Key features >

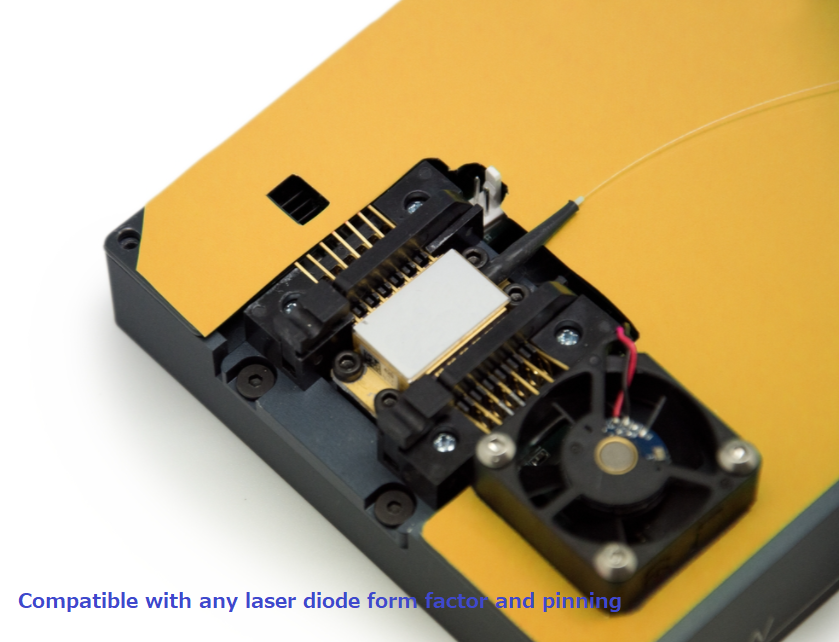

・Compatible with butterfly laser diodes (Type 1 or Type 2 pinning) and other form factors.
・It includes an integrated TEC controller.
・A special thermal interface is included which do not require any thermal grease.
・Output Current : 0.00 mA – 1500.00 mA
・Current Set-Point Resolution (@ 200 mA Set-Point): 0.05 mA
・Output Voltage Maximum: 4.8 V (up to 10 V optional or up to 18 V with the new high-end laser driver version)
・The user can set 4 starting modes (OEM mode, previous settings mode (laser diode at 0 mA), etc.)
・USB, manual & analog (0-5 V) power adjustment
