型番：1480nm fiber coupled laser diodes　メーカー：AeroDIODE　商品コード：L003572

1480nm Laser Diode CW or Pulsed - DFB or Bragg

1480nm Laser Diode CW or Pulsed - DFB or Bragg
1480nm Laser Diode CW or Pulsed - DFB or Bragg
1480nm Laser Diode CW or Pulsed - DFB or Bragg
1480nm Laser Diode CW or Pulsed - DFB or Bragg
1480nm Laser Diode CW or Pulsed - DFB or Bragg
1480nm Laser Diode CW or Pulsed - DFB or Bragg
1480nm Laser Diode CW or Pulsed - DFB or Bragg
1480nm Laser Diode CW or Pulsed - DFB or Bragg
1480nm Laser Diode CW or Pulsed - DFB or Bragg
1480nm Laser Diode CW or Pulsed - DFB or Bragg
1480nm Laser Diode CW or Pulsed - DFB or Bragg
1480nm Laser Diode CW or Pulsed - DFB or Bragg

1480nm laser diodes データシート.pdf

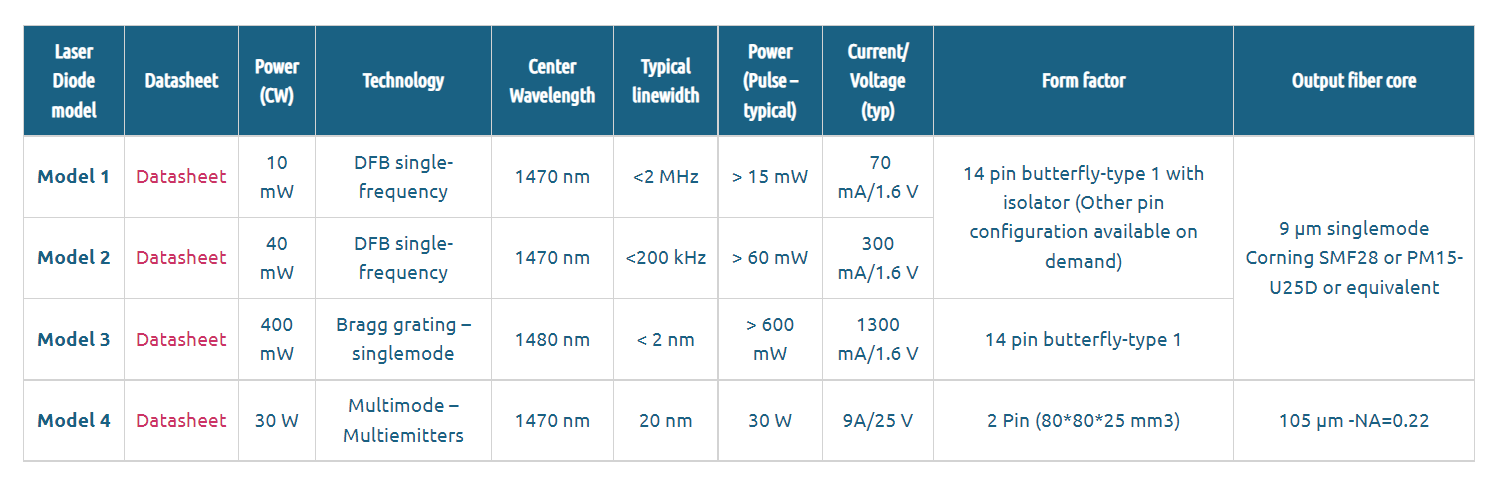

波長: 1460nm-1481nm
出力: 10mW-30W
電流: 60mA-9A
電圧: 1.6V-25V
パッケージ: 14 pin Butterfly package
テクノロジー: DFB、Fabry-Perrot with Bragg

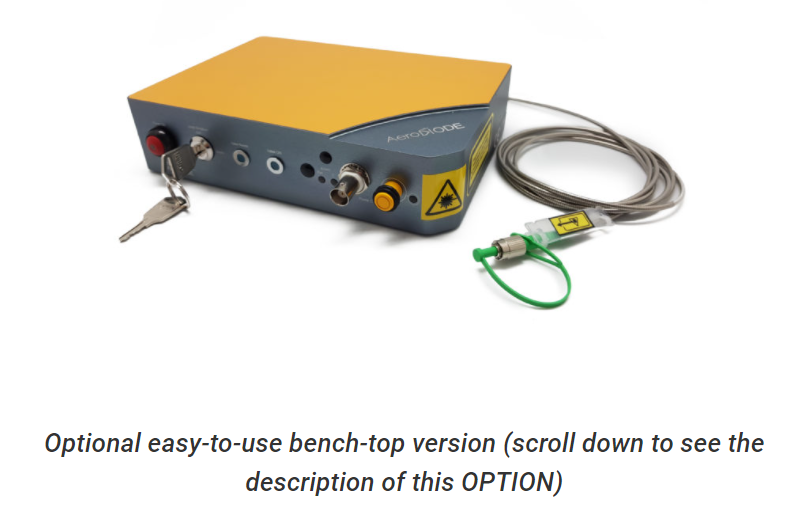

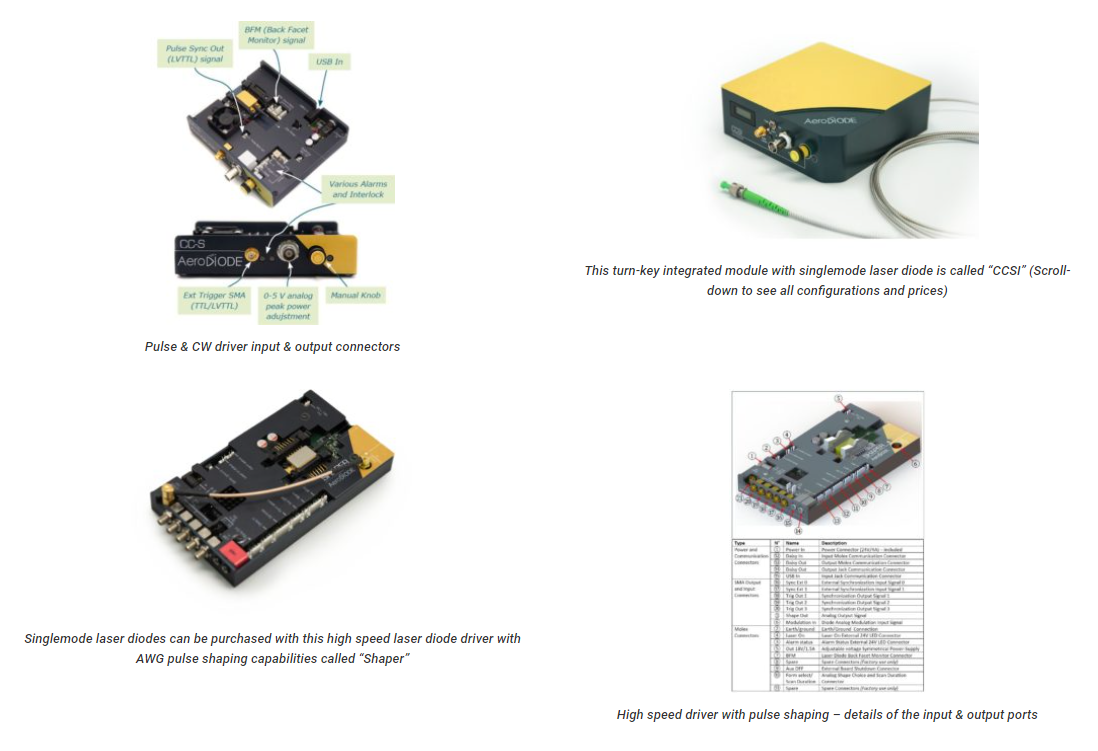

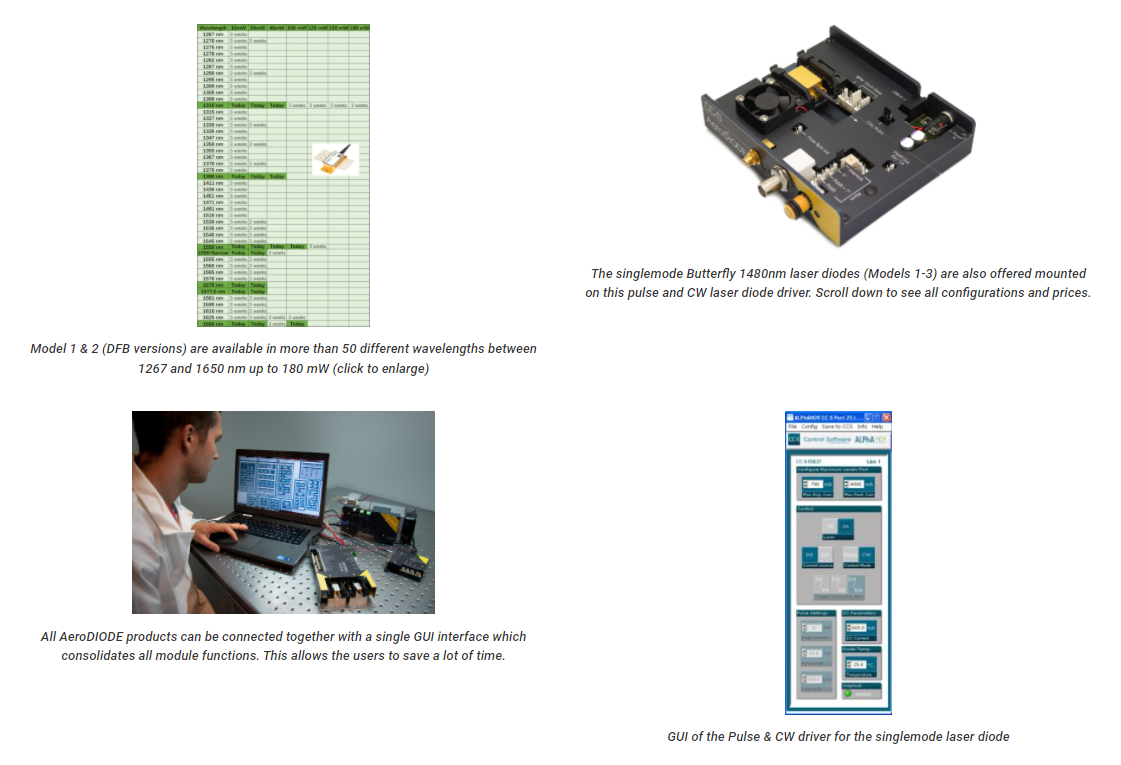

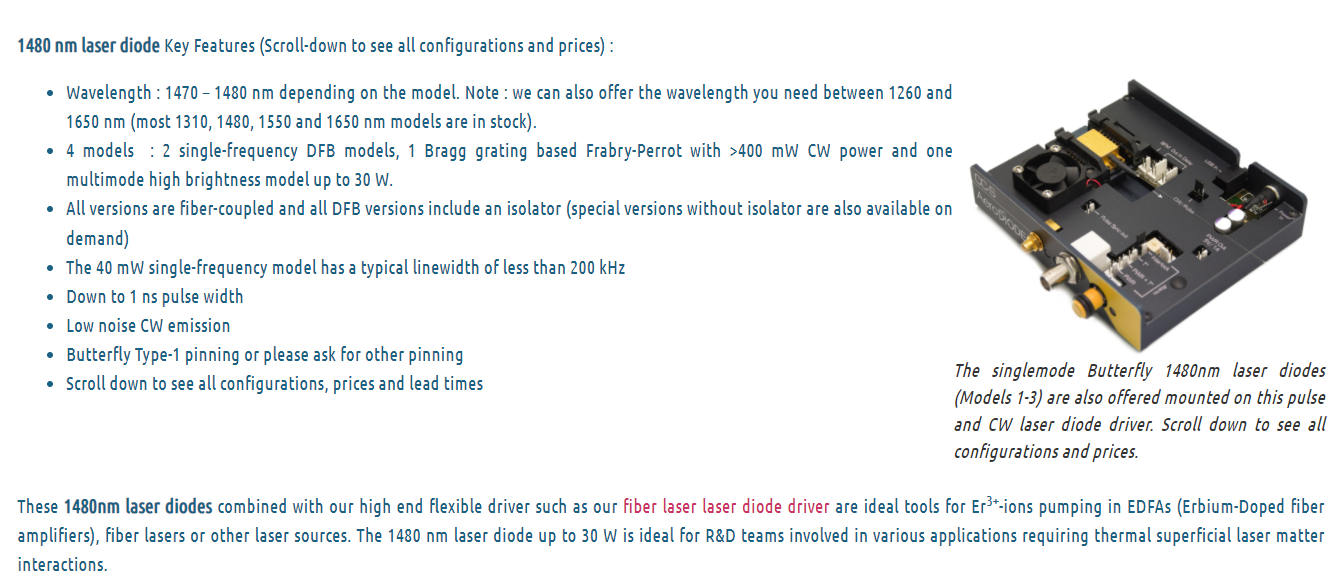

These fiber-coupled 1480 nm laser diodes are offered as stock items or associated with either a CW or pulsed laser diode driver. 2 butterfly DFB models are single-frequency versions up to 40 mW. They are compatible with our low noise CW or pulsed high speed nanosecond pulsed drivers and this makes it an optimal solution for Er3+-ions pumping or thermal superficial laser matter interaction systems.
The singlemode 1480 nm laser diodes are extremely stable and low noise in CW regime due to the DFB or Bragg-grating technologies. Most Turn-key diode + driver solutions are optimized from single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 1480nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal.
