型番：1470nm fiber coupled laser diodes　メーカー：AeroDIODE　商品コード：L003571

1470nm Laser Diode CW or Pulsed - DFB or Bragg

1470nm Laser Diode CW or Pulsed - DFB or Bragg
1470nm Laser Diode CW or Pulsed - DFB or Bragg
1470nm Laser Diode CW or Pulsed - DFB or Bragg
1470nm Laser Diode CW or Pulsed - DFB or Bragg
1470nm Laser Diode CW or Pulsed - DFB or Bragg
1470nm Laser Diode CW or Pulsed - DFB or Bragg
1470nm Laser Diode CW or Pulsed - DFB or Bragg
1470nm Laser Diode CW or Pulsed - DFB or Bragg
1470nm Laser Diode CW or Pulsed - DFB or Bragg
1470nm Laser Diode CW or Pulsed - DFB or Bragg
1470nm Laser Diode CW or Pulsed - DFB or Bragg
1470nm Laser Diode CW or Pulsed - DFB or Bragg

1470nm laser diodes データシート.pdf

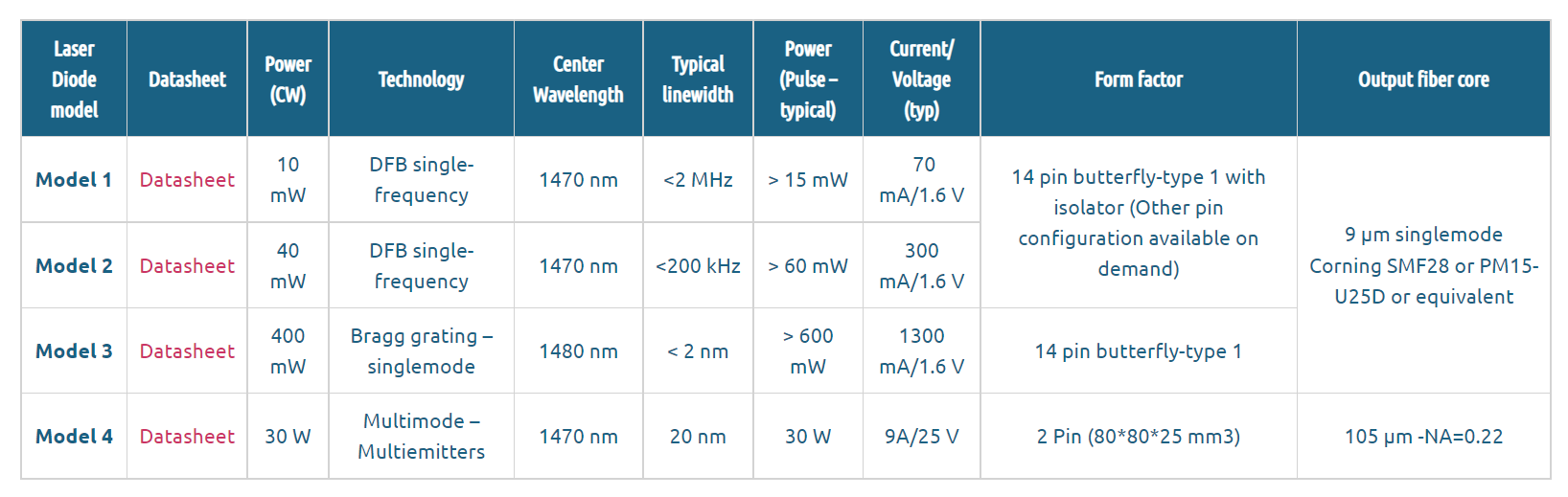

波長: 1460nm-1481nm
出力: 10mW-30W
電流: 60mA-9A
電圧: 1.6V-25V

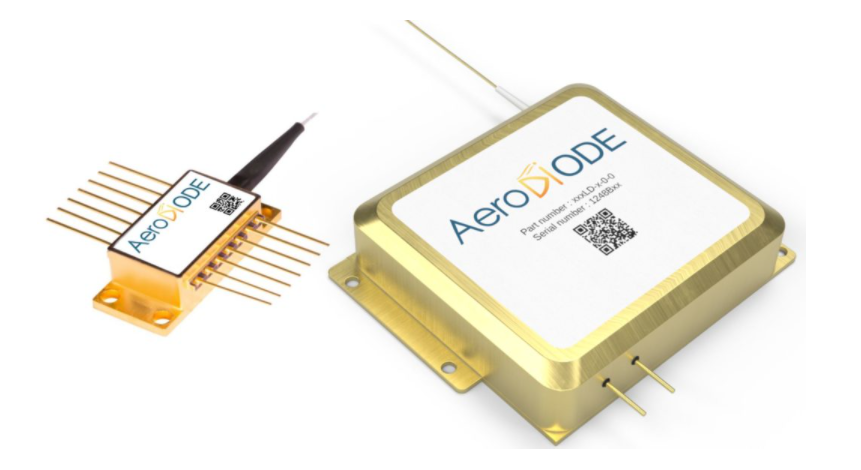

パッケージ: 14 pin Butterfly package
テクノロジー: DFB、Fabry-Perrot with Bragg

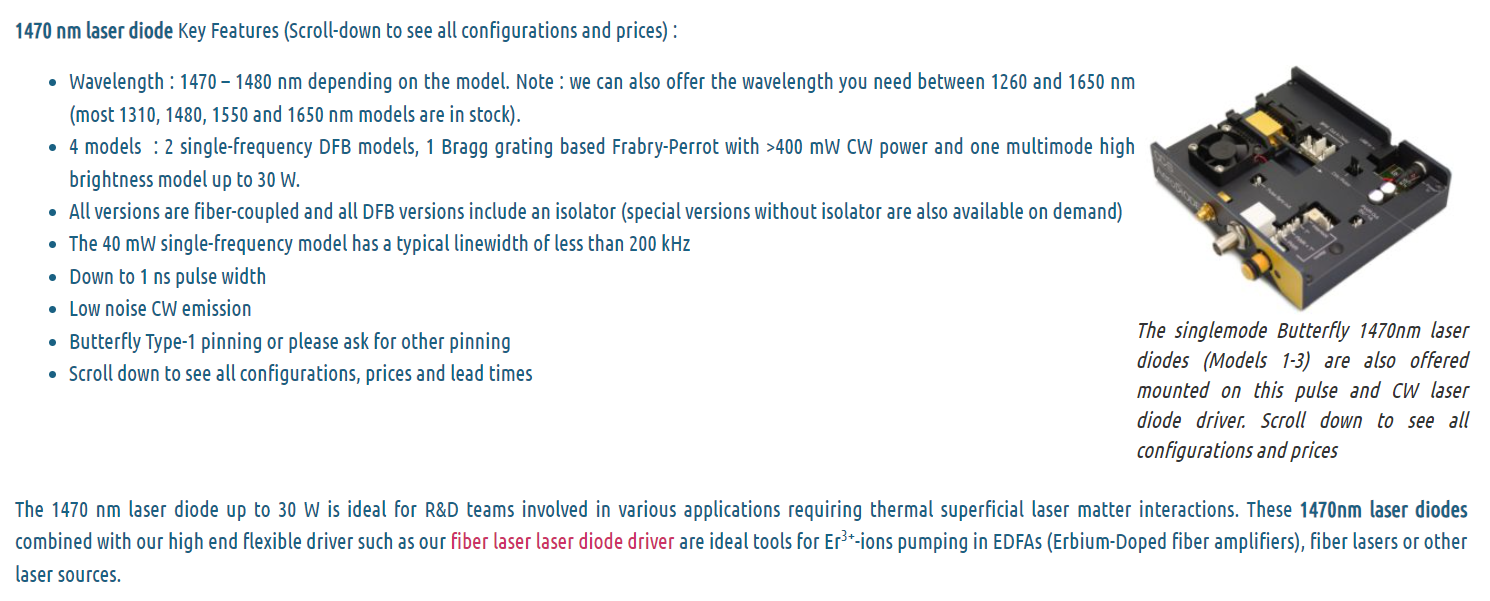

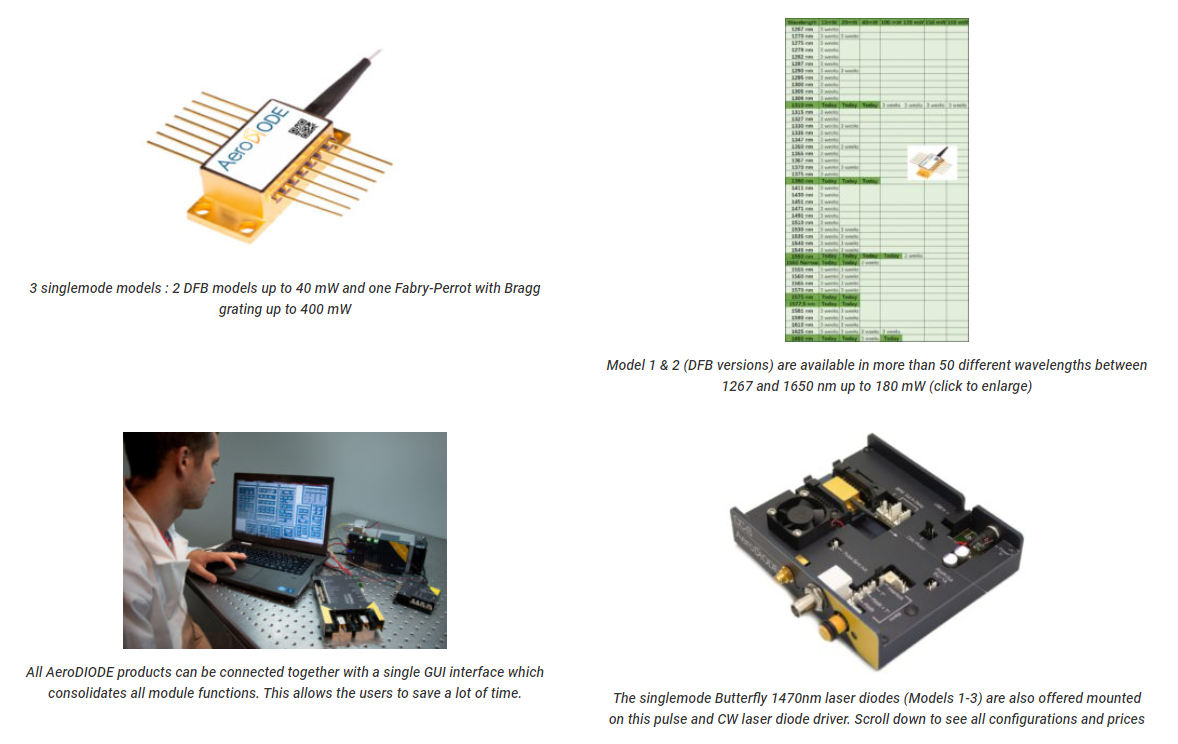

These fiber-coupled 1470 nm laser diodes are offered as stock items or associated with either a CW or pulsed laser diode driver. 2 butterfly DFB models are single-frequency versions up to 40 mW. They are compatible with our low noise CW or pulsed high speed nanosecond pulsed drivers and this makes it an optimal solution for thermal superficial laser matter interaction systems or Er3+-ions pumping.

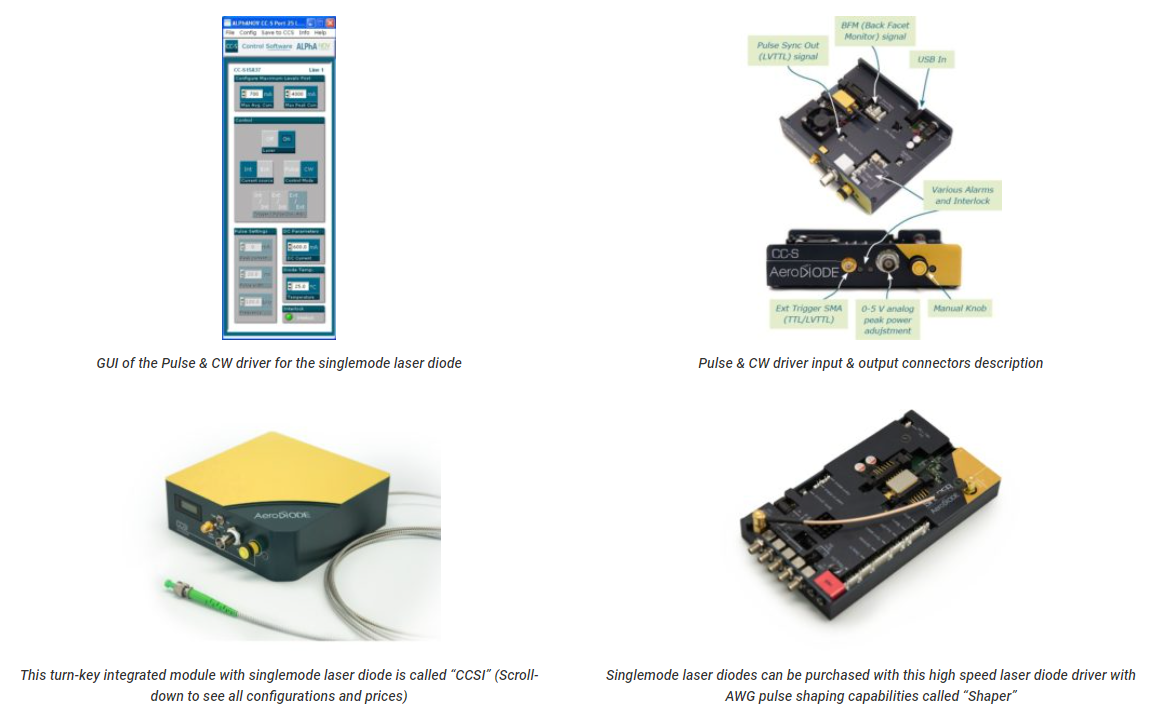

The singlemode 1470 nm laser diodes are extremely stable and low noise in CW regime due to the DFB or Bragg-grating technologies. Most Turn-key diode + driver solutions are optimized from single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 1470nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal.
