型番：976nm fiber coupled laser diodes　メーカー：AeroDIODE　商品コード：L003564

976nm Fiber Coupled Laser Diodes with narrow emission linewidth

976nm Fiber Coupled Laser Diodes with narrow emission linewidth
976nm Fiber Coupled Laser Diodes with narrow emission linewidth
976nm Fiber Coupled Laser Diodes with narrow emission linewidth
976nm Fiber Coupled Laser Diodes with narrow emission linewidth
976nm Fiber Coupled Laser Diodes with narrow emission linewidth
976nm Fiber Coupled Laser Diodes with narrow emission linewidth
976nm Fiber Coupled Laser Diodes with narrow emission linewidth
976nm Fiber Coupled Laser Diodes with narrow emission linewidth
976nm Fiber Coupled Laser Diodes with narrow emission linewidth
976nm Fiber Coupled Laser Diodes with narrow emission linewidth
976nm Fiber Coupled Laser Diodes with narrow emission linewidth
976nm Fiber Coupled Laser Diodes with narrow emission linewidth

976nm laser diodes データシート.pdf

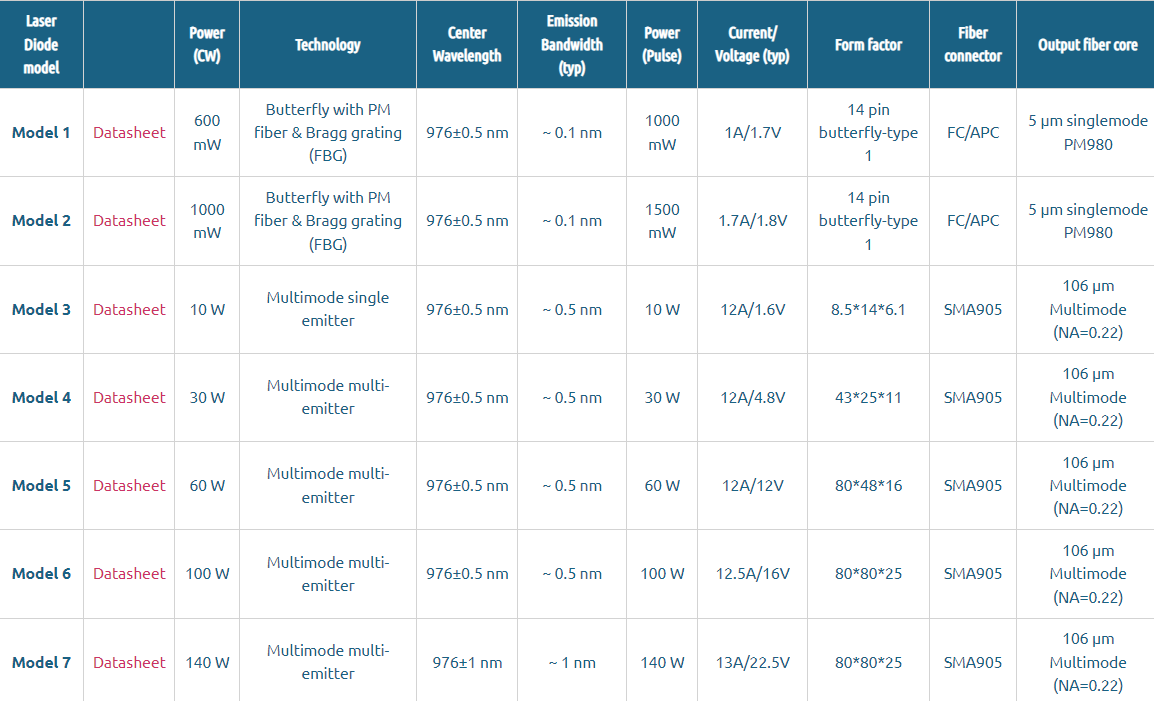

波長: 975nm-977nm
出力: 600mW-140W
電流: 1.05A-14A
電圧: 1.6V-24V
パッケージ: Butterfly package
テクノロジー: Single mode FP with Bragg Grating、Single emitter with VBG、Multi emitters with VBG

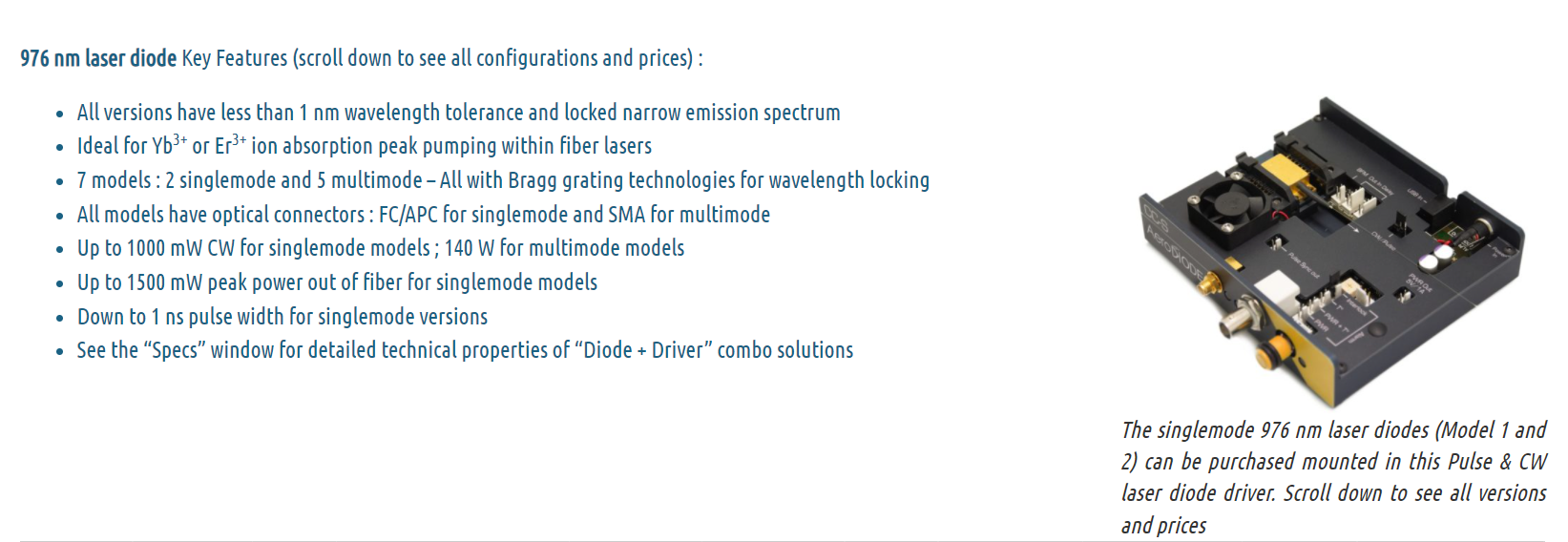

These fiber-coupled 976 nm laser diodes with optical connectors are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. They are compatible with our high speed nanosecond pulsed drivers or CW drivers. All modules have narrow emission bandwidth for Yb3+ or Er3+ pumping (Bragg grating technology). Scroll down to see all configurations and prices.

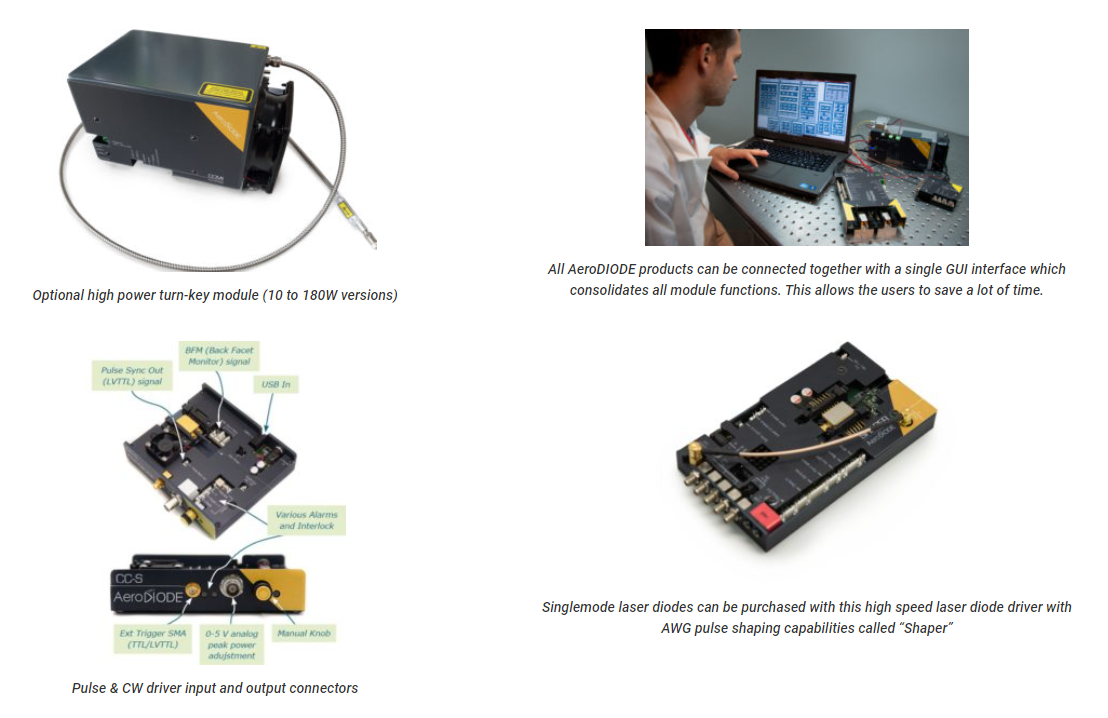

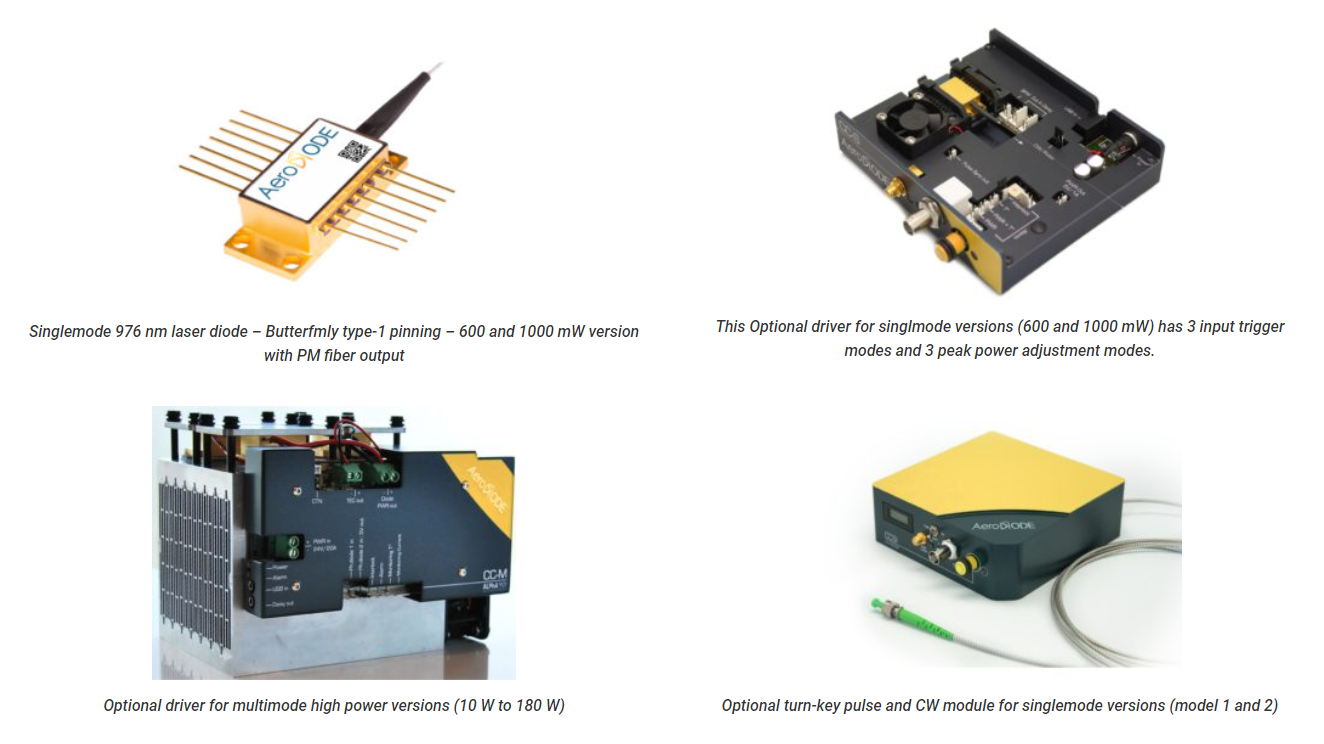

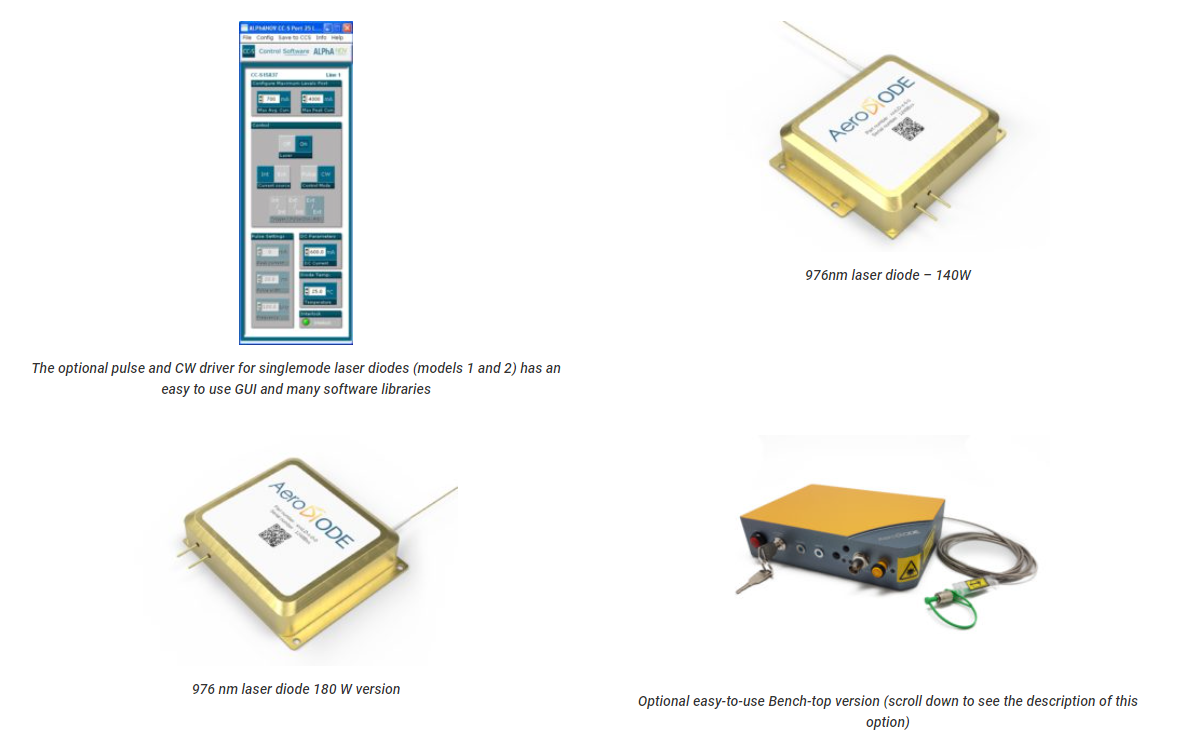

Most Turn-key 976 nm laser diode + driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 976 nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal and can reach high power in nanosecond pulse regime up to 1500 mW. 5 multimode versions are offered for CW emission up to 140 W in a 106 µm core multimode fiber (NA=0.22). Every laser diode has it own optical connector : FC/APC for singlemode version, high power SMA905 for multimode versions.
