型番：VPSL-0639-035-x-5-B メーカー：Blue Sky Research 商品コード：L003357

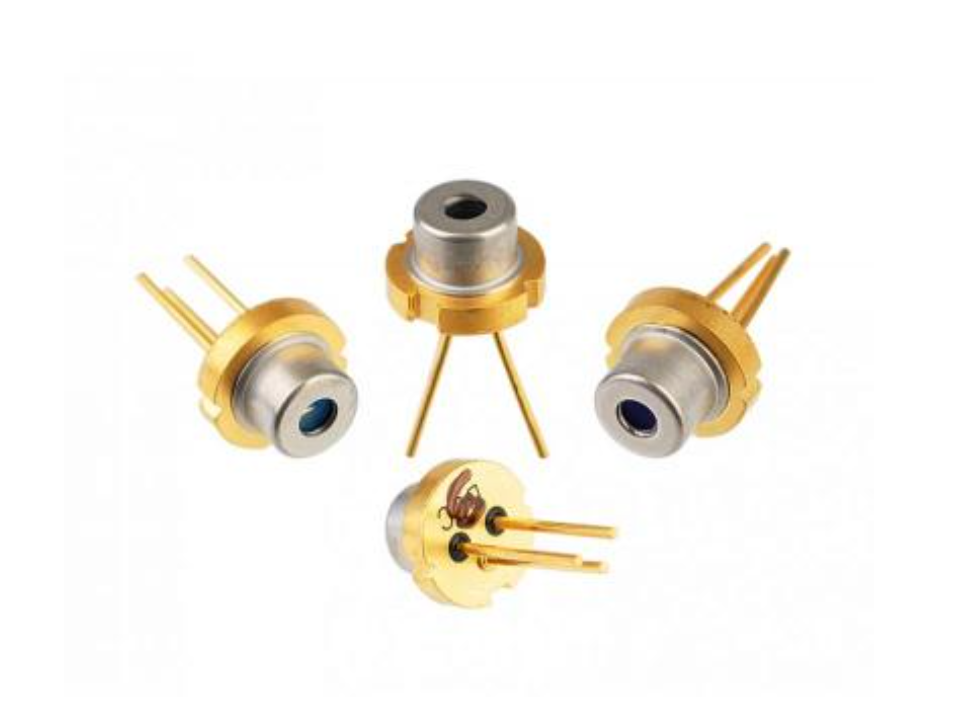

639nm / 35mW VPS Laser Diode [TO-can]
波長: 635nm-642nm
出力: -35mW
電流: 95mA-130mA
電圧: 2.3V-2.8V
パッケージ: TO-can
形状: 円
拡がり角: 7, 8.5, 11 deg
< Description >
The VPSL-0639-035-x-5-B is a 0.63 µm band, AlGalnP index guided, laser diode with a multi-quantum well (MQW) structure. It is suitable as a light source for laser pointers and optical equipment for alignment. Combined with an integrated, internal, beam correcting optic and encased in a hermetic sealed package, this is a high-performance, highly reliable, and long life laser diode.
< Features >
Built-in monitor photodiode
Circular, diverging beam, NA approximately 0.11
Diffraction limited wavefront
35mW CW optical power
Standard 5.6 mm form factor
