型番：VPSL-0830-200-x-5-B　メーカー：Blue Sky Research　商品コード：L003356

830nm/ 200mW　VPS Laser Diode [TO-can]

830nm/ 200mW　VPS Laser Diode [TO-can]
830nm/ 200mW　VPS Laser Diode [TO-can]
830nm/ 200mW　VPS Laser Diode [TO-can]
830nm/ 200mW　VPS Laser Diode [TO-can]

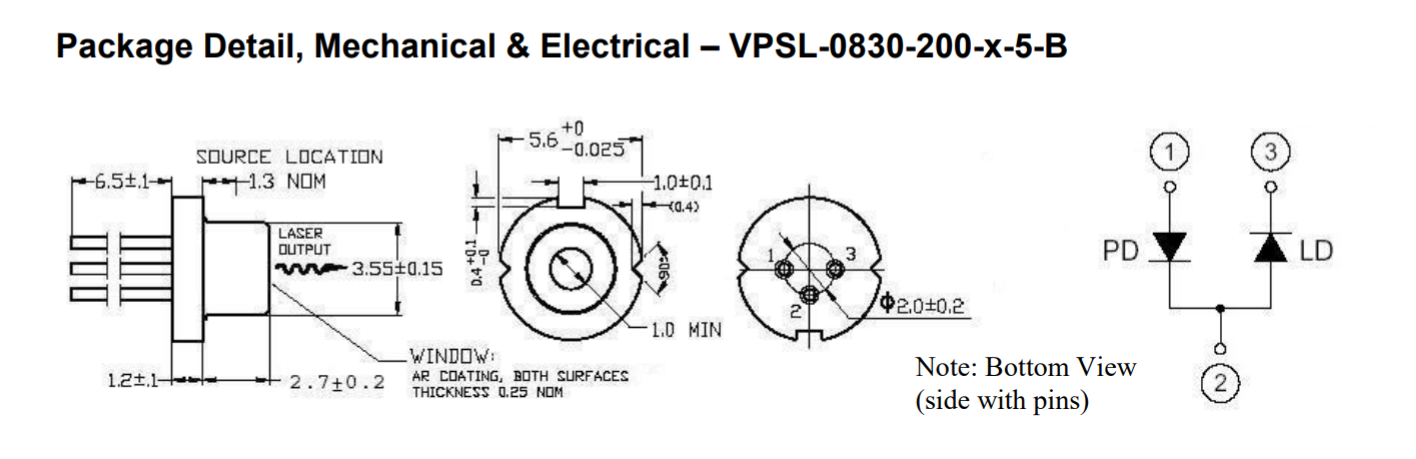

VPSL-0830-200-x-5-B データシート.pdf

波長: 815nm-835nm
出力: 200mW-220mW
電流: 240mA-280mA
電圧: 1.9V-2.2V
パッケージ: TO-can
形状: 円
拡がり角: 8deg

< Description >
The VPSL-0830-200-x-5-B is an 830nm laser diode useful for applications such as laser printers, measurement equipment, free space optical communications, and other laser based optical systems. A diffraction- limited and circular wavefront is accomplished through the integration of an internal, beam correcting optic. Hermetic sealing of the package assures high reliability.

< Features >
Built-in monitor photodiode.
Circular, diverging beam, NA approximately 0.11
Diffraction limited performance, wavefront equal or better than λ/4 peak to valley
200mW CW optical power
Standard 5.6mm form factor
