型番：VPSL-0830-050-x-5-A/B メーカー：Blue Sky Research 商品コード：L003355
830nm / 50mW VPS Laser Diode [TO-can]
波長: 820nm-840nm
出力: -50mW
電流: 75mA-100mA
電圧: 1.9V-2.4V

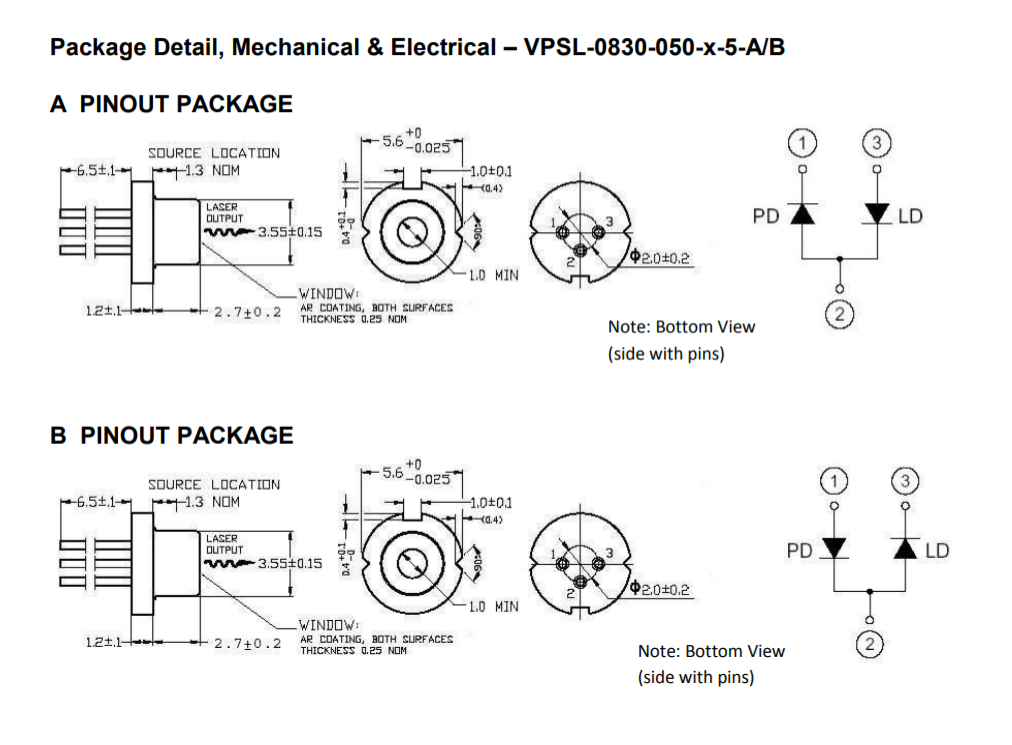

パッケージ: TO-can
拡がり角: 6, 9, 12 deg
< Description >
The VPSL-0830-050-x-5-A/B is an 830nm GaALAs laser diode useful for applications such as laser printers, measurement equipment, free space optical communications, and other laser based optical systems. A diffraction- limited and circular wavefront is accomplished through the integration of an internal, beam correcting optic. Hermetic sealing of the package assures high reliability.
< Features >
Built-in monitor photodiode.
Single longitudinal mode
Diffraction limited performance
50mW CW optical power
Standard 5.6mm form factor
