型番：VPSL-0785-025-Q-5-B　メーカー：Blue Sky Research　商品コード：L003353

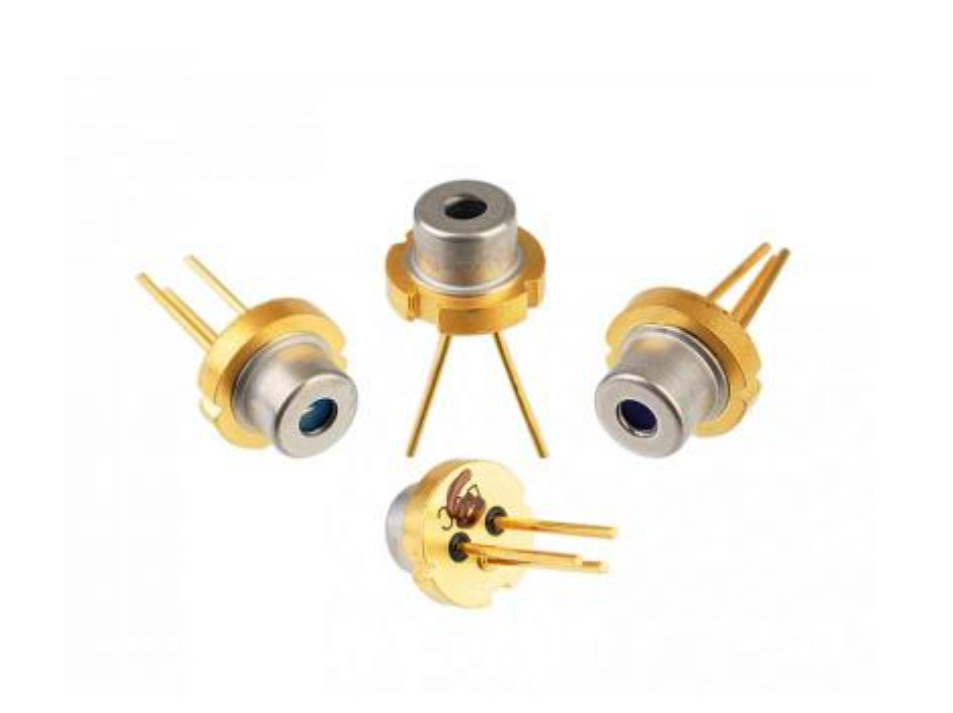

785nm / 25mW　VPS Laser Diode [TO-can]

波長: 770nm-800nm
出力: 25mW-30mW
電流: 30mA-60mA
電圧: 1.6V-2.3V
パッケージ: TO-can
形状: 円
拡がり角: 6, 8, 13 deg

< Description >
The VPSL-0785-025-Q-5-B is a 0.78 µm band, GaAlAs index guided laser diode with a multiquantum well (MQW) structure. It is suitable as a light source for large capacity optical disc memories, such as magneto-optical, and various other types of optical equipment. Combined with an integrated, internal, beam correcting optic and encased in a hermetic sealed package, this is a high-performance, highly reliable, and long life laser diode.

< Features >
Built-in monitor photodiode
Circular, diverging beam, NA approximately 0.11
Diffraction limited wavefront, aberration equal or better than λ/4 peak to valley
25mW CW optical power
Standard 5.6 mm form factor
