型番： VPSL-0635-010-x-9-B メーカー：Blue Sky Research 商品コード：L003344

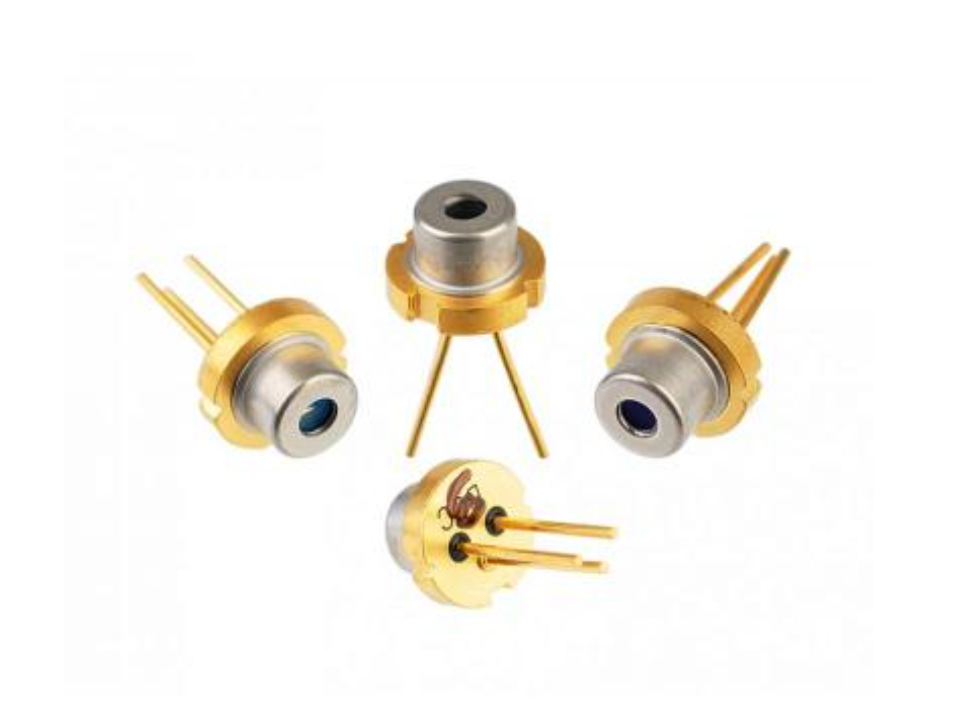

635nm/ 10mW VPS Laser Diode [TO-can]
波長: 625nm-640nm
出力: -10mW
電流: 70mA-95mA
電圧: -2.7V

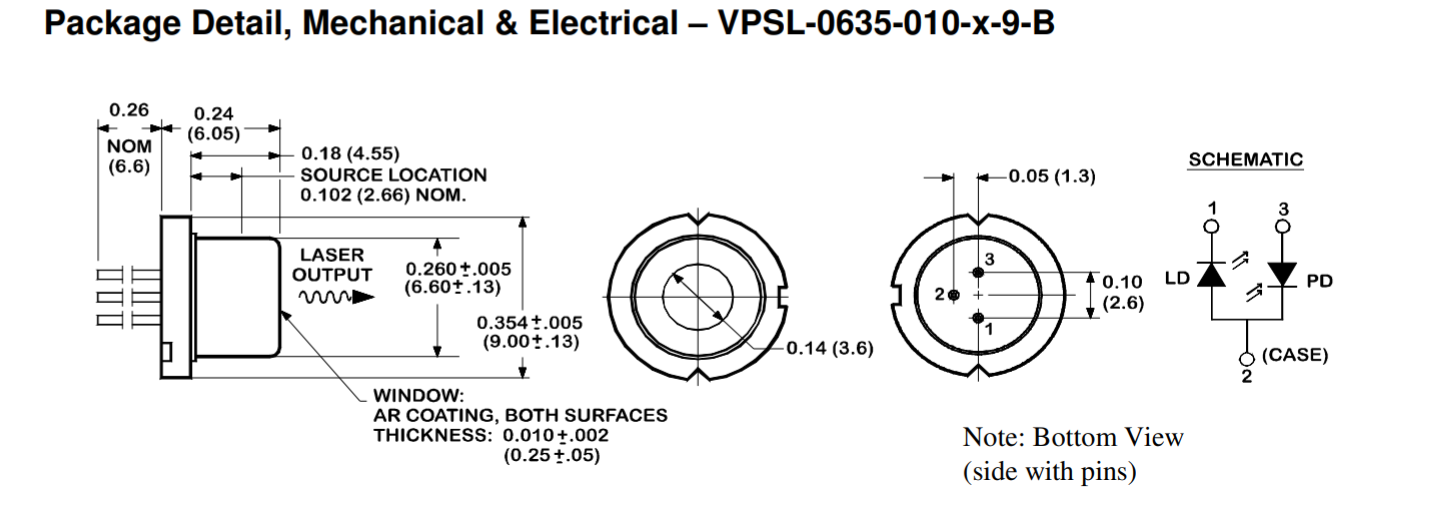

パッケージ: TO-can
形状: 円
拡がり角: 5, 8, 11 deg
< Description >
The VPSL-0635-010-x-9-B is a 0.63µm band, A1GaInP index-guided, multi-quantum well (MQW) laser diode with an integrated, internal, beam correcting optic. It is suitable as a light source for bar code readers, laser levelers and various other types of optical equipment. Hermetic sealing of the package assures high reliability.
< Features >
Visible light output
Built-in monitor photodiode
Circular, diverging beam, NA approximately 0.11
Diffraction limited wavefront
Standard 9mm form factor
