型番：VPSL-0635-005-x-5-A/B/E　メーカー：Blue Sky Research　商品コード：L003342

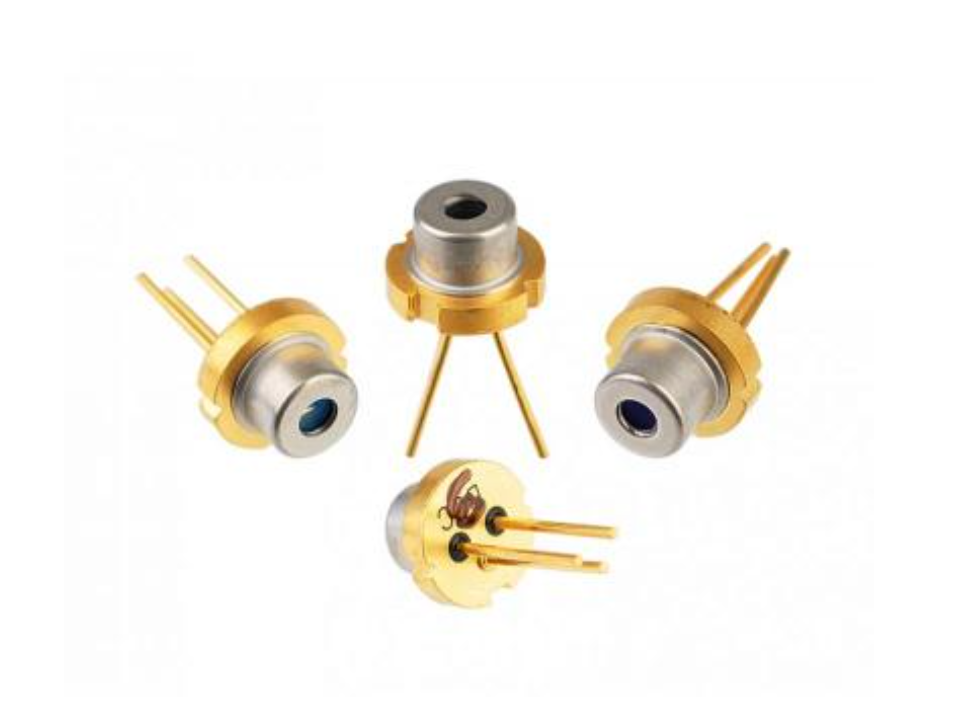

635nm / 5mW　VPS Laser Diode [TO-can]

635nm / 5mW　VPS Laser Diode [TO-can]
635nm / 5mW　VPS Laser Diode [TO-can]
635nm / 5mW　VPS Laser Diode [TO-can]
635nm / 5mW　VPS Laser Diode [TO-can]

VPSL-0635-005-X-5-A-B-E データシート.pdf

波長: 630nm-640nm
出力: 5mW-6mW
電流: 34mA-50mA
電圧: 2.2V-2.7V
パッケージ: TO-can
形状: 円
拡がり角: 6, 8, 12 deg

< Description >
The VPSL-0635-005-x-5-A/B/E is a 0.63 µm band, AlGalnP index guided, laser diode with a multi-quantum well (MQW) structure. It is suitable as a light source for laser levelers, scanners, and optical equipment for measurement. Combined with an integrated, internal, beam correcting optic and encased in a hermetic sealed package, this is a high-performance, highly reliable, and long life laser diode.

< Features >
Built-in monitor photodiode
Circular, diverging beam, NA approximately 0.11
Diffraction limited wavefront, aberration equal or better than λ/4 peak to valley
5mW CW optical power
Standard 5.6 mm form factor
