型番：OS-2-1-C-55　メーカー：Brimrose Corporation of America　商品コード：L003282

1x2 or 2x1 Fiber Optical Switch Systems

1x2 or 2x1 Fiber Optical Switch Systems
1x2 or 2x1 Fiber Optical Switch Systems
1x2 or 2x1 Fiber Optical Switch Systems
1x2 or 2x1 Fiber Optical Switch Systems

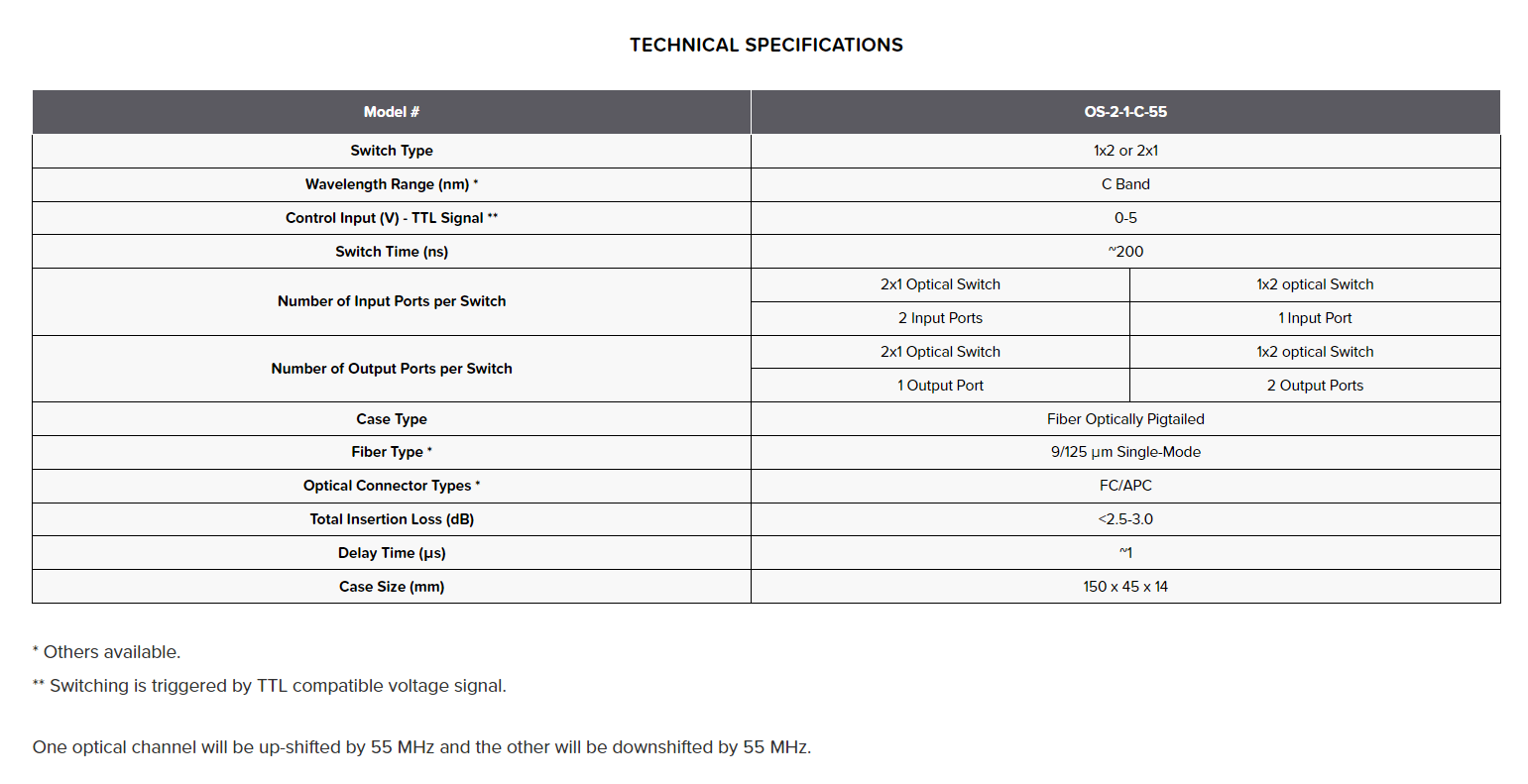

OpticalSwitch　データシート.pdf

FREE SPACE AO DEVICESはこちら
OEM & LAB VERSION RF DRIVERSはこちら

The Brimrose fiber optical switch system plays a major role in modern fiber optic telecommunication and sensing systems that demands high-reliability operation, response, and continuous high frequency switching.

This fiber optical switch is a powerful tool to switch an optical signal at nanosecond speed (200ns). The optical switch has two configurations: 1×2 or 2×1. The switch is bi-directional. The optical switch consists of the all fiber optic switch device and corresponding driver packaged in a rack-mountable enclosure. The switching is done by an external TTL compatible low voltage signal.

< KEY FEATURES >
Fiber Optically Pigtailed
1x2 and 2x1 Configurations
Compact Size and Rack Mount
Solid-state: No Moving Parts
Nanosecond Speed Response: ~200 ns
Low Insertion Loss
Low Power Consumption
High Reliability, Environmentally Stable
9/125 µm Single-Mode (SM) Fiber
Custom Configurations Available

< APPLICATIONS >
Optical Add/Drop, Cross Connect, and Ring Protection
System Monitoring
Telecommunication Applications
Test & Measurement
Optical Network
Field Projects in Fiber Optics System
OEM Designs
