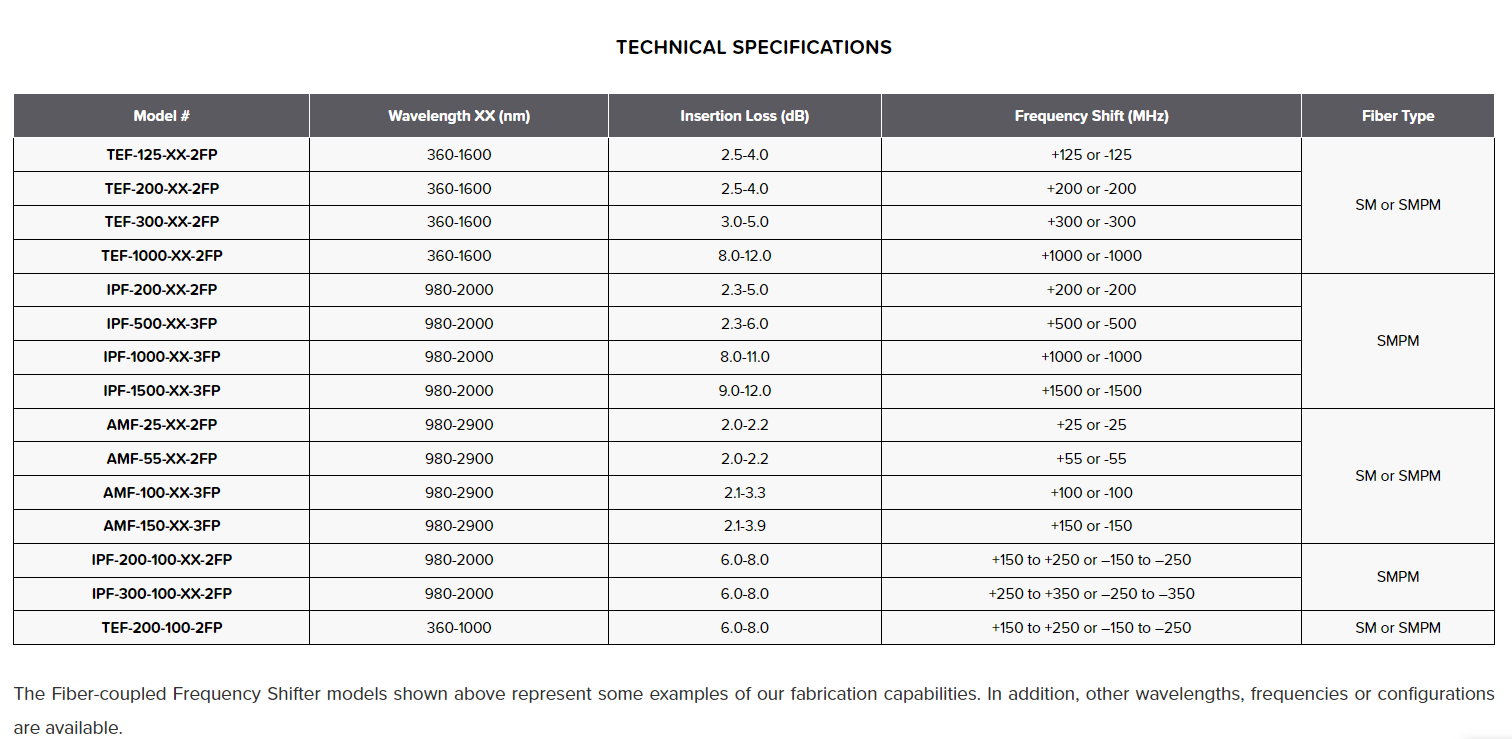

型番：TEF-125-XX-2FP、TEF-200-XX-2FP、TEF-300-XX-2FP、TEF-1000-XX-2FP、IPF-200-XX-2FP、IPF-500-XX-3FP、IPF-1000-XX-3FP、IPF-1500-XX-3FP、AMF-25-XX-2FP、AMF-55-XX-2FP、AMF-100-XX-3FP、AMF-150-XX-3FP、IPF-200-100-XX-2FP、IPF-300-100-XX-2FP、TEF-200-100-2FP　メーカー：Brimrose Corporation of America　商品コード：L003280

Fiber-coupled Acousto-Optic Frequency Shifters

FCFS　データシート.pdf

波長: 360nm-2900nm
パッケージ: SM、SMPM

FREE SPACE AO DEVICESはこちら
OEM & LAB VERSION RF DRIVERSはこちら

Brimrose’s Fiber-coupled, Acousto-Optic Frequency Shifter Systems are used to shift the frequency of various optical signals. Due to a Doppler Shift, the frequency of the diffracted first order optical beam in the AO modulator or AO frequency shifter is shifted in frequency (wavelength) by the acoustic carrier frequency (wavelength).

If the incident acoustic wave is introduced in the direction of the incident optical wave, the laser frequency shifts towards the higher side. If the incident acoustic wave is introduced in the opposite direction of the incident optical wave, the laser shifts toward the lower frequency side.

The typical 3 dB spectral range of an AOFS device is ~60-120 nm and the 3 dB frequency shift range is ~10% of the center frequency. For wide bandwidth applications, Brimrose developed an AOFS with an extended frequency shift range of up to 100 MHz.

< KEY FEATURES >
Low Insertion Loss
Broad Wavelength Range
Low Power Consumption
Hermetically Sealed
Low RF Drive Power
Stable Performance
Good Temperature Stability and Reliability
Custom Configurations Available

< APPLICATIONS >
Fiber Sensing
Heterodyne Detection
Interferometric Fiber Sensor Systems
Laser Doppler Configurations
OEM Designs
