型番:ALC-1320-08000-CMT メーカー:Akela Laser Corporation 商品コード:L003261

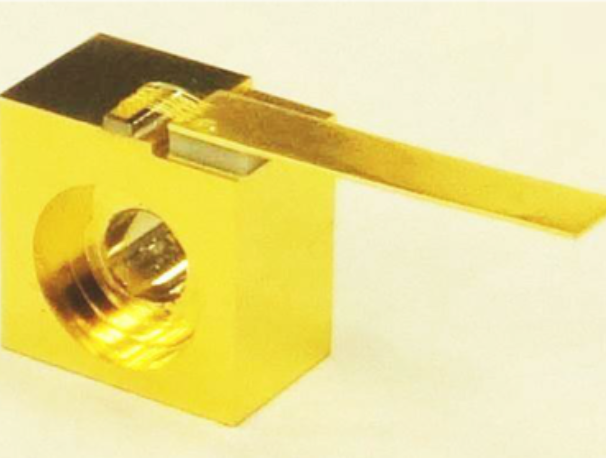

1320±10nm / 8W High Power Diode Laser: C-mount

波長: 1310nm-1330nm
出力: 8W-
電流: 18A-18A
電圧: -1.5V

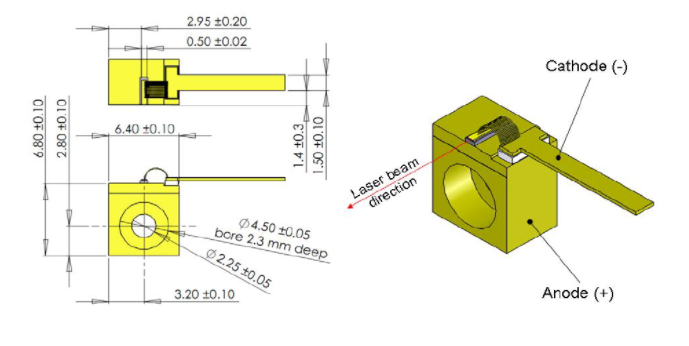

パッケージ: C-mount

(Features)
The C-mount is an ideal component for quick prototyping and laboratory setups. However, the maximum output power is typically limited by the inherently sub-optimal heat dissipation properties of the C-mount itself. Please contact us to discuss the best package option for your application.

(Applications)
Medical
Material Processing

(Specifications)
Wavelength Tolerance ±10 nm
Spectral Width (FWHM) 10.0 nm
Wavelength Temp. Coefficient 0.5 nm/°C
Output Power >8 W
Operating Voltage <1.5 V
Threshold Current 1.0 A
Emitter Width 100 µm
Beam Divergence (Fast axis) 33 degrees
Beam Divergence (Slow axis), 95% 10 degrees

価格 地域 代理店
要問い合わせ サンインスツルメント株式会社
