型番：MWIR DFB 5.18 µm QCL VHL Pkg　メーカー：Adtech Optics, INC.　商品コード：L003248

5.18μm / 152.5mW　MWIR DFB QCL VHL Pkg

波長: 5.18μm-
出力: -152.5mW
電流: -0.38A
電圧: -12.6V
パッケージ: VERTICAL EMITTING HIGH HEAT LOAD (VHL) PACKAGE
テクノロジー: MWIR DFB QCL

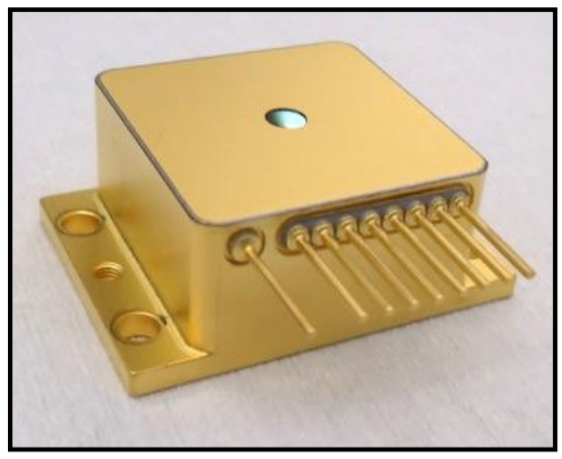

VERTICAL EMITTING HIGH HEAT LOAD (VHL) PACKAGE
OVERVIEW
・Thermo-electrically cooled. External heat sink still required.
・Sealed in a nitrogen-purged atmosphere.
・Package dimensions (approx): 1.75 x 1.25 x 0.72 in (excluding pins).

(LASER SPECIFICATIONS)
Process: DFB
Oper. Temperature: 15 – 45 °C
Facet Coating: Front AR / Back HR

(ELECTRO–OPTICAL CHARACTERIZATION)
Driving Conditions;
Operation Mode: CW
Temperature: 15 °C

Electrical;
Thresh. Current: 0.28 A
Thresh. Voltage: 11.7 V
Laser Efficiency: 3.1 %

Optical;
Center Wavelength: 5.18 µm

(SPECTRAL CHARACTERIZATION AND BEAM QUALITY)
Driving Conditions;
Operation Mode: CW

Wavelength Tuning;
Temperature: 0.59 nm/K
Current: 40.0 nm/A

SMSR: 30 dB
