型番:AP-ASE-2000 メーカー:AdValue Photonics 商品コード:L003224

1.95±0.03µm / 20mW 2 Micron ASE Light Source

波長: 1.92µm-1.98µm
出力: 20mW-20mW
テクノロジー: ASE Light Source
エネルギー安定性: ±5% (at 25 °C)
冷却方法: Forced air

< Optical Characteristics >
Operation mode: CW

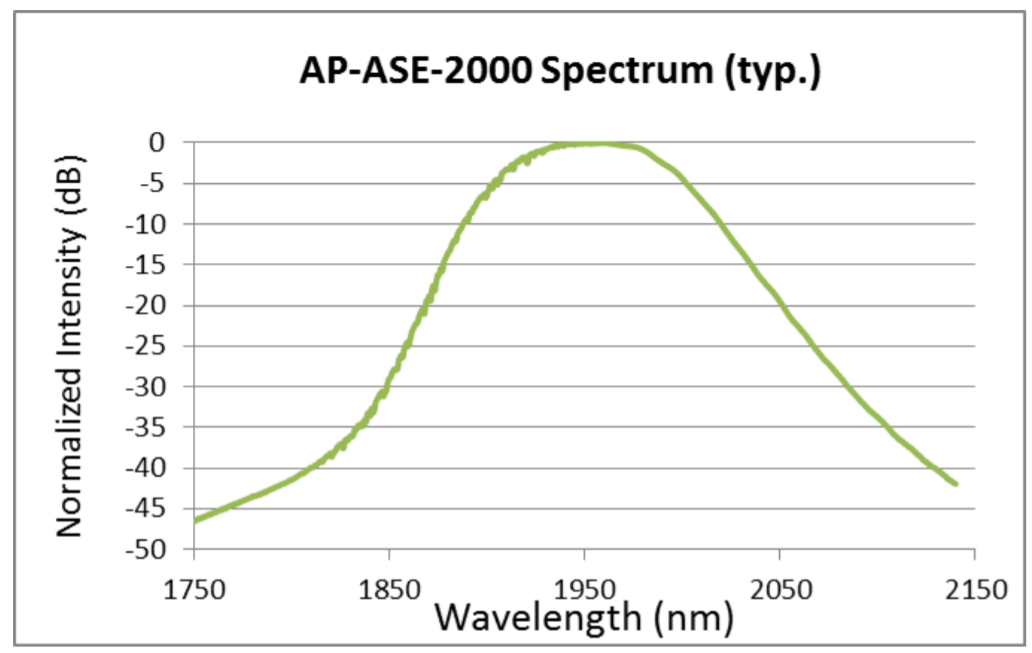

Center wavelength: 1.95±0.03 µm
Bandwidth (-20dB): >170 nm
Output power stability: ±5% (at 25℃)
Beam quality, M2: < 1.1
Output polarization: Random (option: linear polarization)
Output fiber and connector: SMF-28 single mode fiber, 3 mm jacket, 1 m length, FC/APC connector
(For special requirement, please contact AdValue Photonics for options.)

< General Characteristics >
Operating temperature: +10 to +35℃
Storage temperature: -10 to +65℃
Power requirement: AC 100~240 V (50/60Hz)
Warm-up time: 10 minutes
(Note: Higher output power is available based on request.)

< Features >
・Broadest bandwidth
・High output power
・Near diffraction limited beam quality
・Turn-key system with no maintenance

< Applications >
・Optical component testing
・Gas analysis
・Biomedical analysis
・Spectroscopy
・Research & development
