型番：FQS-200-1-532　メーカー：Elforlight Ltd.　商品コード：L003204

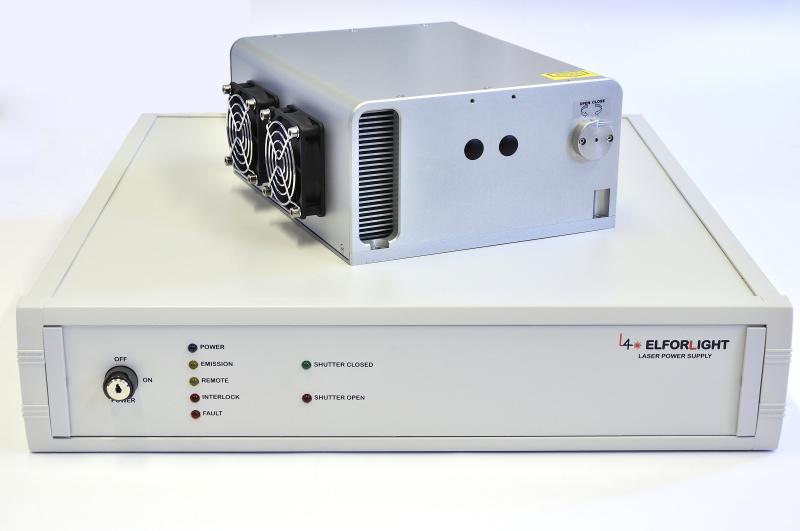

532nm / 200µJ　Q-Switched Laser Nanosecond (Elforlight)

FQS　データシート.pdf

波長: 532nm-
テクノロジー: Q-Switched Laser
パルス幅: < 5ns
ビーム径: 1mm at output aperture
拡がり角: < 1mRad at 1mm diameter
冷却方法: Air cooled

[Specification]
Pulse Energy @ 1kHz：> 200µJ
Repetition Rate：Up to 10kHz
Spatial Mode：TEM00, M2 < 1.2
Jitter：< +/- 1ns (typ. +/- 0.5ns) WRT ext. trigger input
Polarization：>100:1

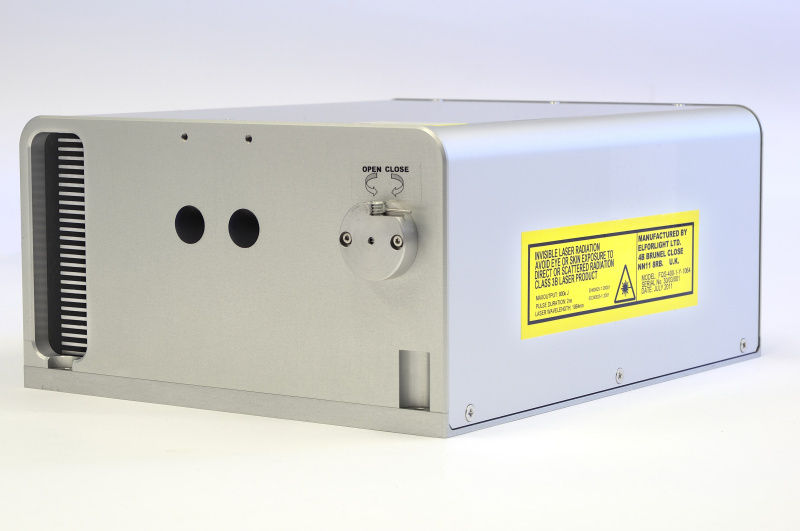

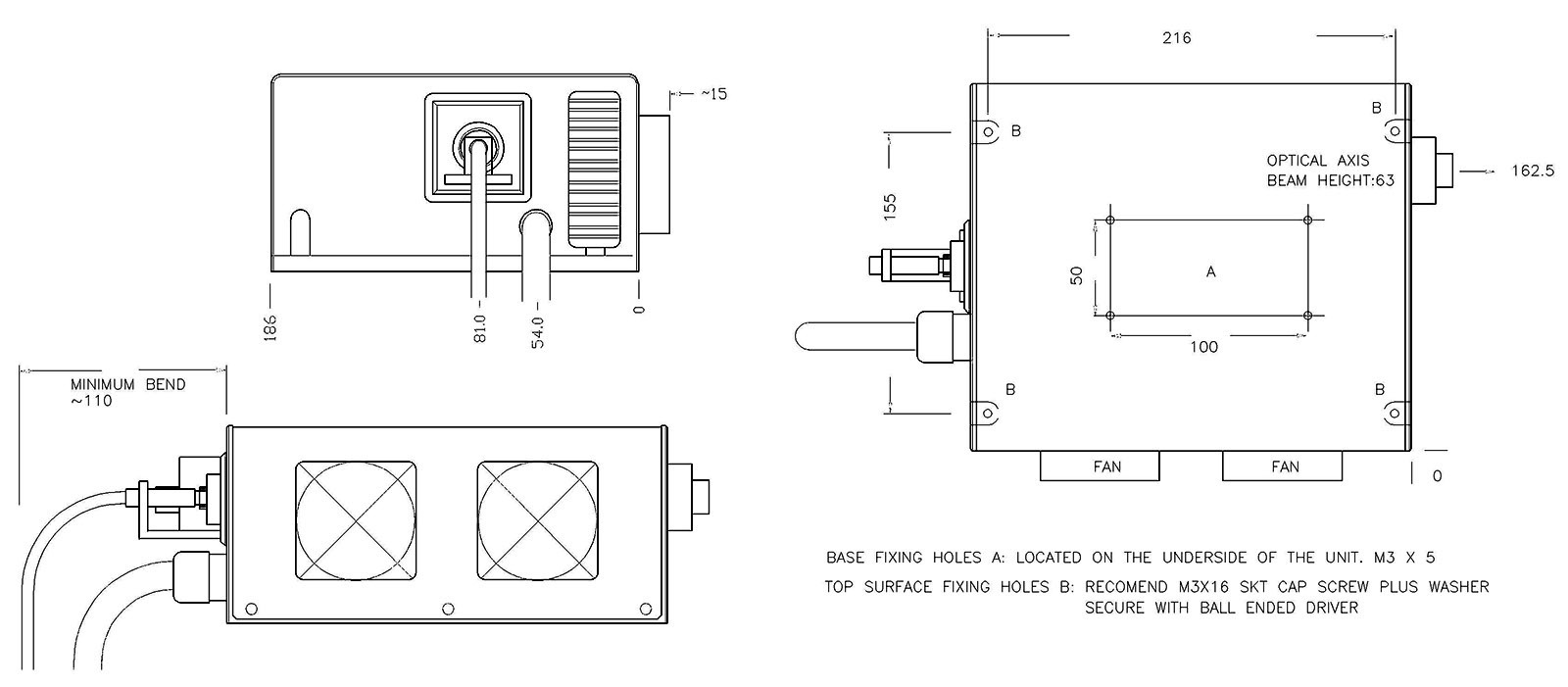

Laser Head Size：240mm x 210mm x 100mm

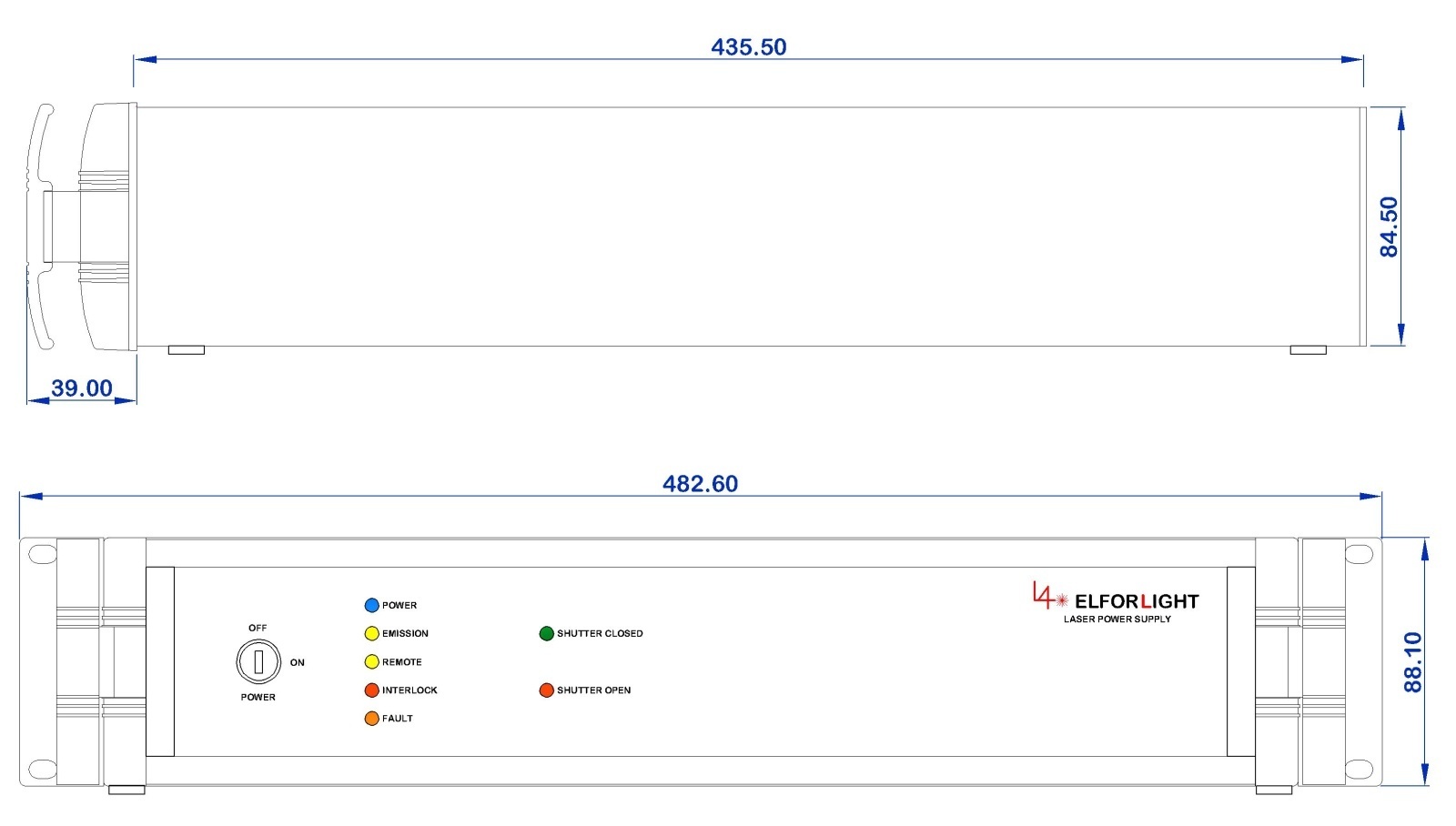

Power supply：2U high 19 inch rack
Power requirement：100 - 240 VAC, 50 / 60 Hz Max 1000W

[Overview]
The FQS range of products builds on the very successful SPOT laser technology. Adopting key technical design features, the FQS range produces a series of models delivering up to 400µJ with pulse widths at less than 5nsec. Jitter is maintained at a low level across the range. The compact laser head can be used to pump our dye laser products to produce a comprehensive range of wavelengths. The UV variant of the FQS has been very successful as a light source for MALDI applications.

[Features]
Variable power output
RS232 Control
Manual safety shutter
User interface (interlock, on/off switch)

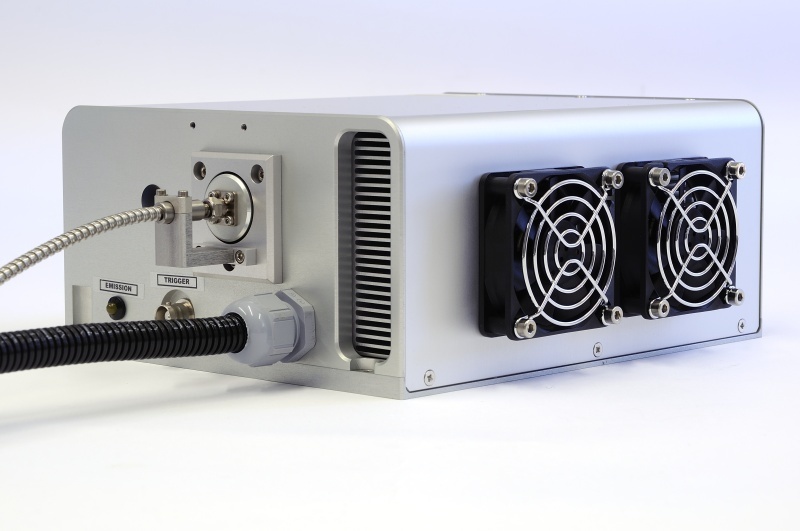

Air cooled

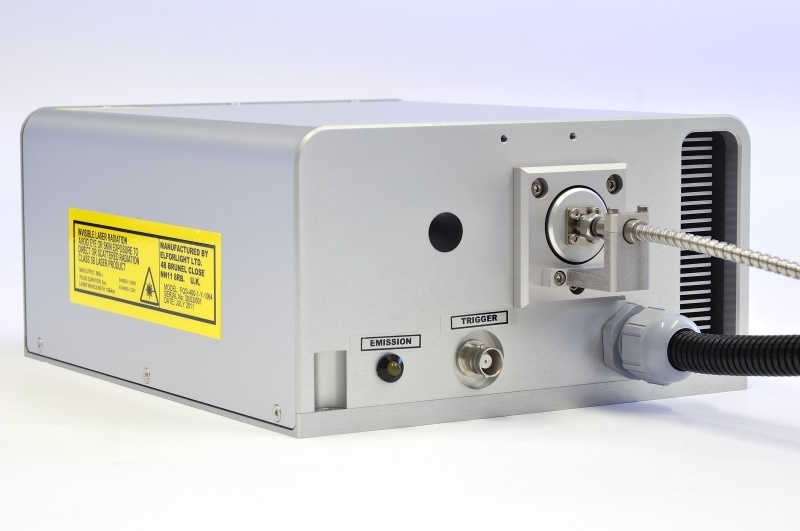

External trigger
Laser diode protection
19” rack power supply
Universal mains input
Designed and manufactured in the UK
