型番： メーカー：Coherent 商品コード：L000301
High-Brightness Bar, 795nm
波長: 795nm-795nm
出力: 30W-30W
パッケージ: fiber coupled module
テクノロジー: high power bar array

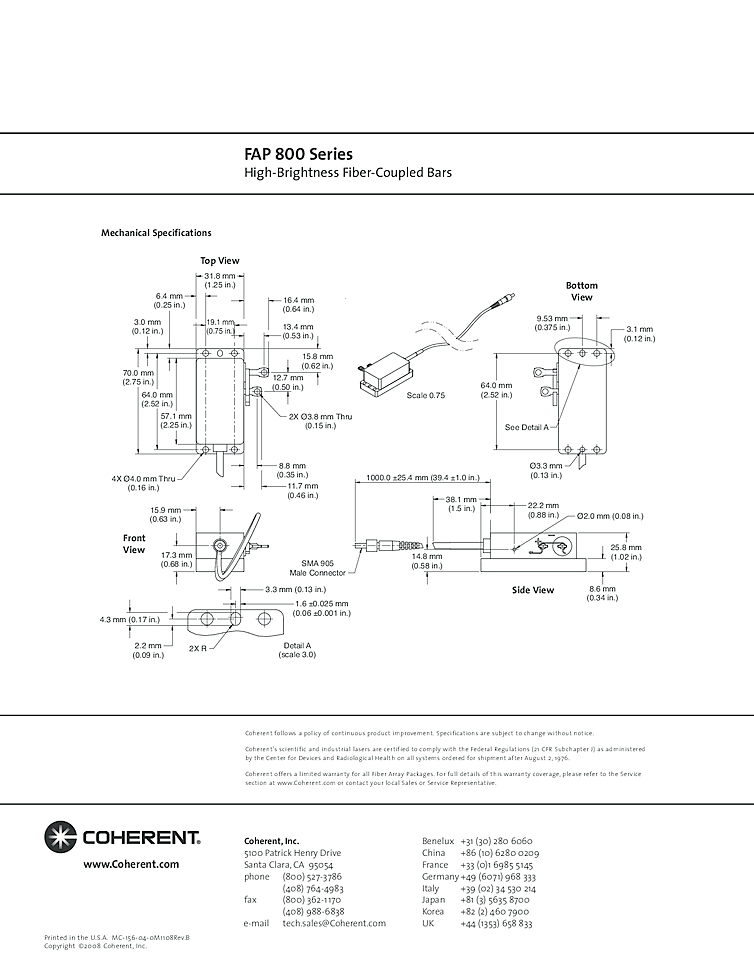

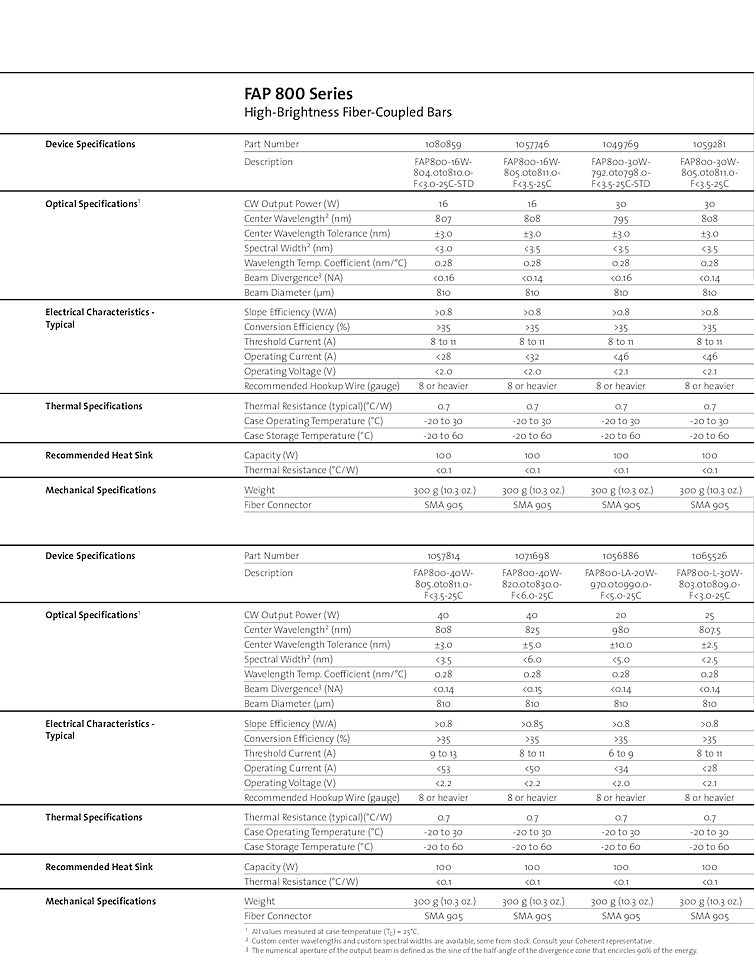

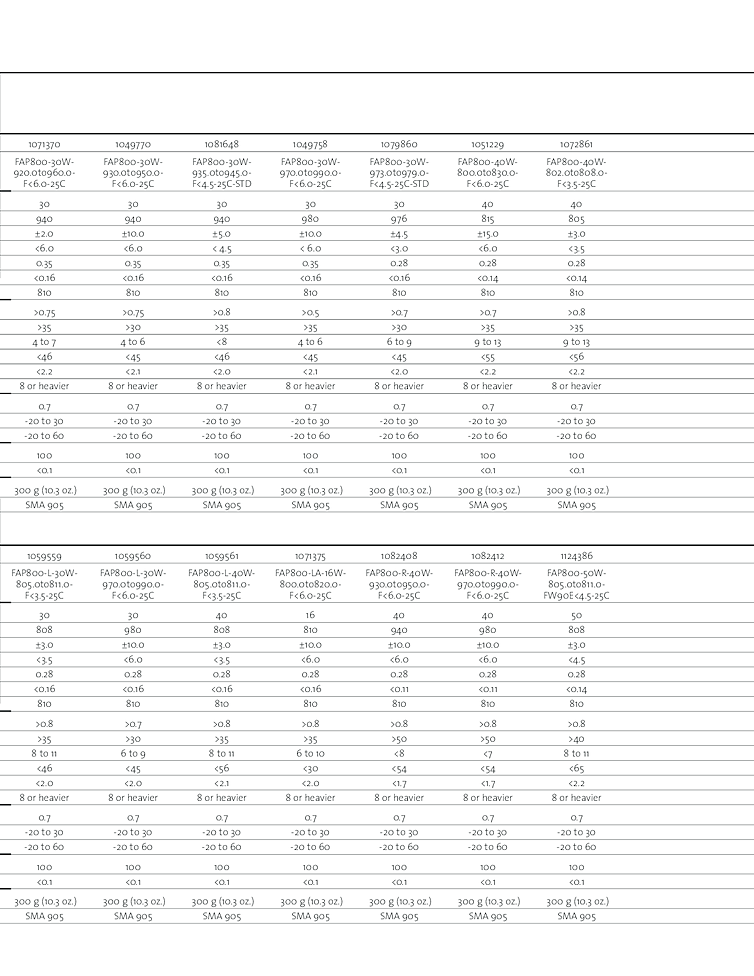

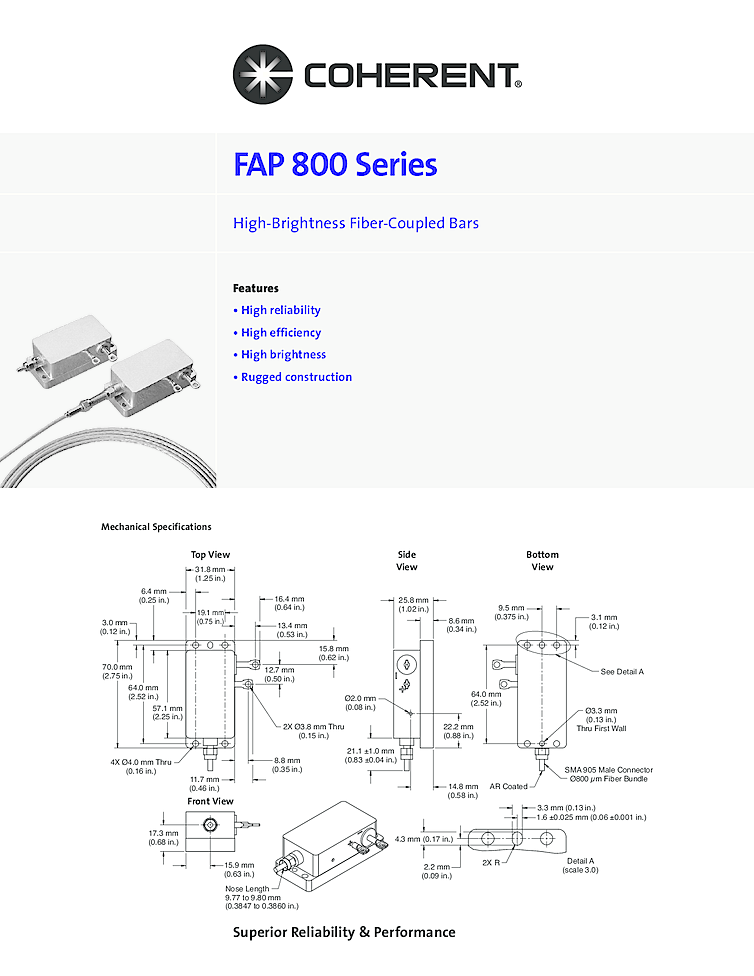

795nm laser diodes are high-brightness fiber-coupled bars from Coherent. These devices reference the following features and specifications on the attached data sheet. Features include high reliability, high efficiency, high brightness and rugged construction. CW Output Power is listed as 16W. Slope efficiency is listed as >0.8 W/A. Thermal resistance (typical) is specified as 0.7 C/W for this 795nm laser diode. Fiber Connector is SMA 905.
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
| 要問い合わせ | コヒレント・ジャパン株式会社 | ||
