型番：TEC-1090　メーカー：　商品コード：L002916

480 Watt Laser Diode Temperature Controller; Board Level OEM TEC Controller Module

480 Watt Laser Diode Temperature Controller; Board Level OEM TEC Controller Module
480 Watt Laser Diode Temperature Controller; Board Level OEM TEC Controller Module
480 Watt Laser Diode Temperature Controller; Board Level OEM TEC Controller Module
480 Watt Laser Diode Temperature Controller; Board Level OEM TEC Controller Module
480 Watt Laser Diode Temperature Controller; Board Level OEM TEC Controller Module
480 Watt Laser Diode Temperature Controller; Board Level OEM TEC Controller Module
480 Watt Laser Diode Temperature Controller; Board Level OEM TEC Controller Module
480 Watt Laser Diode Temperature Controller; Board Level OEM TEC Controller Module

メーカー希望小売価格: Request Price

Product Overview:

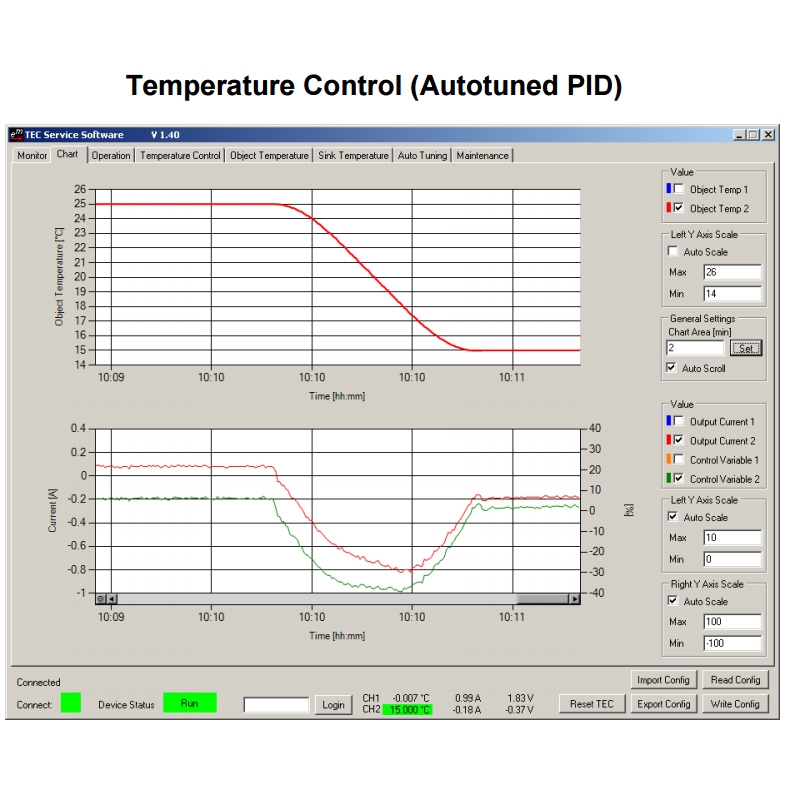

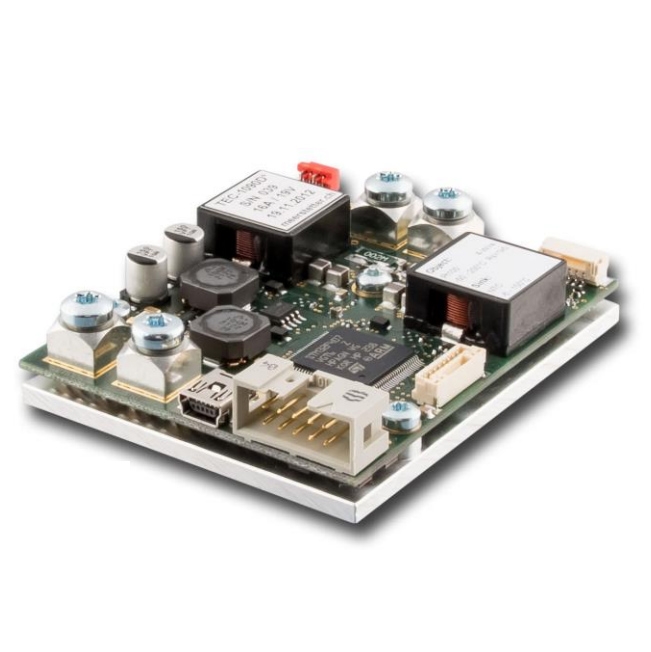

The TEC-1090 is a RoHS compliant, specialized TEC controller / power supply capable of precision-driving a single Peltier element. It features a true bipolar DC current source for cooling / heating, two temperature monitoring inputs (1x main, 1x auxiliary) and intelligent PID control with auto tuning.
The TEC-1090 is fully digitally controlled, it’s hard- and firmware offers numerous communication and safety options. It has an included PC-Software that allows configuration, control, monitoring and live diagnosis of the TEC controller via USB and RS485. All parameters are saved to nonvolatile memory. Saving can also be disabled for bus operation.
The TEC-1090 can handle either Pt100, Pt1000 or NTC temperature probes. For highest precision and stability applications, a Pt100 / 4-wire input configuration is recommended. The analog measurement circuit is factory calibrated.
The TEC-1090 is an OEM precision TEC controller that is primarily designed to operate as a stand-alone device. Further functionality includes Smooth temperature ramping, thermal stability indication and auto gain (NTC probes). The PC-Software allows data logging and configuration import/export.
The TEC-1090 has many features (hardware, software) that are customizable upon request. When configured as a DC power-supply, the TEC-1090 can handle current and voltage settings. In the remote-control case, temperature data may be passed on to be processed by the host.
