型番：PTC10000 メーカー： 商品コード：L002906

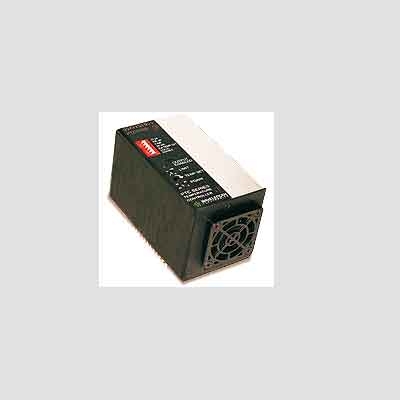

270 Watt Laser Diode Temperature Controller, Small PCB Mount
メーカー希望小売価格: $429
Product Overview:
The 270W TEC controller is a high-current linear temperature controller that deliver bidirectional current to Peltier Effect thermoelectric coolers, or unidirectional current to resistive heaters. It interfaces with a variety of temperature sensors, and the bias current is adjustable in order to maximize controller sensitivity and stability for your application temperature range and target setpoint. PTC10000 has a bias current accuracy of ±0.5% over full temperature range.
This TEC controller features built-in heatsink and fan that simplifies the controller’s thermal management. It also has onboard controls for maximum application versatility. In case of the remote temperature setpoint signal is lost, the controller defaults to a standard "safe" temperature setpoint (25ºC when a 10 kΩ thermistor is used).
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
|
代理店が登録されていません |
|||
