型番：OPT-LPLDD2　メーカー：　商品コード：L002880

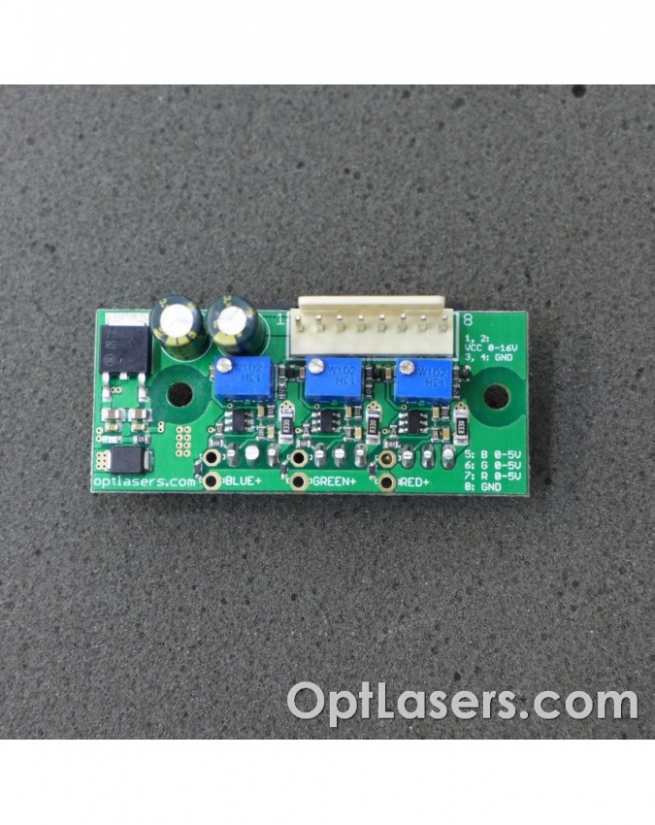

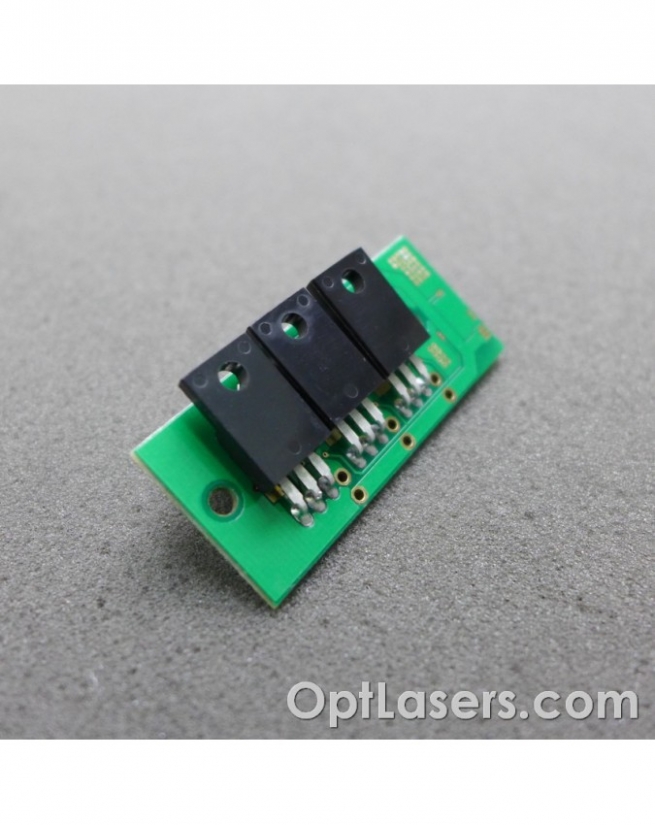

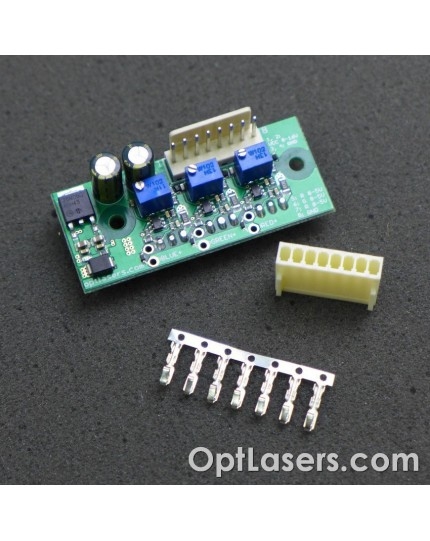

Low Cost 3 Channel Laser Driver Module, 3 x 1 Amp Outputs

Low Cost 3 Channel Laser Driver Module, 3 x 1 Amp Outputs
Low Cost 3 Channel Laser Driver Module, 3 x 1 Amp Outputs
Low Cost 3 Channel Laser Driver Module, 3 x 1 Amp Outputs
Low Cost 3 Channel Laser Driver Module, 3 x 1 Amp Outputs
Low Cost 3 Channel Laser Driver Module, 3 x 1 Amp Outputs
Low Cost 3 Channel Laser Driver Module, 3 x 1 Amp Outputs

メーカー希望小売価格: $125.00 電流: 1A-1A

Product Overview:
These affordable PCB mounted laser diode drivers offer a cost effective way to driver multiple laser diodes simultaneously. Originally designed for integration into red / green / blue laser control circuits in commercial products, these driver modules are now offered as an affordable laboratory driver. They include a 2000 millisecond slow start current ramp. They have 3 separate trim potentiometer adjustment knobs to set the amplitude of of current to each laser. The adjustment knob controls are clearly identified on the PCB to make operation and set-up simple and intuitive. There are output connectors for each laser. These units do not offer temperature protection for the laser diode under test, and the driver PCB should by mounted by the user to an aluminum heat sink for proper operation.
