型番：LDD-Series　メーカー：　商品コード：L002866

Laser Diode Driver with Ranges from 15 Amps to 300 Amps from Lumina Power

Laser Diode Driver with Ranges from 15 Amps to 300 Amps from Lumina Power
Laser Diode Driver with Ranges from 15 Amps to 300 Amps from Lumina Power
Laser Diode Driver with Ranges from 15 Amps to 300 Amps from Lumina Power
Laser Diode Driver with Ranges from 15 Amps to 300 Amps from Lumina Power
Laser Diode Driver with Ranges from 15 Amps to 300 Amps from Lumina Power
Laser Diode Driver with Ranges from 15 Amps to 300 Amps from Lumina Power
Laser Diode Driver with Ranges from 15 Amps to 300 Amps from Lumina Power
Laser Diode Driver with Ranges from 15 Amps to 300 Amps from Lumina Power
Laser Diode Driver with Ranges from 15 Amps to 300 Amps from Lumina Power
Laser Diode Driver with Ranges from 15 Amps to 300 Amps from Lumina Power

メーカー希望小売価格: Request Price 電流: 15A-15A
電圧: 200V-200V

Product Overview:
The LDD series is a new family of state-of the art OEM laser diode drivers designed for the emerging high power laser diode industry. This series is ideal for high power applications while still offering reasonable rates without compromising its performance. Its’ compact size is possible due to the low-loss Zero Voltage Switching inverter and incorporation of planar magnetics.
The LDD is virtually wire free. It easy to setup without the hassle of wires and cables.  The LDD series features a power factor is greater than 0.99. The conducted emissions meet stringent European regulations. No additional line filters required to meet EN 55011 emission requirements.

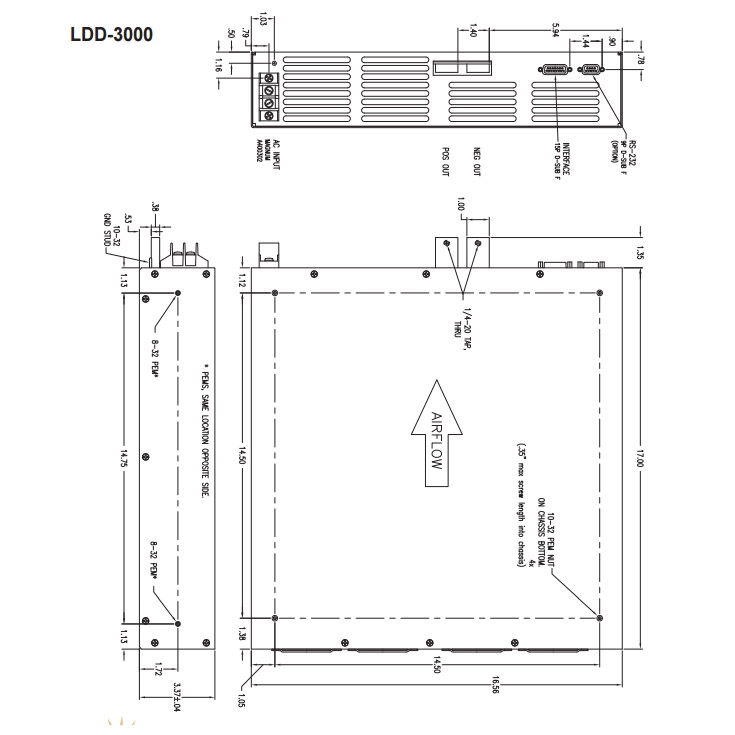

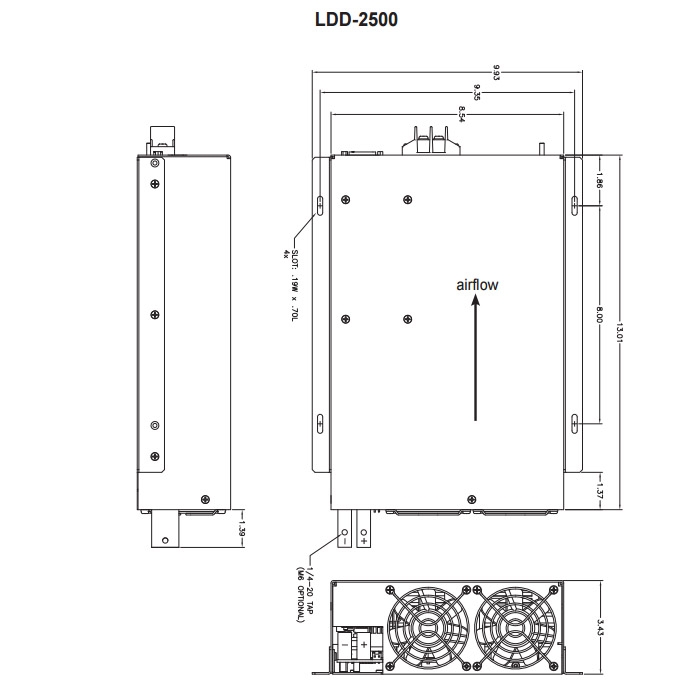

The LDD-Interface uses a 15 Pin D-Sub female connector type. It also features an interlock function can be connected to external interlock switches such as door or overtempswitches. The output of the LDD-2500/3000/6000 may be pulsed by applying a TTL signal to Pulse Control, pin 8. The amplitude of the output current pulse is determined by the current level programmed via Pin 7, Iprogram(+).
The LDD series has been designed with the knowledge that a high power laser diode is an expensive device. Rise and fall times are strictly controlled to reduce high voltage transients which could damage the laser diode.
