型番:OPTLDD003 メーカー: 商品コード:L002844

60 Amp, Low Cost High Power Laser Diode Driver Circuit with Built-In Current Limit

メーカー希望小売価格: $295.00 電流: 60A-60A

Product Overview:

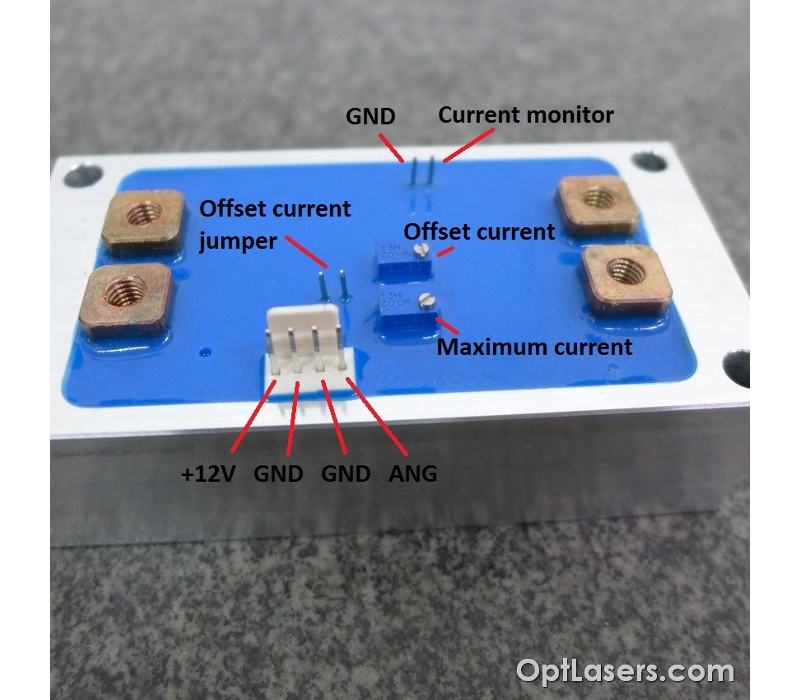

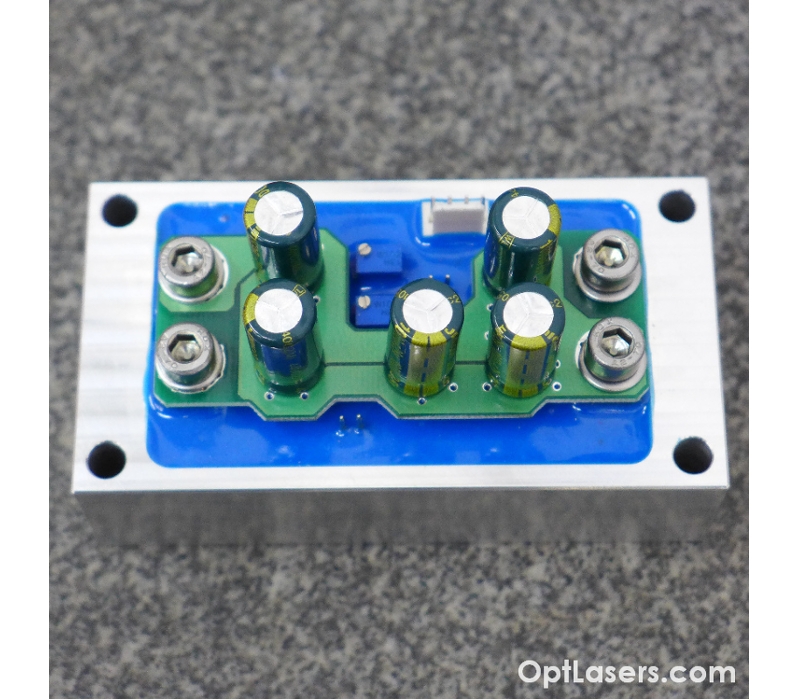

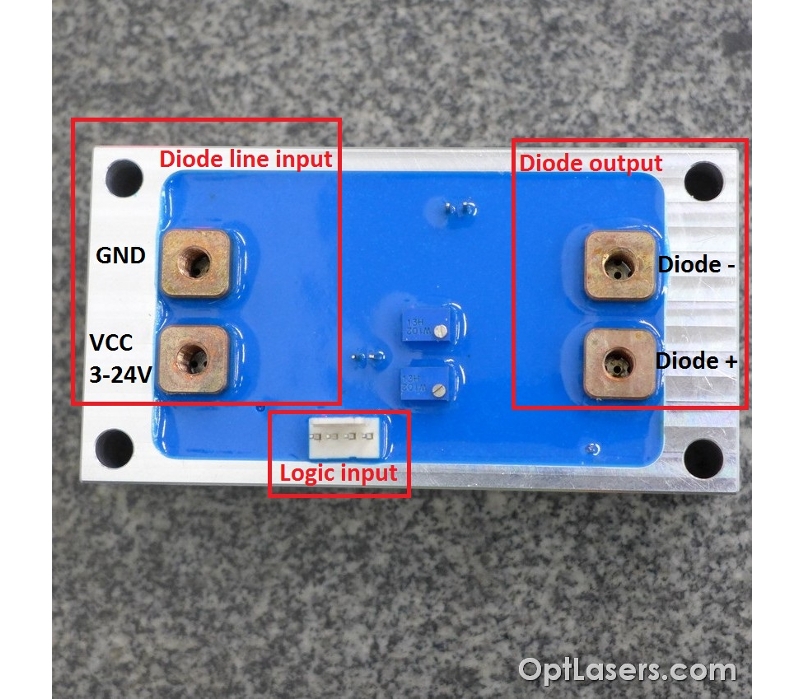

This 60 amp driver is a professional high power driver dedicated to powering infrared laser diodes. This affordable module offers a modulation of the drive current with frequency up to 5 kHz. If you need higher modulation frequency, please inquire about the 20 kHz version of this product. It can work with 20 Watt, 40 Watt, and 60 Watt CS-mount 808nm, 940nm and 980nm laser diodes. It also works with many other similar diode types. With this driver you can power one diode or several diodes in series. Also, this module can be used for one diode stack which requires high operating voltages. Please contact Laser Lab Source or Opt Lasers for detailed instructions on how to choose the maximum input voltage and for the operating manual. Separate laser diode supply voltage inputs and logic input voltages allow these units to minimize the switch on resistance of a power MOSFET. The inner layer of the heat sink is made of copper and helps in fast heat transmission and power dissipation. The outer body of the heat sink base, made of aluminium, is isolated from all signals on the driver including the ground signal. This allows the user to mount the driver directly to the metal chassis of a product in case additional cooling is needed.
