型番：　メーカー：Ekspla Ltd.　商品コード：L002814

1064nm Fiber Laser, Picosecond, 2nJ

1064nm Fiber Laser, Picosecond, 2nJ
1064nm Fiber Laser, Picosecond, 2nJ
1064nm Fiber Laser, Picosecond, 2nJ
1064nm Fiber Laser, Picosecond, 2nJ
1064nm Fiber Laser, Picosecond, 2nJ
1064nm Fiber Laser, Picosecond, 2nJ

波長: 1064nm-1064nm
テクノロジー: Fiber Laser

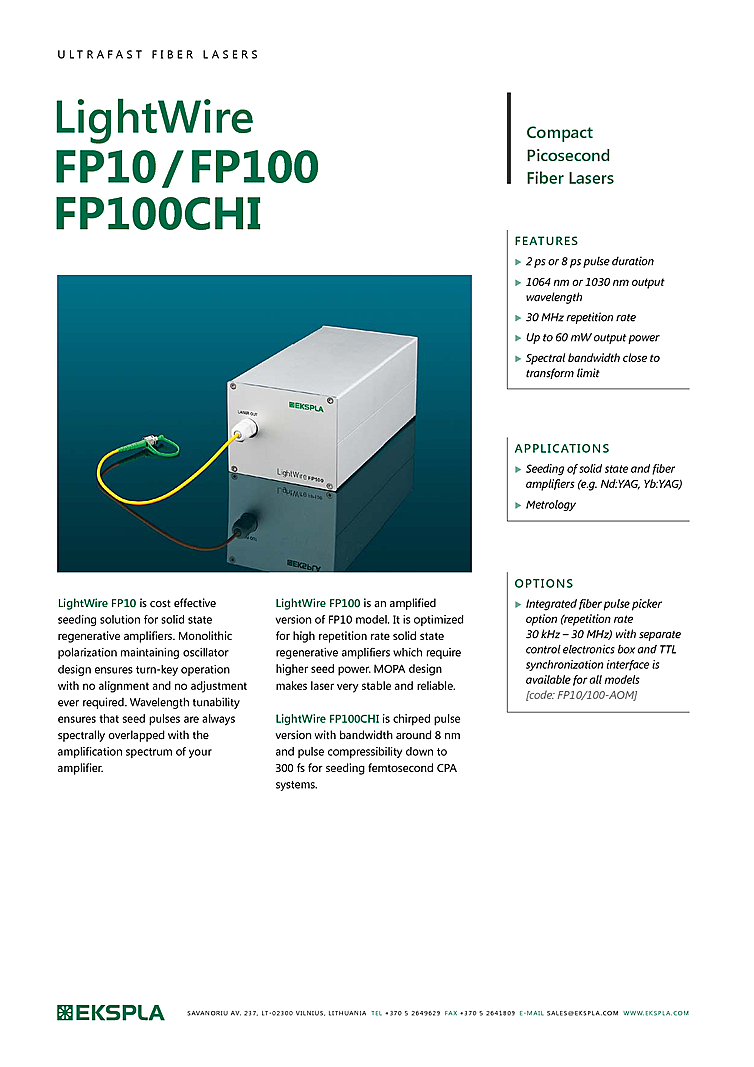

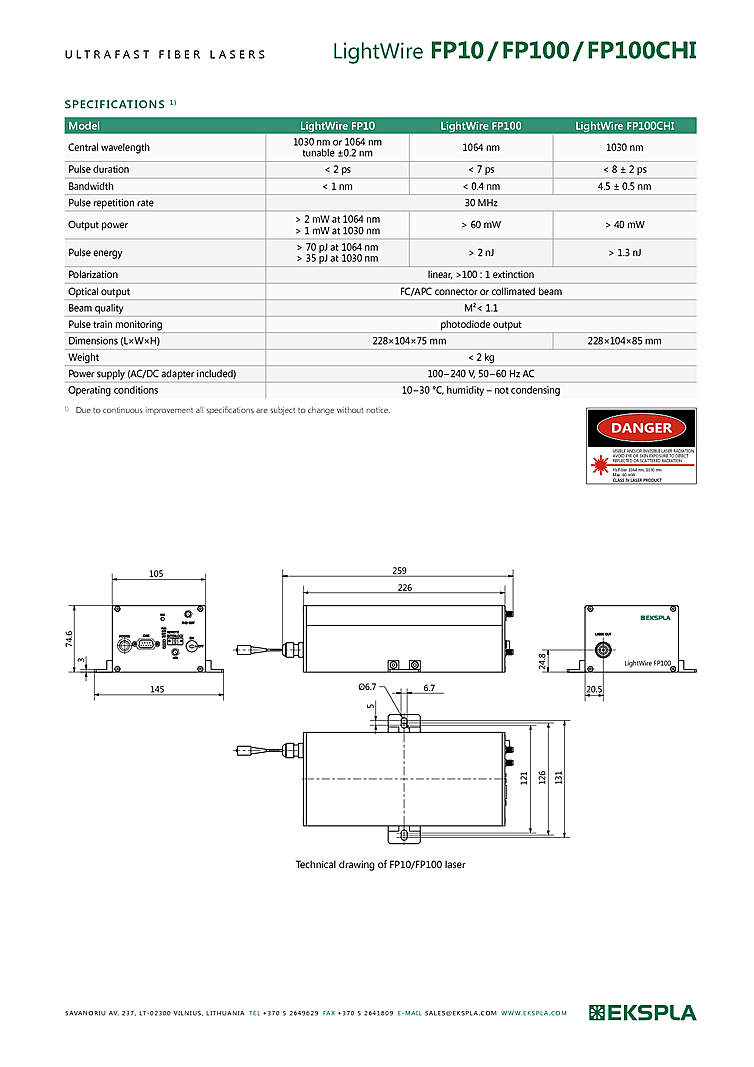

Fiber laser with picosecond pulse output from Ekspla. Pulse duration 2 ps or 8 ps with 30MHz repetition rate. Applications for seeding lasers or metrology. Careful attention to the design of the fiber laser provides a beam quality of M2 less then 1.1 with a polarization linear output less then 100 : 1 extinction. Picosecond laser output can either be fiber coupled with a FC/APC connector or collimated beam. This picosecond laser has been optimized with a high repetition rate for solid state regenerative amplifiers which typicaly require higher seed power. The laser utalizes a MOPA design for long term stability and reliability. Options for this Ekslpa laser include integrated fiber pulse picker with a reptition rate from 30kHz to 30 MHz wtih a seperate TTL synchronization interface and control electronics. Fiber laser with 2nJ output energy and up to 60mW output power with a wavelength 1064 nm.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 株式会社東京インスツルメンツ
