型番： メーカー：YSL Photonics 商品コード：L002806
Picosecond Laser, 1030nm, 100W
波長: 1030nm-1030nm
出力: 100W-100W

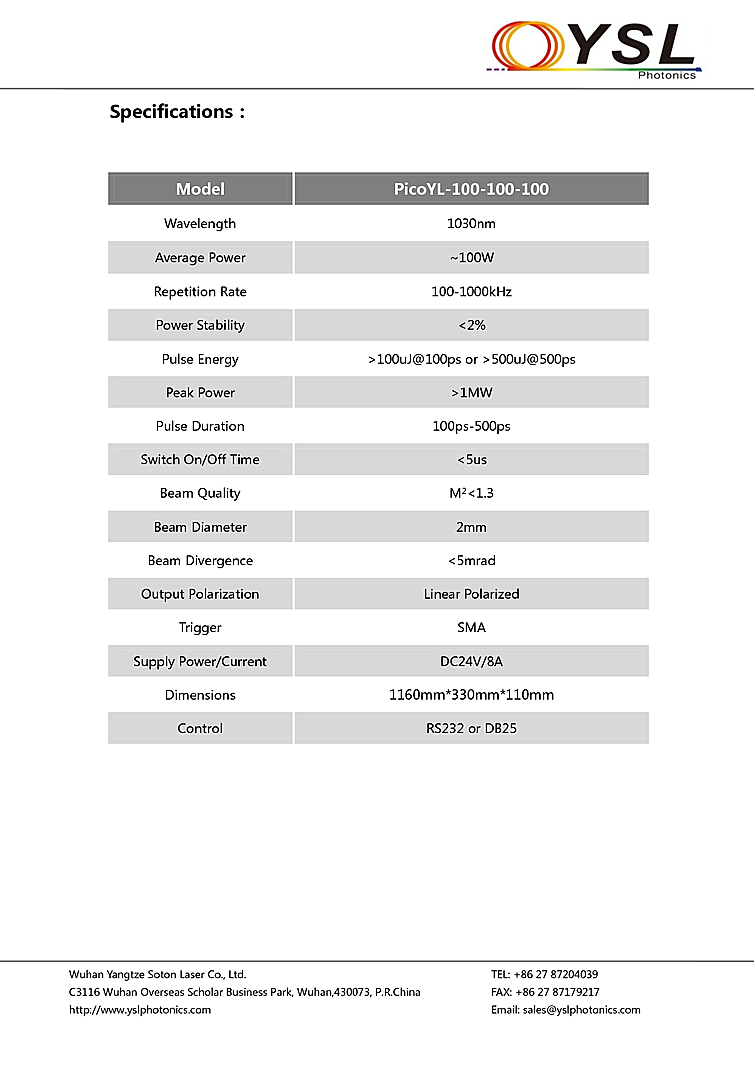

Fiber laser with pulse energy output and continuously tunable pulse from duration YSL Photonics. Applications for the fiber laser include Sapphire Dicing and Drilling, Ion Battery Foil Cutting, Glass Dicing and Drilling, Silicon or SiC Dicing, Metal Marking, Chrome Vanadium Texturing, and Micromaching of Transparent materials. Key features of the picosecond pulsed fiber laser include minimum pulse duration 100ps, peak power up to 1 mega-watts, and burst mode function. Beam aiameter of 2mm with a divergence <5mrad and beam quality of M2<1.3. Fiber laser repetition rate of 100kHz-1MHz provides pulse energy up to 500µJ at 500ps at a wavelength of 1030nm.
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
|
代理店が登録されていません |
|||
