型番：　メーカー：TekhnoScan　商品コード：L002629

CW Laser, tunable 260nm-1100nm

波長: 260nm-1100nm
出力: 4W-4W

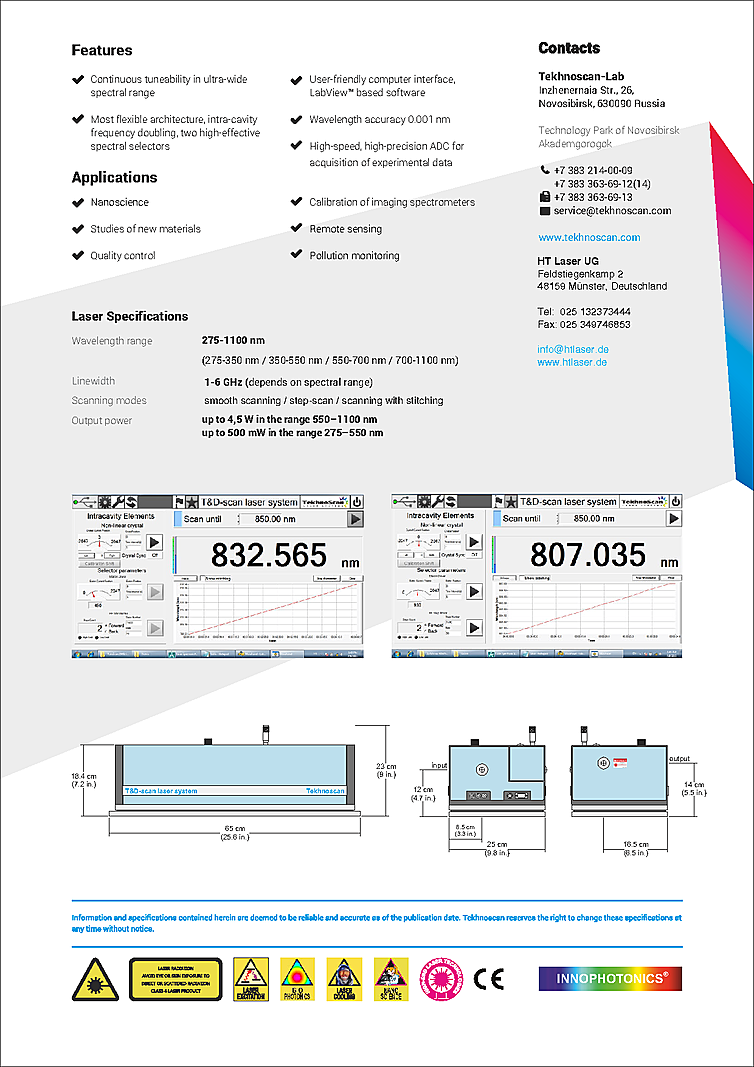

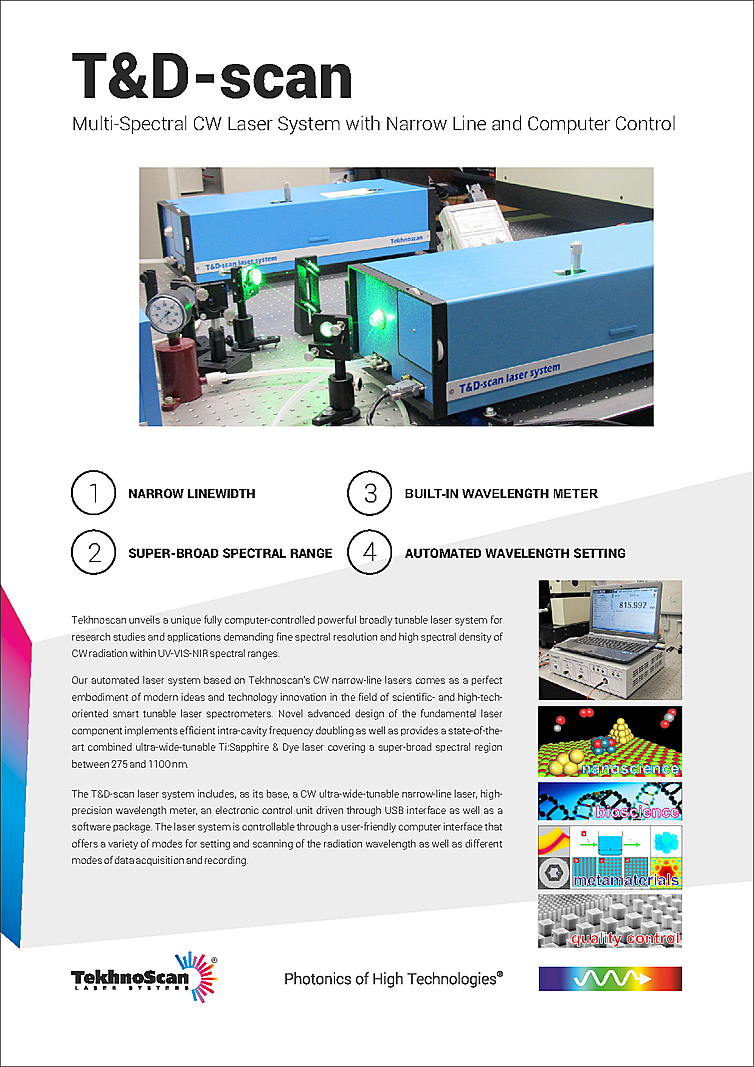

"Fully automated laser system (line-width < 1 GHz) comes as a perfect embodiment of modern ideas and technology innovation in the field of nanotechnology-oriented smart tunable laser spectrometers. Novel advanced design of the fundamental laser component implements efficient intra-cavity frequency doubling as well as provides a state-of-the-art combined ultra-wide-tunable Ti:Sapphire & Dye laser covering a super-broad spectral region between (260 nm) 275 nm and 1100 nm.
The ""T&D-scan"" laser system includes, as its base, a CW ultra-wide-tunable narrow-line laser, high-precision wavelength meter, an electronic control unit driven through USB interface as well as a software package.
The laser system is fully controllable through a user-friendly computer interface that offers a variety of modes for setting and scanning of the radiation wavelength as well as different modes of data acquisition and recording.
The ""T&D-scan"" features LabView based software running under Windows 10. For acquisition of experimental data an 8-channel 14/16-bit ADC is used with quantisation frequency of 2/3 MHz and channel multiplexing frequency 2/3 MHz.
The ""T&D-scan"" system is designed for wide-range spectral studies and characterisation of quantum semiconductor structures, meta-materials, as well as for nano-technological applications, and quality control."

見積りBOXへ入れる欲しい物リストに登録

メーカーWebサイトへ

価格	地域	代理店
代理店が登録されていません

CW Laser, tunable 260nm-1100nm
