型番： メーカー：三菱電機株式会社 商品コード：L000258
638nm 1 Watt Laser Diode
波長: 638nm-638nm
出力: 1000mW-1000mW
パッケージ: TO-can
テクノロジー: n/a

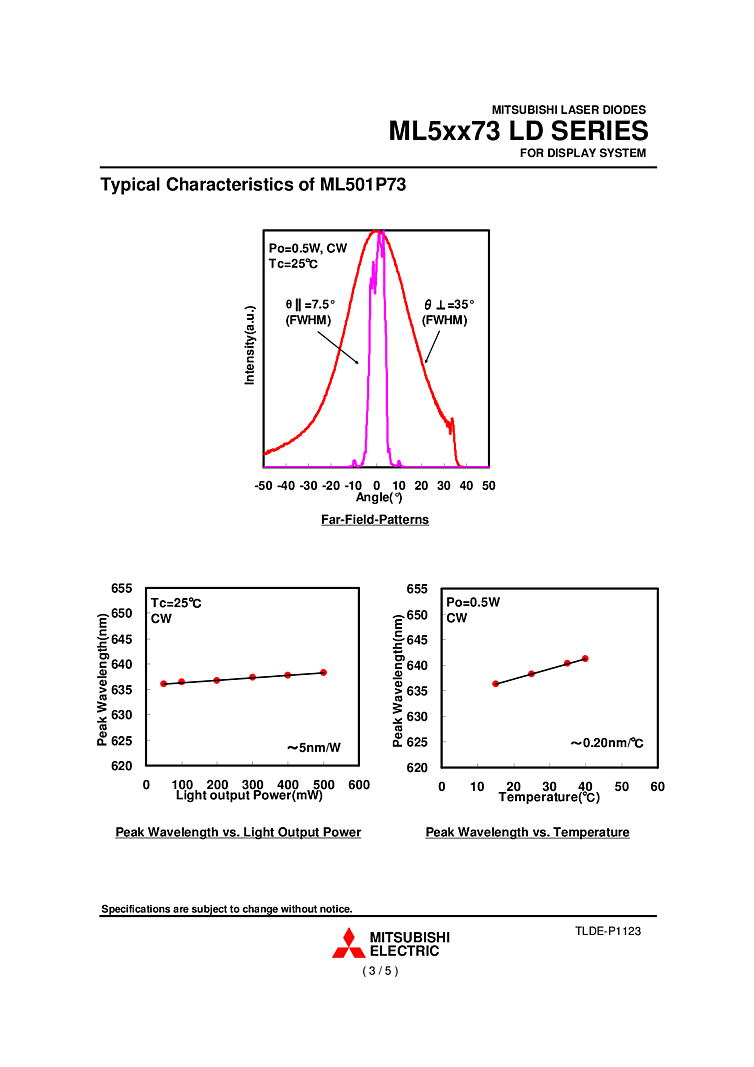

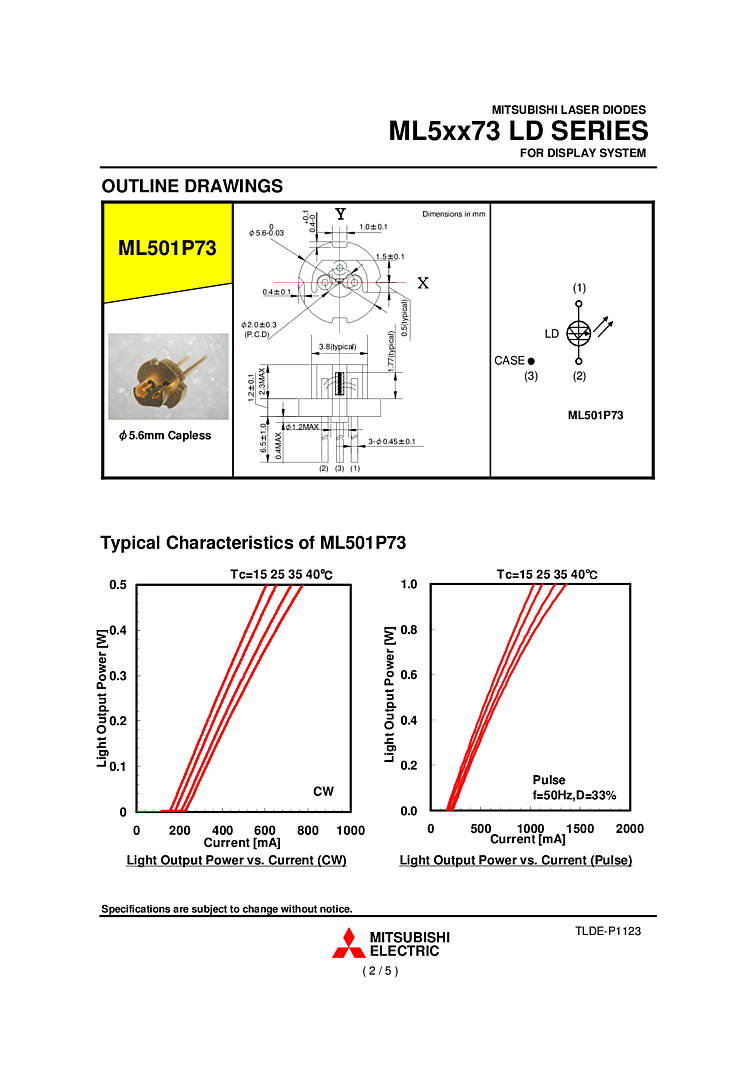

638nm Mitsubishi ML501P73 is a high-power, highly efficient semiconductor laser diode which provides emission wavelength of 638 nm and standard light output of 1.0W (pulse) and 0.5W (CW). This LD has broad-stripe structure which enables high output power.
Features -
High Output Power: 1.0W (Pulse)
0.5W (CW)
High Efficiency: 1.0mW/mA (typ.)
Visible Light: 638nm (typ.)
5.6mm Capless PKG
Applications include display systems and Bio-medical.
