型番:AP-QS1 メーカー:AdValue Photonics 商品コード:L002552

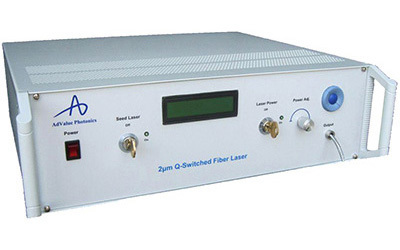

1.95µm / 5W 2 µm Q-Switched Fiber Laser

波長: 1.95µm-1.95µm
出力: 5W-5W
パルスの最大繰返し: 10000Hz - 30000Hz
エネルギー: 250µJ-250µJ
テクノロジー: Q-Switched Fiber Laser
パルス幅: 20 to 200 ns options
冷却方法: Forced air

< Optical Characteristics >
Operation mode: Pulsed
Operating wavelength: 1.95 µm (option: 1.92-2.0 µm)
Average power: 5 W nominal (higher or lower power available)
Pulse energy: 250 µJ (higher or lower pulse energy available)
Beam quality, M2: < 1.3
Output power stability: Within ±5%
Output polarization: Random
Output delivery: Optical fiber armored cable terminated with collimator or SMA connector
(For special requirement, please contact AdValue Photonics for options.)

< General Characteristics >
Operating temperature: 0 to +30℃
Storage temperature: -10 to +70℃
Power requirement: AC 100~240 V (50/60Hz)
Warm-up time: 10 minutes

< Features >
・Customizable operating wavelength
・Nanosecond pulses
・High peak power
・Near diffraction limited beam quality
・Turn-key system with no maintenance

< Applications >
・Mid-IR generation
・Nonlinear optics studies
・Spectroscopy
・Research & development
