型番：AP-P-SF-1550　メーカー：AdValue Photonics　商品コード：L002513

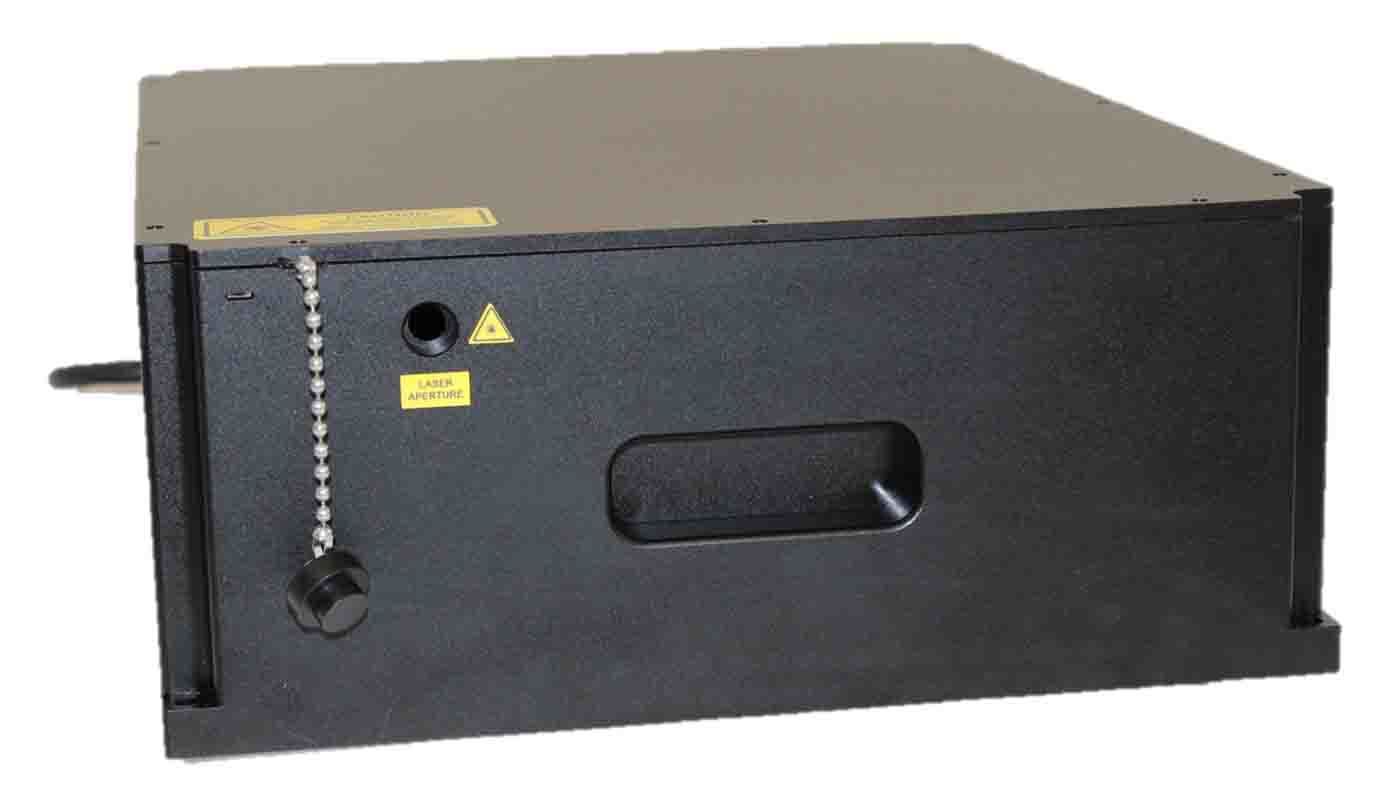

1.55µm / 10W　Pulsed Single Frequency Fiber Laser

1.55µm / 10W　Pulsed Single Frequency Fiber Laser
1.55µm / 10W　Pulsed Single Frequency Fiber Laser
1.55µm / 10W　Pulsed Single Frequency Fiber Laser
1.55µm / 10W　Pulsed Single Frequency Fiber Laser

AP-P-SF-1550 データシート.pdf

波長: 1.55µm-1.55µm
出力: -10W
パルスの最大繰返し: 1000Hz - 10000Hz
エネルギー: -1 mJ
テクノロジー: Single Frequency Fiber Laser
パルス幅: 2 ns to 300 ns (non-adjustable, factory selectable)
冷却方法: Water cooled

< Optical Characteristics >
Operation mode: Pulsed
Spectral linewidth: Single Frequency (single longitudinal mode)
Pulse repetition rate: 1 kHz to 10 kHz (non-adjustable, factory selectable)
Beam quality, M2: < 1.2
Output polarization: Linear Polarization
Output delivery: Free-space collimated beam ~ 1 mm diameter (beam expansion available)
(For special requirement, please contact AdValue Photonics for options.)

< General Characteristics >
Operating temperature: +10 to +35℃
Storage temperature: -10 to +70℃
Power requirement: AC 100~240 V (50/60Hz)
Warm-up time: 10 minutes

< Features >
・Single longitudinal mode
・High pulse energy
・Customizable operating wavelength
・Nanosecond pulses
・Near diffraction limited beam quality
・Turn-key system with no maintenance required

< Applications >
・LIDAR
・Frequency Conversion
・Mid-IR generation
・Spectroscopy
