型番：AMNLS005　メーカー：　商品コード：L002510

EDFA, 1550nm C-Band, Output Power up to 10 Watts, High Reliability Turnkey Benchtop Laboratory R&D Instrument

メーカー希望小売価格: Request Price 波長: 1550nm-1550nm
出力: 1W-10W
テクノロジー: Fiber Laser

Product Overview:

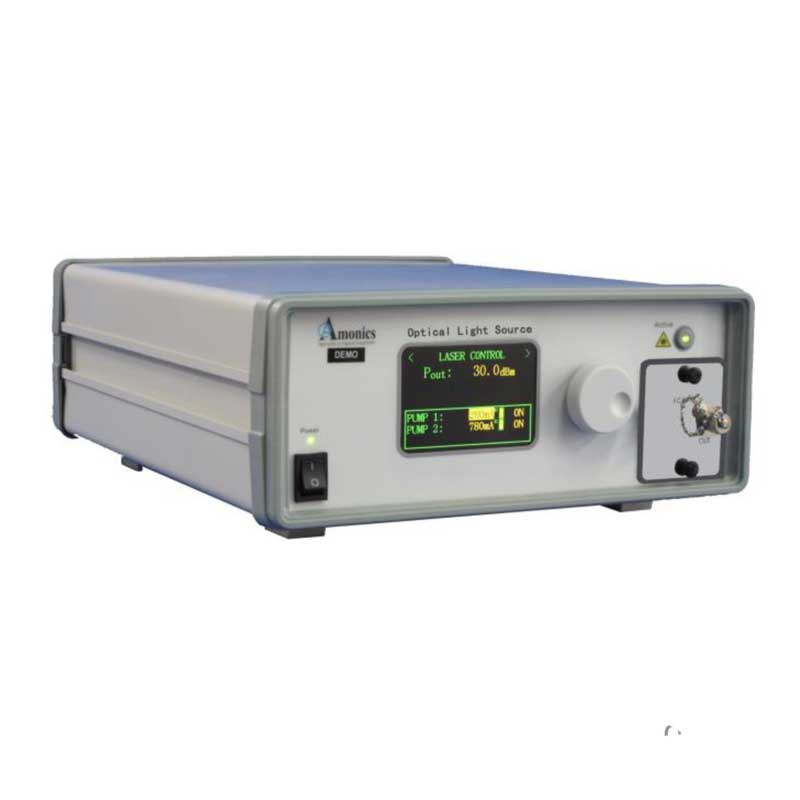

These high power 1550nm erbium doped fiber amplifiers (EDFA's) offer up to 10 Watts of output power from an affordable benchtop instrument. These units provide full control over the power and gain through user control of the pump(s) laser diode current levels, or by setting the instrument into a gain feedback or power feedback mode. Settings can be made via an easy to use front panel with an intuitive menu and control knob or by remote interface. LabVIEW based control software is available and ships free of charge. Please contact us if you would like to view the Operating Manual or see the command set.

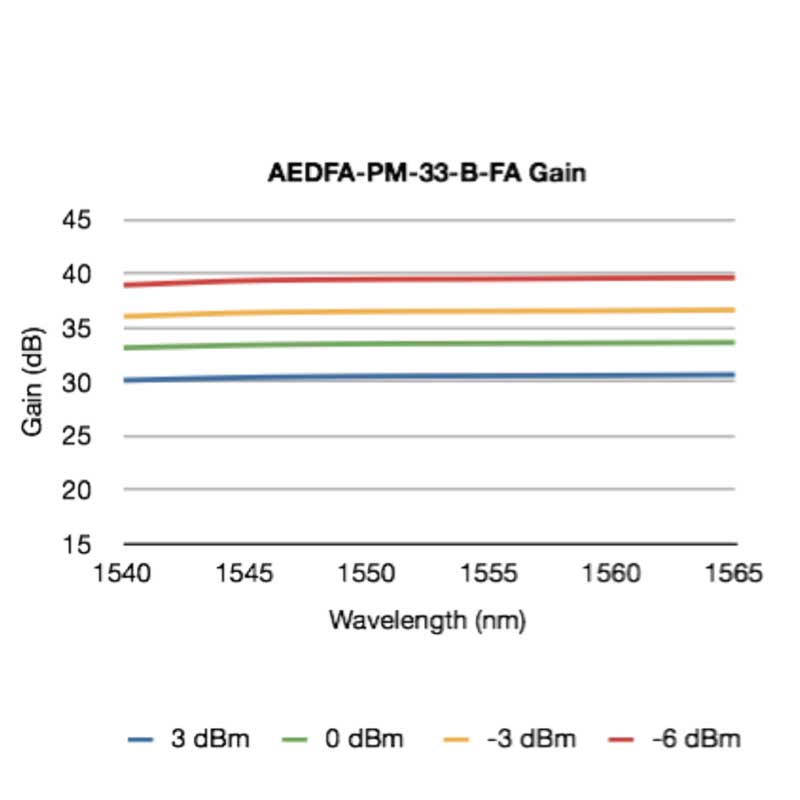

These EDFA's utilize high reliability Telcordia qualified 980nm pump lasers as well as Telcorida qualified combiners. The principal of operation is the laser light from these pump wavelengths and power level excite the erbium ions embedded in the fiber from their ground state to achieve the resultant high excitation levels and the commensurate high gain levels of up to 35 dB.

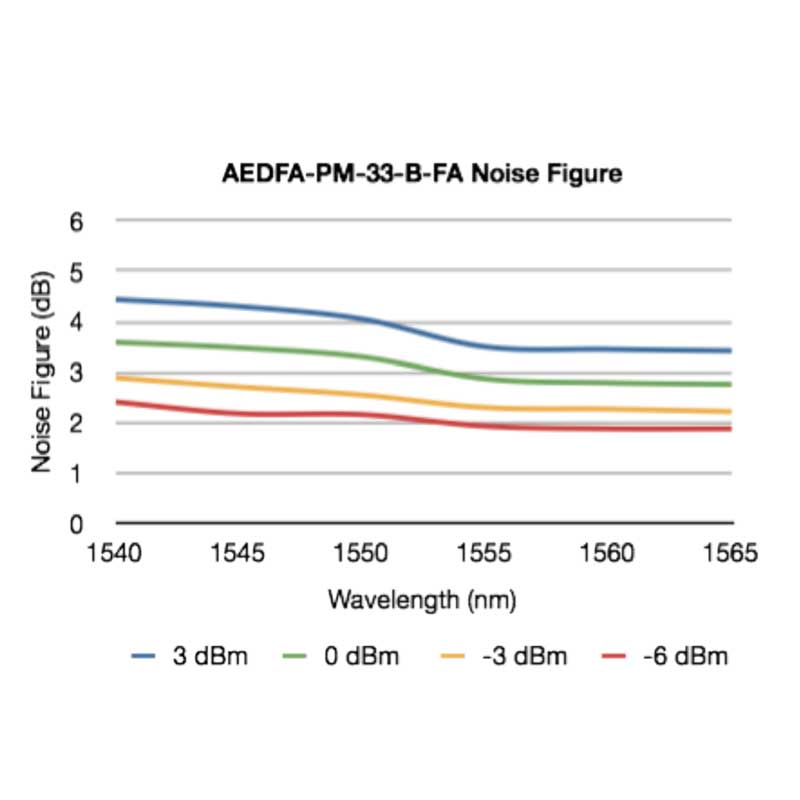

Careful attention to component selection and circuit board design allow these 1550nm range EDFA's to product high gain at a low noise level. Noise levels of < 5 dB with a very flat gain profile over the C-Band make these instruments ideal for many applications.

見積りBOXへ入れる欲しい物リストに登録

価格	地域	代理店
代理店が登録されていません

EDFA, 1550nm C-Band, Output Power up to 10 Watts, High Reliability Turnkey Benchtop Laboratory R&D Instrument
