型番：　メーカー：Cybel-LLC　商品コード：L002487

Fiber Laser, Nanosecond, 1064nm, 1000mW

Fiber Laser, Nanosecond, 1064nm, 1000mW
Fiber Laser, Nanosecond, 1064nm, 1000mW
Fiber Laser, Nanosecond, 1064nm, 1000mW
Fiber Laser, Nanosecond, 1064nm, 1000mW

波長: 1064nm-1064nm
出力: 1000mW-1000mW
テクノロジー: Fiber Laser

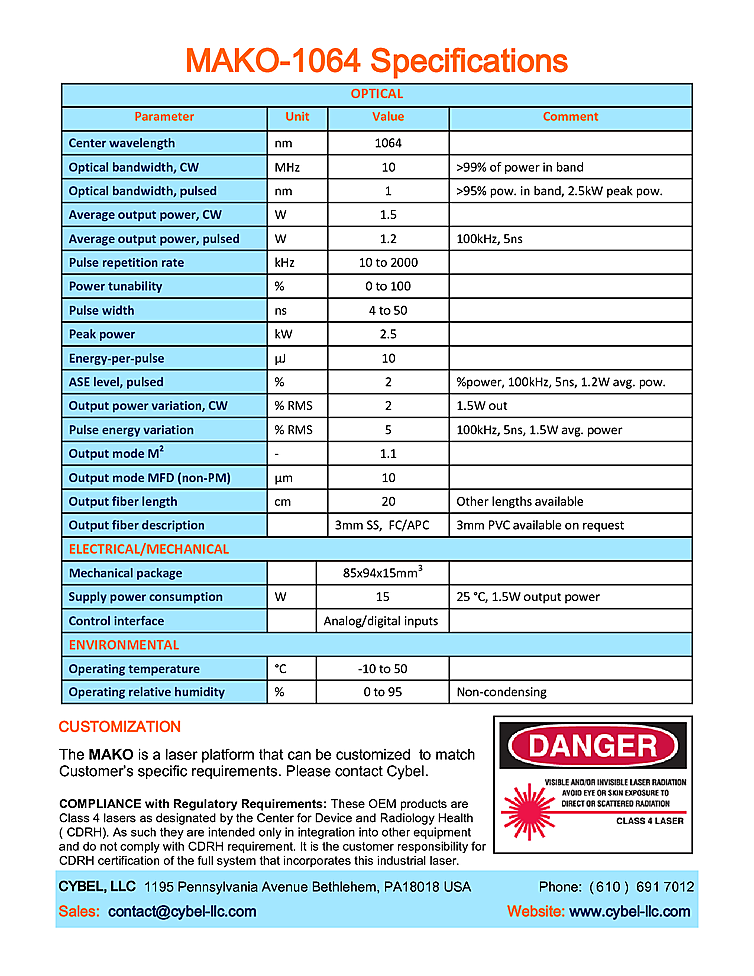

Fiber laser from Cybel features a dual operating mode; CW and nanosecond pulsed output. The nanosecond laser was designed to be integrated to systems and used in applications including Frequency conversion, Seed laser and Range finding. In CW operation the fiber laser can output up to 1.5 watts. In pulse mode the laser pulse repetition range is 10kHz to 2MHz over a pulse duration of 4ns to 50ns. Pulse energies up to 10µJ are output from the fiber laser with a maximum peak power of 2.5kW. Fiber laser output wavelength is 1064nm.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 京都府 株式会社光響
