型番：AP-515　メーカー：AdValue Photonics　商品コード：L002437

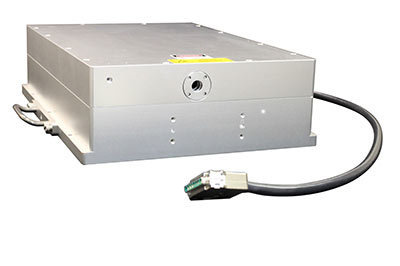

515nm / 10W-50W　EVERESTnano Green Pulsed Laser

波長: 515nm-515nm
出力: 10W-50W
パルスの最大繰返し: < 100Hz - 1000Hz
エネルギー: 100 µJ-100 µJ
テクノロジー: Green Pulsed Laser
パルス幅: 5ns
冷却方法: Water cooled (portable chiller available as an option)

< Optical Characteristics >
Operation mode: Pulsed
Average power: 10 W, 20 W, 30 W, 50 W
Pulse repetition: 100 kHz, 200 kHz, 300 kHz, 500 kHz
Beam quality, M2: < 1.2
Output power stability: Within ±5%
Spectral linewidth: < 0.01 nm (single frequency available)
Output delivery: Collimated output beam
(For custom requirements, please contact AdValue Photonics)

< General Characteristics >
Operating temperature: +10 to +30 ˚C
Storage temperature: +5 to +70 ˚C
Power requirement: AC 100~240 V (50/60Hz) (operating with AdValue Photonics Control Unit)
Warm-up time: 10 minutes

< Features >
・Nanosecond pulses
・High pulse energy and peak power
・High repetition rate capability
・Near diffraction limited beam quality
・Rugged OEM package and compact size

< Applications >
・Cutting, drilling and scribing (glass, silicon, ceramics, flexible circuits)
・Thin film patterning (metal, thin film solar cells)
・Marking (glass, silicon, ceramics, metals, plastics)
