型番：　メーカー：m2k-laser GmbH (COHERENT / DILAS)　商品コード：L002399

1 Watt Laser, 1870nm

1 Watt Laser, 1870nm
1 Watt Laser, 1870nm
1 Watt Laser, 1870nm
1 Watt Laser, 1870nm

波長: 1870nm-1870nm
出力: 1000mW-1000mW
パッケージ: c-mount
テクノロジー: n/a

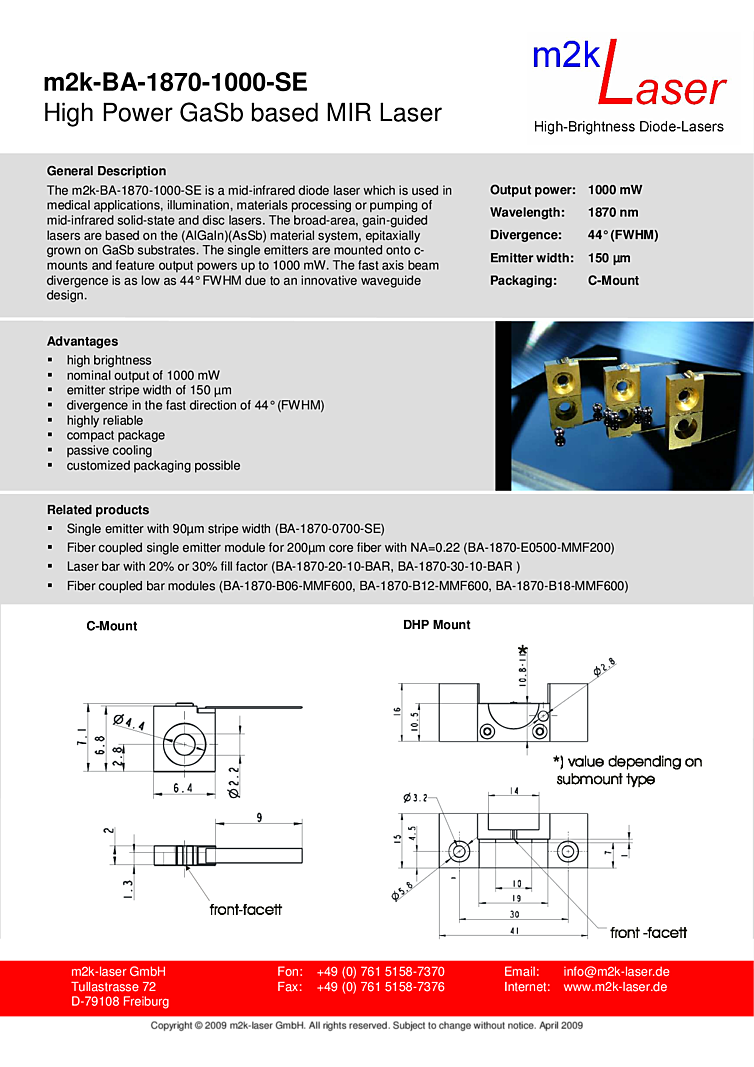

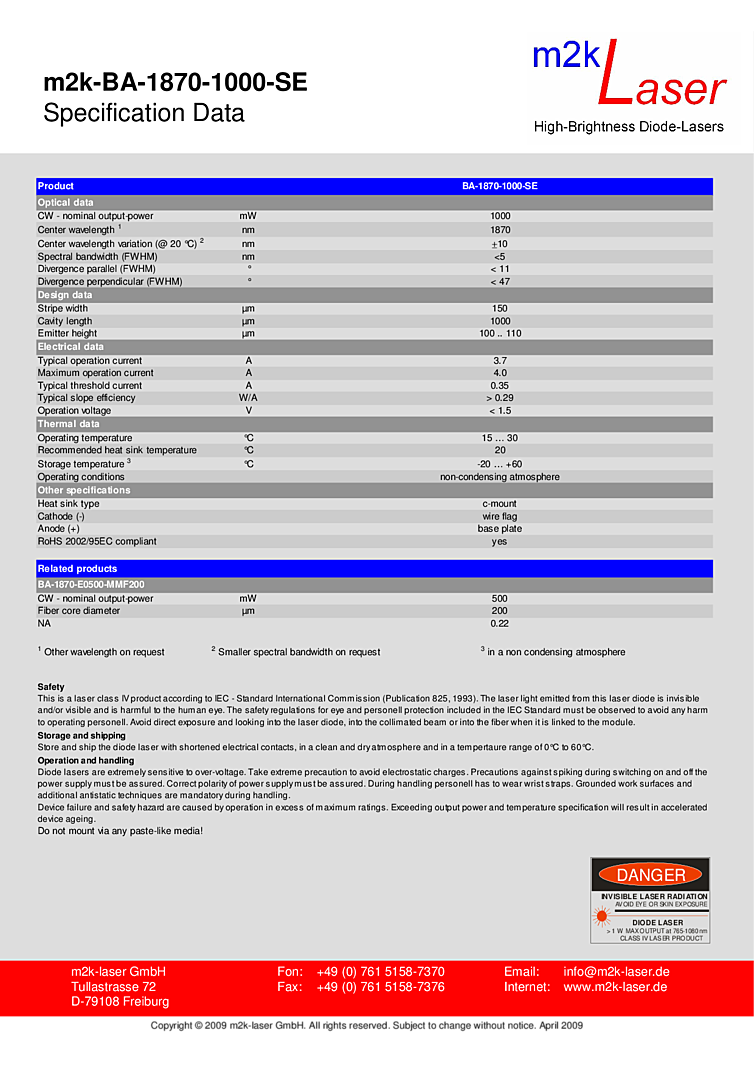

1870nm is a 1 Watt laser in a c-mount package from M2K lasers. These single emitters are mounted onto c-mounts and feature output powers up to 1 Watt. The attached data sheet details the following key features and key specifications and applications. The fast axis beam divergence is as low as 44° FWHM due to an innovative waveguide design. Output power is specified at 1W and the center wavelength is listed at 1870nm. The laser emitter width is listed at 150 microns. These 1 watt devices are packed in C-mounts. The is a mid-infrared diode laser which is used in medical applications as well as, illumination, materials processing or pumping of mid-infrared solid-state and disc lasers. These devices are broad-area, gain-guided lasers. These single emitters are mounted onto and feature output powers up to 1000 mW / 1 watt.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 株式会社ブルーアロー(high-brightness TA, TAL products)
要問い合わせ 株式会社ルクスレイ(DILAS High-Power Products)
