波長: 1530nm-1565nm
出力: 20mW-20mW
パッケージ: Butterfly
テクノロジー: Narrow Linewidth Laser, ECL

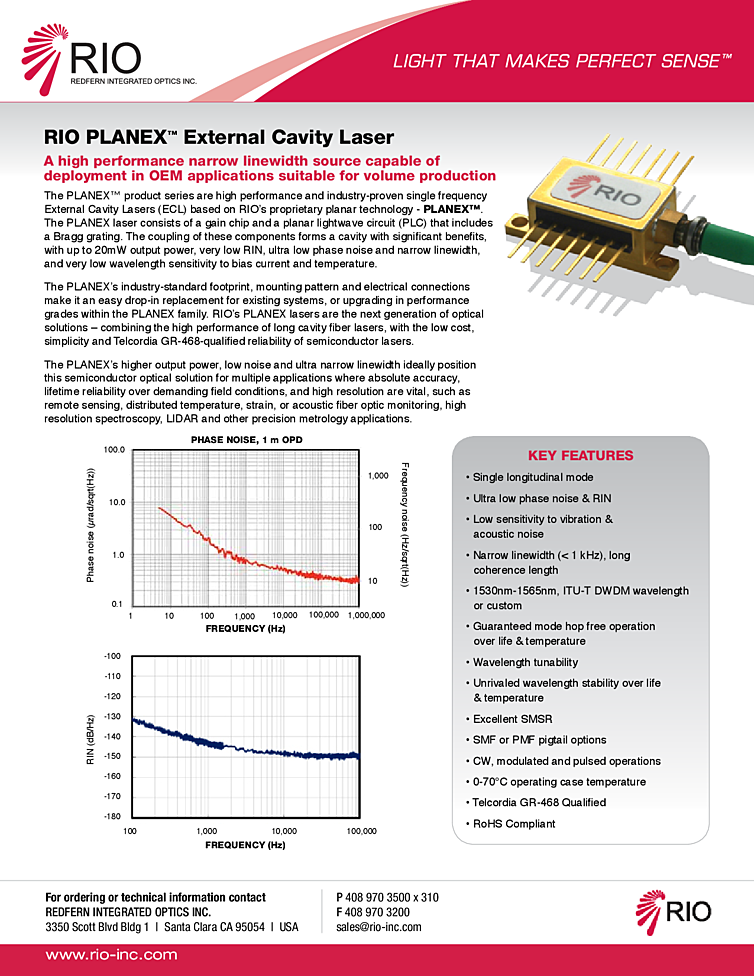

1530nm-1565nm RIO PLANEX™ External Cavity Laser: The PLANEX™ product series are high performance and industry-proven single frequency External Cavity Lasers (ECL) based on RIO’s proprietary planar technology - PLANEX™. The PLANEX laser consists of a gain chip and a planar lightwave circuit (PLC) that includes a Bragg grating. The coupling of these components forms a cavity with significant benefits, with up to 20mW output power, very low RIN, ultra low phase noise and narrow linewidth, and very low wavelength sensitivity to bias current and temperature. The PLANEX’s industry-standard footprint, mounting pattern and electrical connections make it an easy drop-in replacement for existing systems, or upgrading in performance grades within the PLANEX family. RIO’s PLANEX lasers are the next generation of optical solutions – combining the high performance of long cavity fiber lasers, with the low cost, simplicity and Telcordia GR-468-qualified reliability of semiconductor lasers.
The PLANEX’s higher output power, low noise and ultra narrow linewidth ideally position this semiconductor optical solution for multiple applications where absolute accuracy, lifetime reliability over demanding field conditions, and high resolution are vital, such as remote sensing, distributed temperature, strain, or acoustic fiber optic monitoring, high resolution spectroscopy, LIDAR and other precision metrology applications.
